IBC-Approved Modular Office Building Unit (MOBU)
Part Number: SB3645.9.LBMO-2

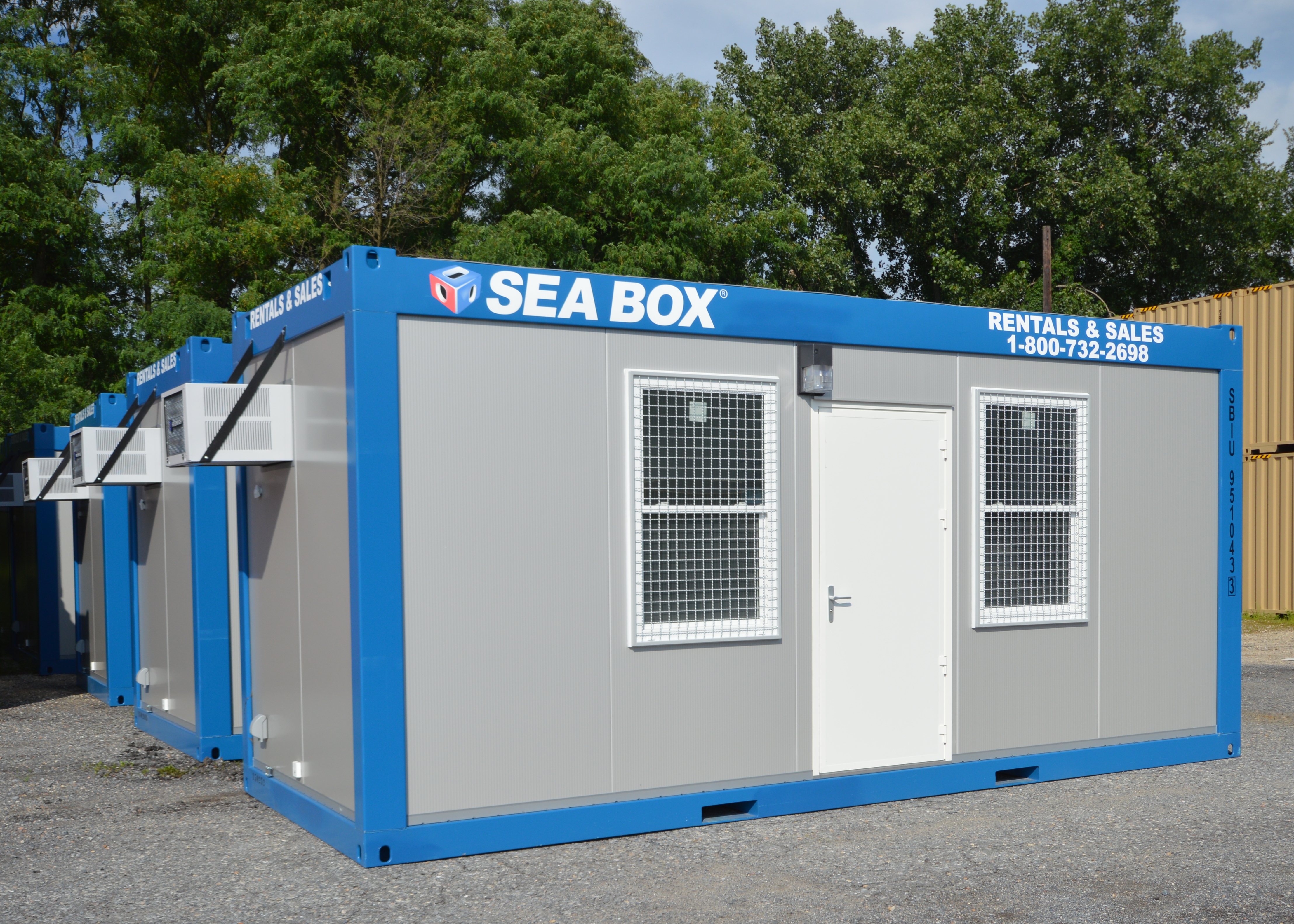

Meet all your temporary and long term auxiliary office building needs. The MOBU is a turnkey, IBC-compliant, modular system that provides the ultimate in durability and speed. The MOBU can be used as a stand-alone 20' L x 8' W x 9.5' H module, or several MOBUs can be grouped and stacked together to create larger complexes. The applications for the MOBU and MOBU complex are virtually limitless.
SB3645.9.LBMO-2 Brochure

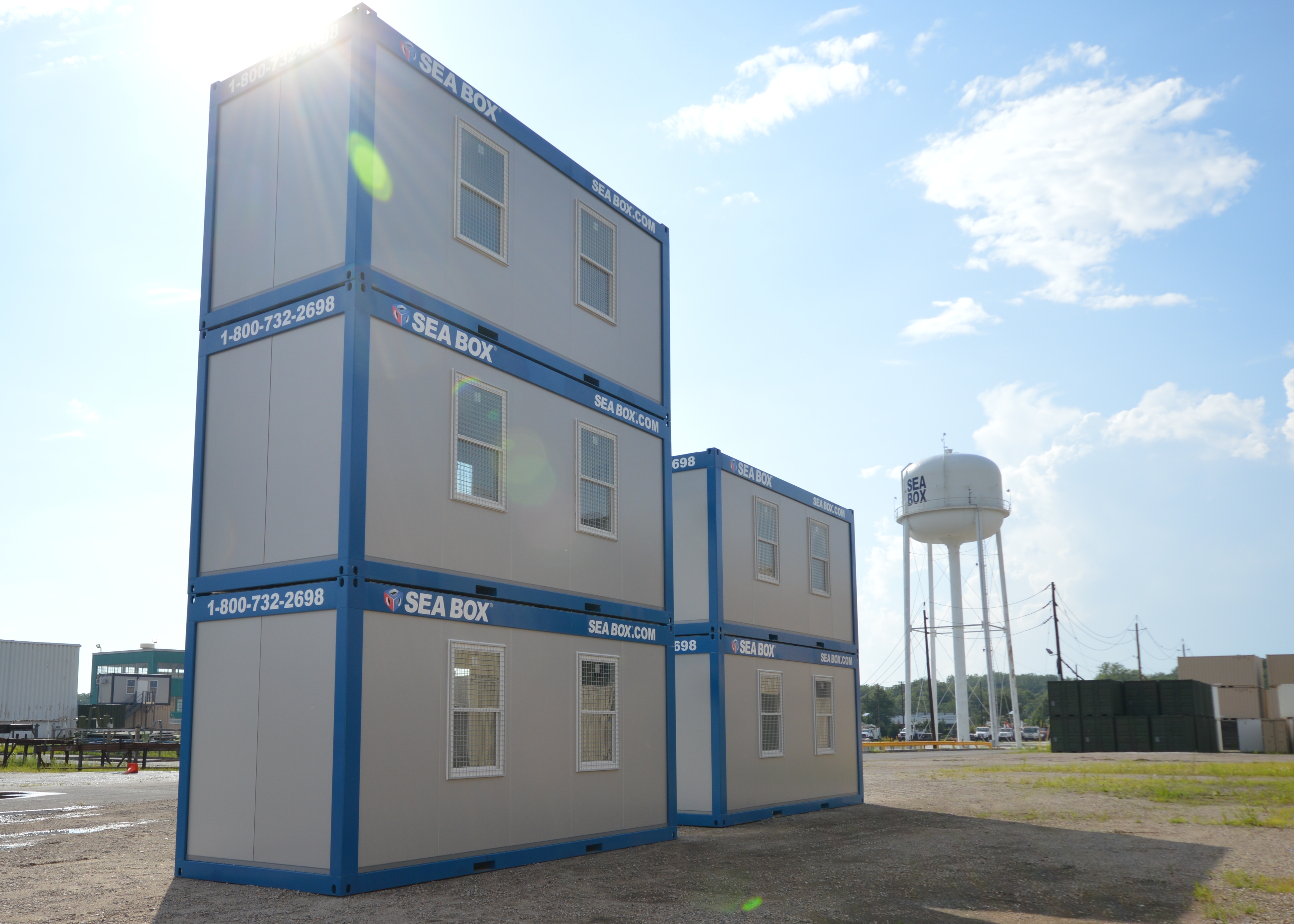

- Can be connected to create larger complexes in multi-story configurations up to 3 modules high
- Heavy duty 4” cold-formed steel frame
- Heavy gauge .5mm steel sheathing
- Corrugated steel roof rated for 60LB/SF snowloads
- 4” mineral wool insulation
- IBC 2018 Compliant
- Type II B Noncombustible
- Rated for 150 mph winds
- Conforms to ASCE/SEI 7-16
- Integrated data ports
- Rated to Seismic Design Category D
- (1) set of standard forklift pockets
- (2) Tilt & turn windows, 48” x 32”
- (1) External door, 78.50” x 33.25” opening
- Can be transported on flatbed trucks for over the road deliveries
- Telephone/Cable Components - (1) RJ45 receptacles
- (1) HVAC door, 16.25” x 26”
- 7 day programable thermostat
- NEC Compliant Electrical System (120/240 volt, single phase; 2-surface mounted 4’ long lighting fixtures; 1-quad receptacle; 2-duplex receptacles; 1-single receptacle; 1-motion sensor switch)
- Heating and Cooling Unit: 12,000/10,000 BTU (cool/heat)

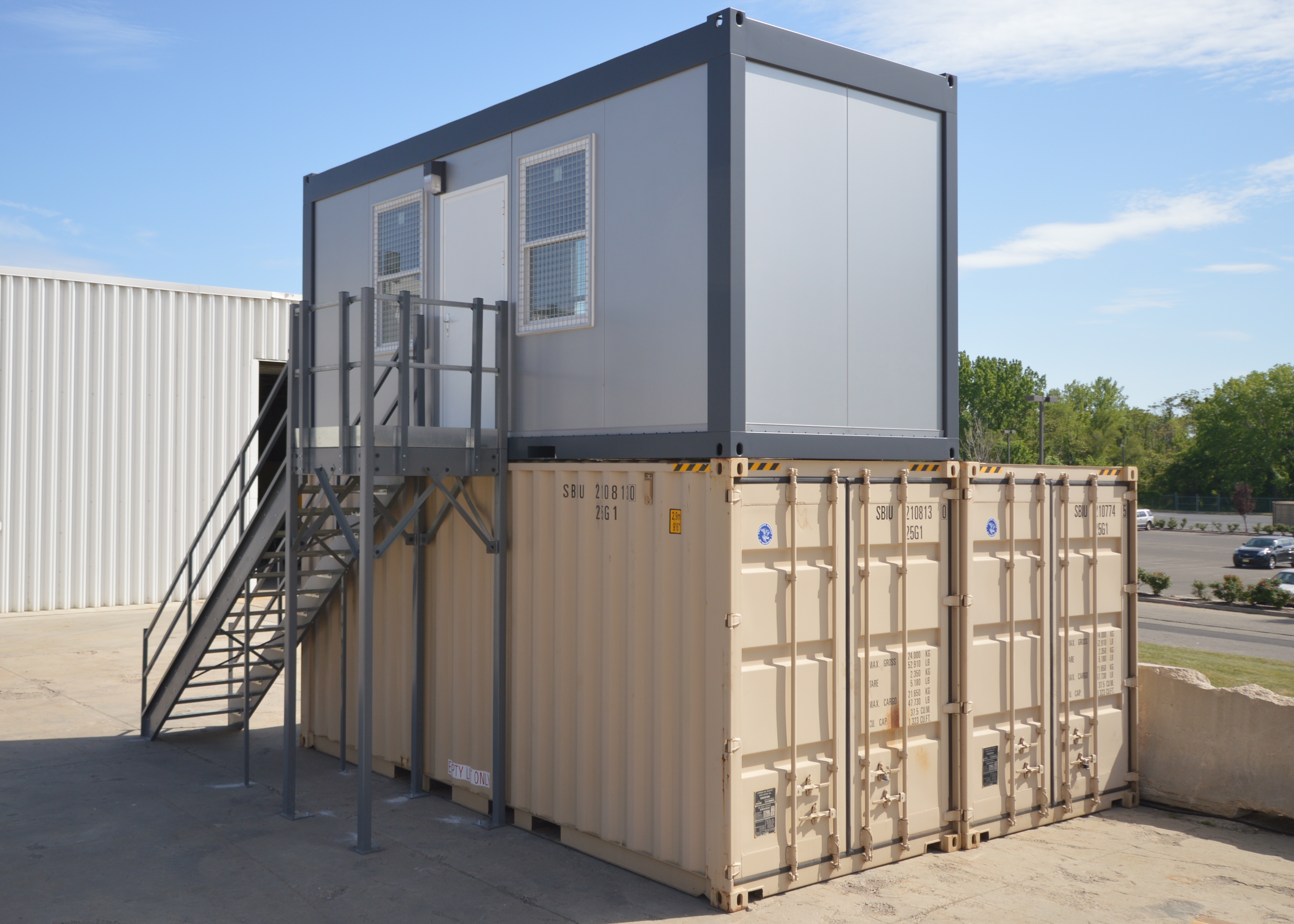

- Stairs and Platforms
- Furniture (desk, tables and chairs)
- Security Window Screens
- Steel Door, Window, Panic Bar, & Door Closer
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19' 10 1/2" | 19' | 9'6" | 8' | 8' | 7' 1" | 78.50" | 33.25" |
| Metric | 6,058 | 5,791 | 2,896 | 2,438 | 2,438 | 2,159 | 199.39 | 84.46 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 8650 lbs. | |||
| Kgs | 3924 kg. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
