Standard Features

  • Corrugated steel sides and roof
  • 14 gauge locking steel double end swing doors on both ends
  • 1 1/8” thick marine plywood floors, forklift tested to16,000 lbs. per 44 square inches
  • Wall tie down steel lashing rings, 6,000 lbs. cap. each
  • Front corner post tie downs
  • Door corner post tie downs = restraint system, shoring slotwill support 2” x 6” lumber
  • Vents, (2) each

Optional Features

  • Manifest box, (2) each
  • Adjustable shelving brackets, (12) sets
  • Decking and shoring beams, (36) each

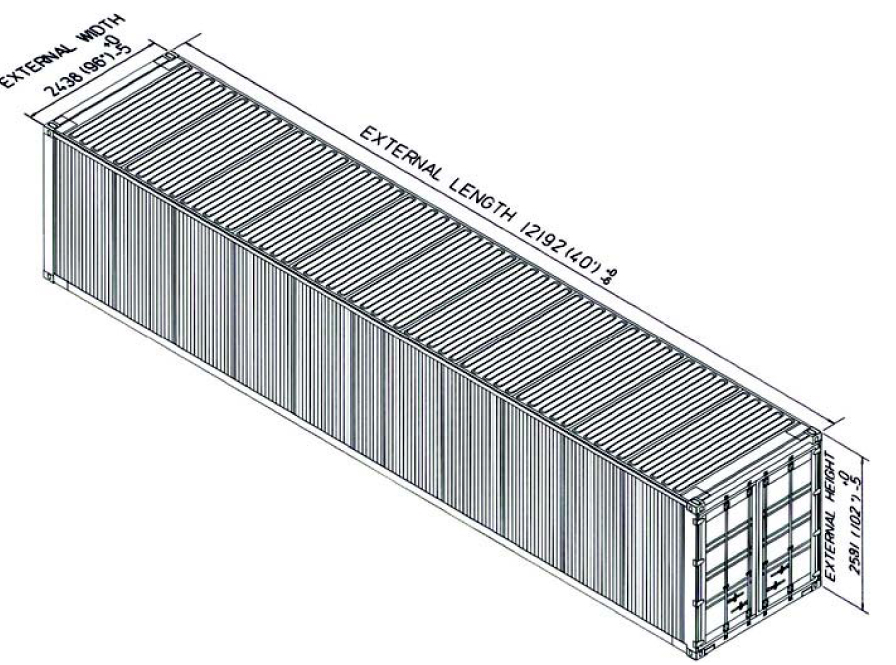

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 40’ 0” 39’ 5 3/4” 9’ 6” 8' 10 1/16” 8’ 0” 7' 8 1/2” 8’ 5 3/4” 7’ 8 1/16”
Metric 12,192 12,033 2,896 2,694 2,438 2,438 2,585 2,338
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 8,930 58,270 67,200 2,690 cu. ft.
Kgs 4,050 26,430 30,480 76.2 cu. m.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
