20’ ISO Domino Type (10) Collapsible Flatrack
Part Number: SB47102
Type: ICorrugated Walls Fold on Floor

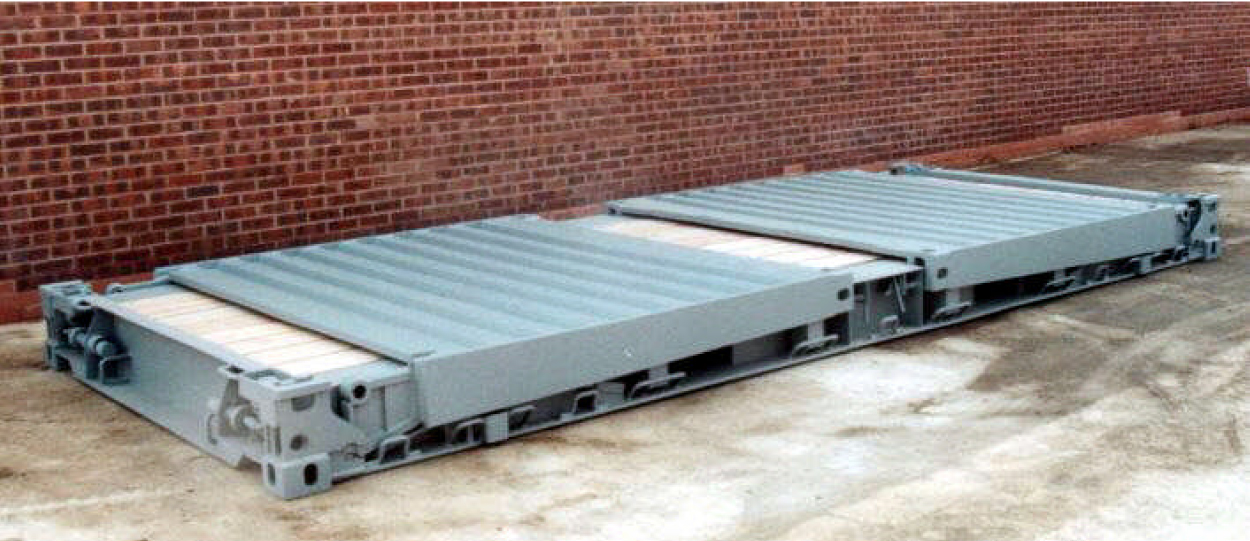

This flatrack benefits from a full width cargo deck, platform flat use when folded and high cube. In the commercial market it is a popular model. The corrugated steel end walls lie directly on top of the floor to become load bearing. Thus it can be used as a platform flat for long cargo such as pipes or sawn timber. Internal height is better than a Type (4) and seven units fold into 8' 6". The end walls are removable and can be laid for use as a loading ramp for tyred vehicles up to 1.5 tonne axle load. The tare weight is low and the payload can be increased to high level making this a highly versatile workhorse.
SB47102 Brochure
- Use an occasional platform flat when folded
- Full width cargo deck
- Floor clear of recess over full length
- Removable end walls for vehicle loading
- End walls can be laid at loading ramps
- Spare parts available worldwide
- Commonly available
- Seven units fold into 8’ 6”
- 9 high stacking at 24,000 Kgs
- External Folded Dimentions: 1’ 2 1/2”/370
- TYPICAL LASHING AND INTERFACING
- Stanchions: 4 sockets per side size 85mm
- Lashing bars: 8 x 5000kg per side, 2 per end
- Floor: 45mm softwood planks 6mm gaps
- Fork pockets: 115 x 360mm
- Twistlocks: 1 piece forged lift element, 30 degree stainless steel detent
- Header locks: 2 per end semi-automatic
- Corner locking: hammer locked conical pin
- Counterbalancing: leaf spring
- Removable ends: optional use as ramps
- Approvals: ABS, LRS, BV, UIC, CSC, TCT
- Internal Dimensions: Wall Panel to Panel: 19’ 6 23/32”/5,962, Post to Post: 18’ 3 39/64”/5,578, Platform Width: 7’ 8 53/64”/2,358, Height at Post: 7’ 5 1/2”/2,270
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19’ 10 1/2” | 8’ 6” | 8’ 0” | |||||
| Metric | 6,058 | 2,591 | 2,438 | |||||
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 6,060 | 68,890 | 74,960/ Load Over 2m: 44,092 | |
| Kgs | 2,750 | 31,250 | 34,000/ Load Over 2m: 20,000 |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
