40’ ISO Flatrack Domino Type (5) with Open Goal Post End Frames
Part Number: SB4754
Type: Iwith Open Goal Post End Frames
A heavy duty flatrack where the end walls fold flush with the floor. Four units fold into 8ft6in. This is one of 20 patent designs exclusive to CSA licensees. It features a ‘goal’ post end comprising an open frame to enable its use with certain cargo projecting through the ends. The flat can be used as a bolster when the end frames are folded flush with the floor. A special feature of the Type (5) (and (4)) is the lashing beams which are unique to CSA flatracks and are essential for the Type (5) because of the need for additional longitudinal cargo securing.
SB4754 Brochure
- End frame folding flush with the floor
- 50 ton gross or more
- Lashing beams set into the floor
- Removable end frame for vehicle loading
- Spare parts available worldwide
- Commonly and readily available for leasing

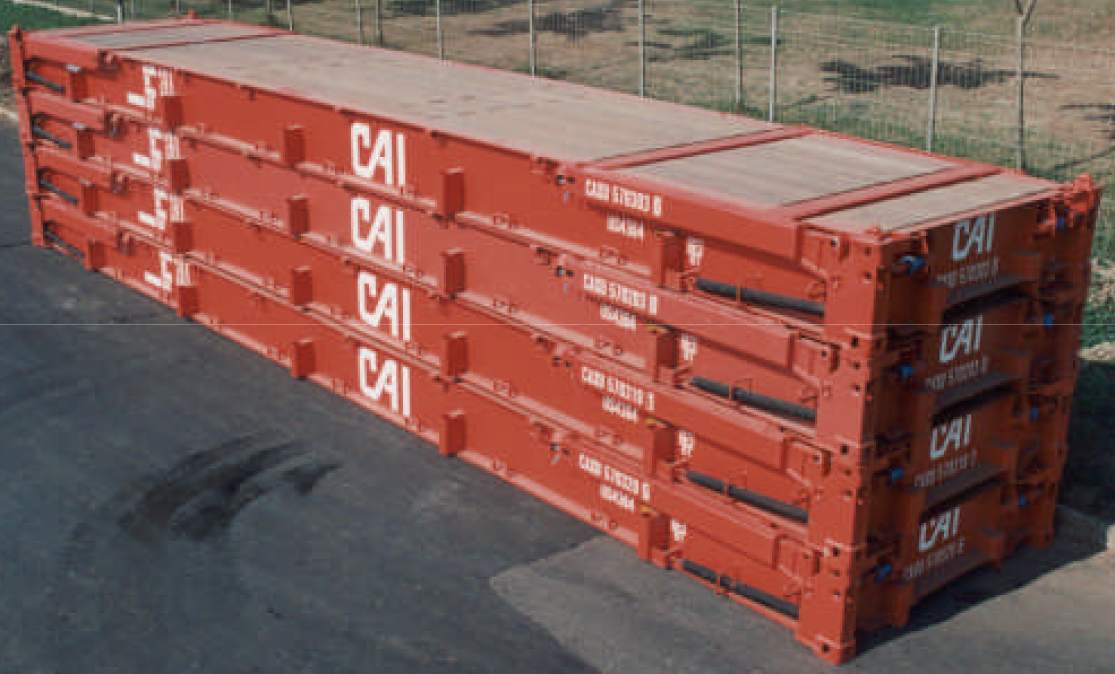

- Four units fold into 8’ 6”
- 7 high stacking at 30,480 Kgs
- TYPICAL LASHINGS AND INTERFACING
- Stanchions: 6 sockets per side size 85mm
- Lashing bars: 12 x 5000kg per side, 2 per end
- Floor lashing beams: 4 x 2m per floor each with: 6 x 5000kg lashing bars, 8 x 2m chocking slots
- Gooseneck tunnel: both ends
- Fork pockets: 115 x 360mm
- Twistlocks: 1 piece forged lift element, 30 degree stainless steel detent
- Header locks: 2 per end semi-automatic
- Corner locking: hammer locked conical pin
- Counterbalancing: leaf spring or coil
- Removable ends: optional use as ramps
- Floor: 45mm softwood planks, 6mm gaps
- Approvals: ABS, LRS, BV, UIC, CSC, TCT
- Sling lift points
- Post extensions
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 50,000 | 8’ 6” | 8’ 0” | |||||
| Metric | 12,192 | 2,591 | 2,438 | |||||
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 10,800 | 99,430 | 110,230 | |
| Kgs | 4,900 | 45,100 | 50,000 |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
