Standard Features

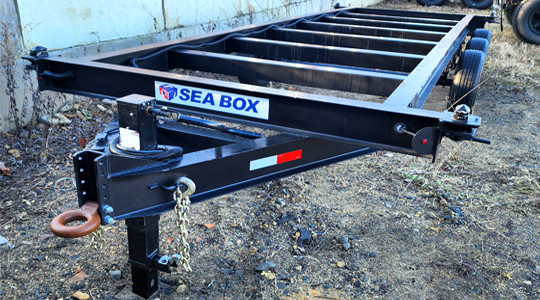

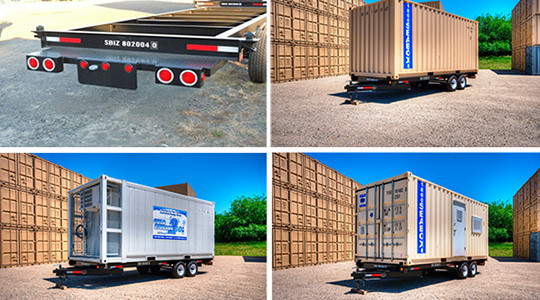

  • Designed to carry one standard 20’ ISO Container, 20’ Box Office, or a 20’ Cold Storage 2 Go reefer
  • (3) Axles, rated at 5,200 lbs. each
  • 225/75R15 2600 lbs. D Rated Tires
  • Coupler rated at 12,500 lbs.
  • Jack rated at 12,500 lbs.
  • Towing vehicle capacity: 15,600 lbs.
  • (4) Heavy duty twistlocks
  • 23” rear step
  • 2 5/16” Ball hitch
  • Loading capacity not to exceed GVW

Optional Features

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in Length (Chassis) 24’ 9” Length (Deck) 19’ 10 1/2” 2’ 10” 8’ 0”
Metric Length (Chassis) 7,544 Length (Deck) 6,058 863 2,438 2,438
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 2,420lbs. 15,600lbs./5,200 lbs.
Kgs 1,098 kg. 7,076 kg./2359 kg.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
