Tricon Refrigerated ISO Container
Part Number: SB531.0
NSN: 4130015657655
Type: IRefrigerated ISO Cargo Container. Single Swing doors.
SB531.0 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Smooth Steel sides, roof + single swing door

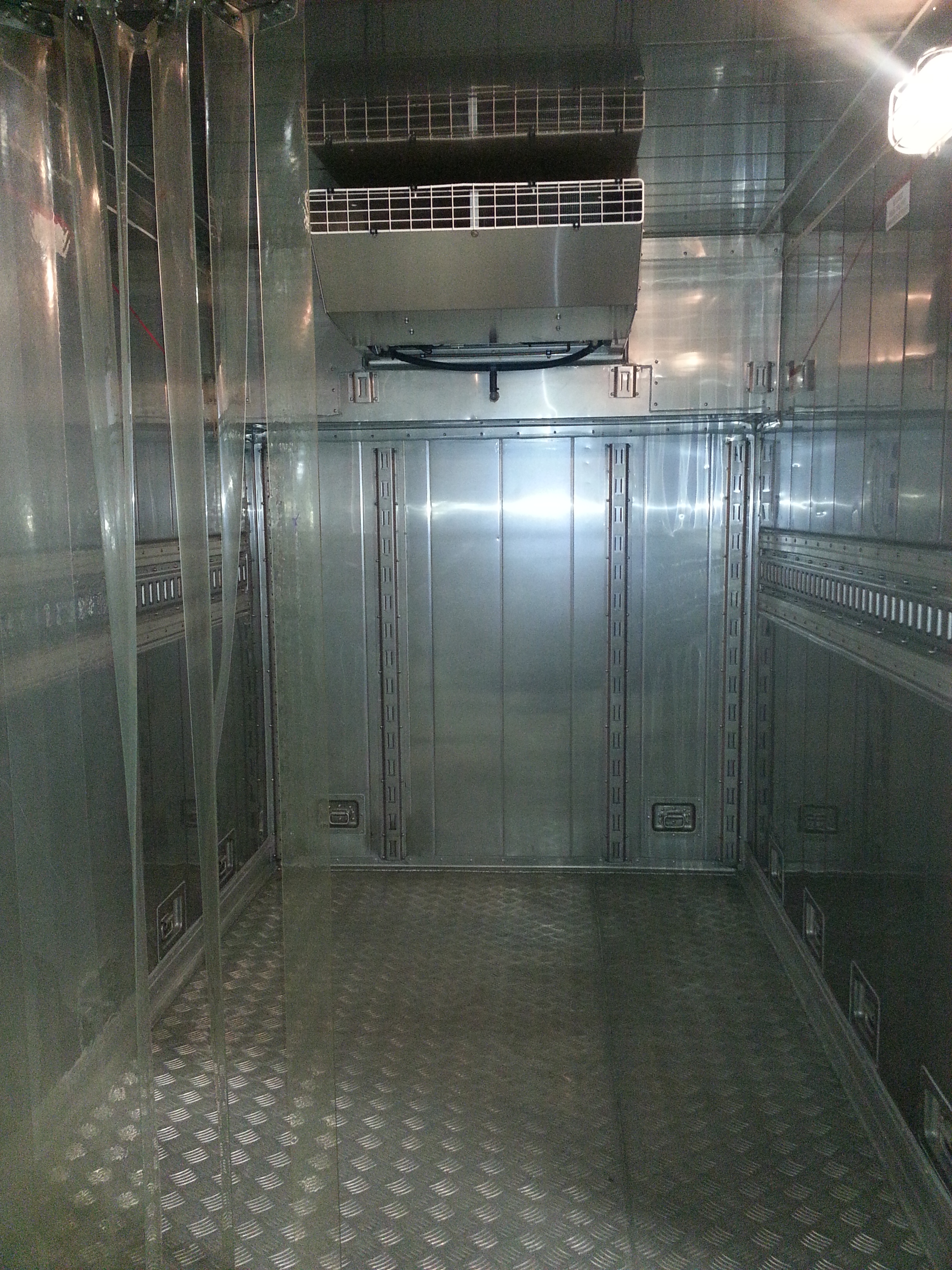

- Stainless Steel lining
- Heavy duty tread plate aluminum floor
- Four way fork lift pockets
- Thermo King VM405 Refrigeration Unit
- 25ft power cable
- Fully adjustable shelving “A” tracks, fully recessed into the walls
- Connecting couplers, (3) per Tricon
- Connecting coupler storage bracket (1) each
- Manifest box (2) each
- SS shelving (8) pieces, open wire design
- SS decking and shoring beams (16) each
- Spare parts kit
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 6’ 5 1/2” | 6’ 3/4” | 8’ 0” | 7’ 7/8” | 8’ 0” | 7’ 5 3/16” | 6’ | 2’ 6” |
| Metric | 1,969 | 1,848 | 2,438 | 2,156 | 2,438 | 2,265 | 1,829 | 762 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 3,360 | 14,277 | 17,637 | 282 Cu. Ft. |
| Kgs | 1,524 | 6,476 | 8,129 | 8.0 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
Related Products

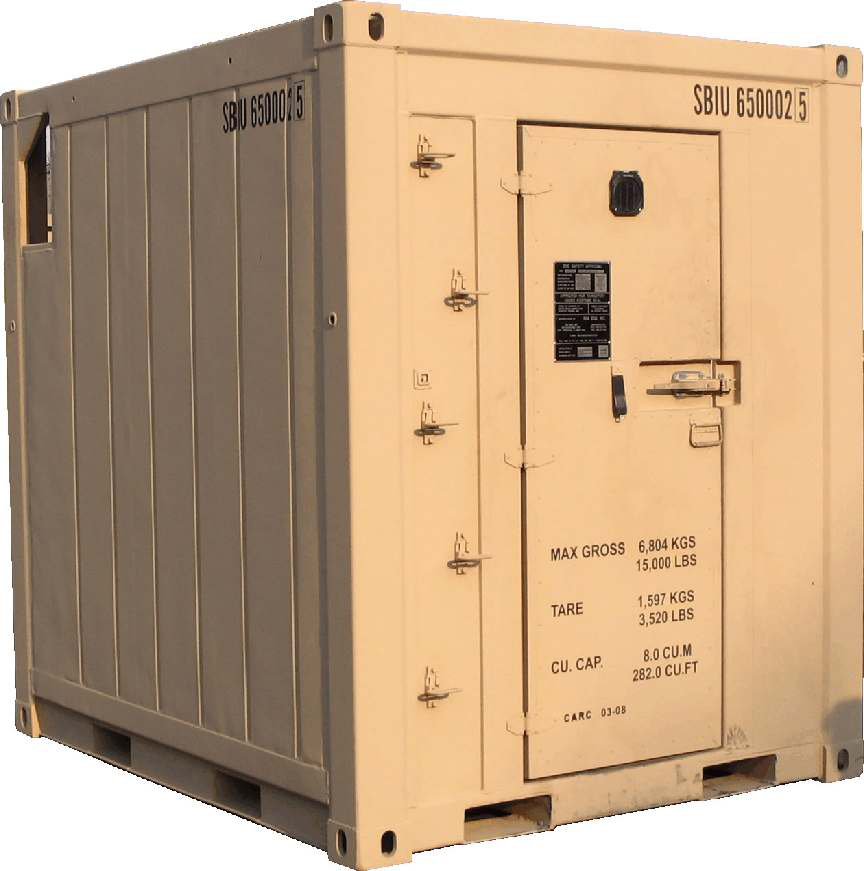

Tricon Refrigerated ISO Container - Small Field Refrigerated System (SFRS) (SB531.0.SFRS)
