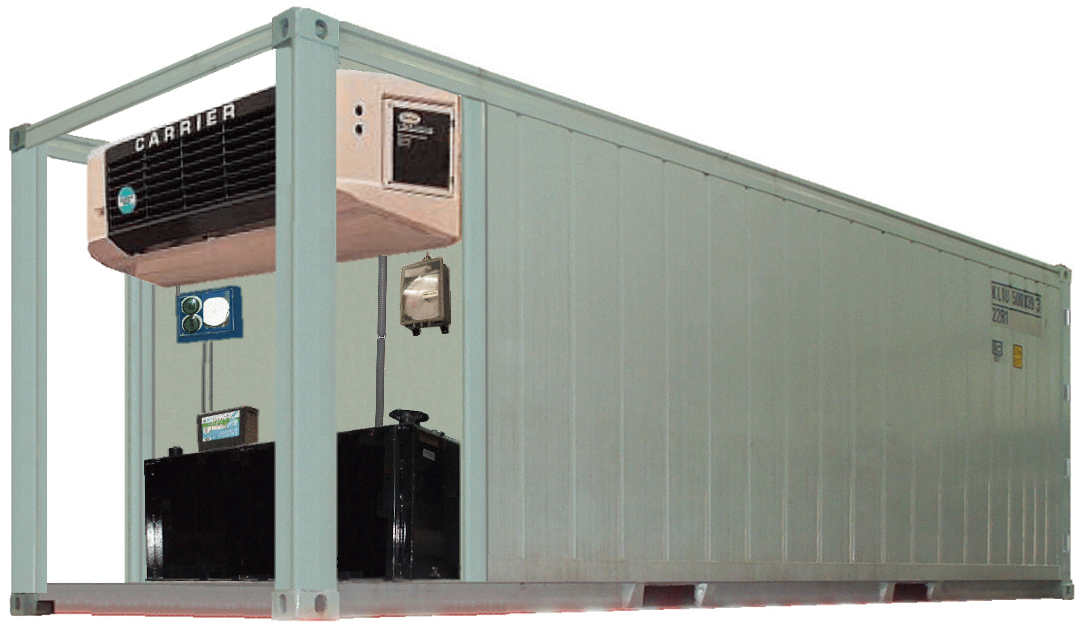

20’ x 8’ Diesel/Electric Refrigerated ISO Container
Part Number: SB535.0
Type: IDouble doors on one End.
SB535.0 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Aluminum, steel or sides
- Double full opening swing doors on one end
- Forklift pockets (on some 20' units)
- Aluminum T-grade floors
- Most refrigerated machinery features electrical supply as follows: 208/230, 380/460 Volts AC, 3 phase, 50 or 60 cycle
- Temperature range from -20°F to 70°F
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19' 10 1/2" | 18’ 2 1/2” | 8’ 0” | 6' 10 1/2" | 8’ 0” | 7' 4" | 6' 10 1/2" | 7' 4" |
| Metric | 6,058 | 5,550 | 2,438 | 2,096 | 2,438 | 2,235 | 2,096 | 2,235 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 5,970 | 61,230 | 67,200 | 918 Cu. Ft. |
| Kgs | 2,708 | 27,772 | 30,480 | 26 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
