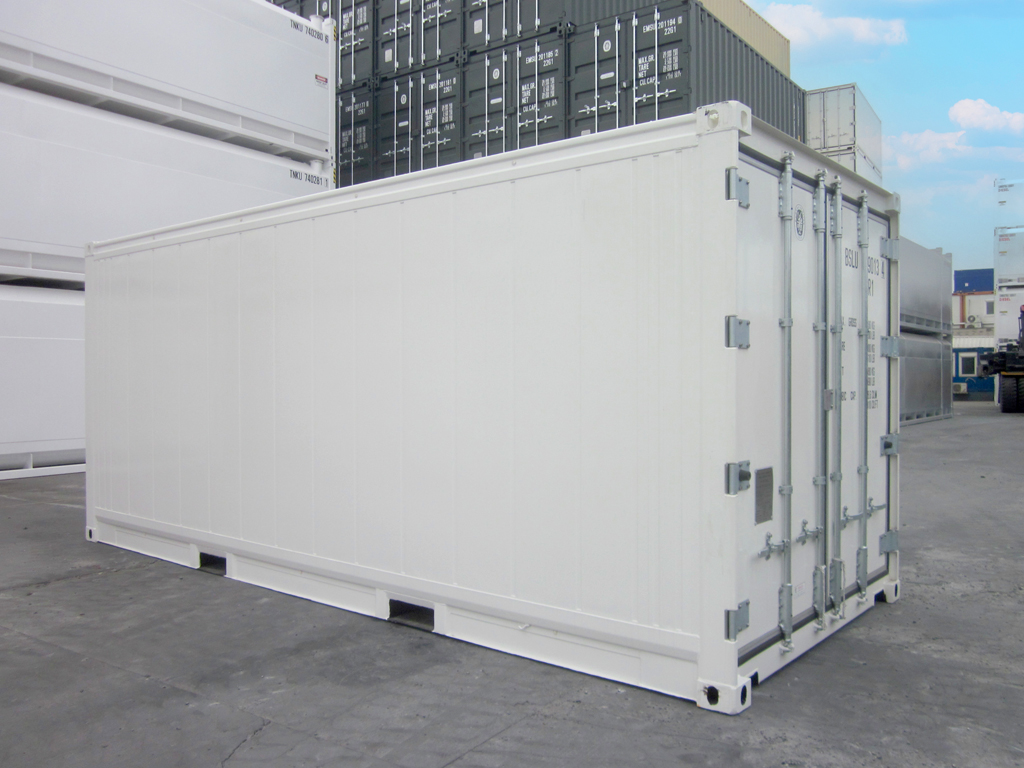

20’ x 8’6” Refrigerated ISO Container

20’ x 8’6” Refrigerated ISO Container

Part Number: SB541.6

Type: I

Our 20-ft refrigerated units are available for purchase and lease, in both new and used conditions. They are sturdy, reliable and will last you for many years. All containers come standard with adjustable thermostat, automatic defrost, stainless steel interior, aluminum T-grade floor and double swing doors. In addition to these features, we have many options available and can custom design your container to suit just about any application.

PDF BrochureTechnical Manual

PDF Brochure SB541.6 Brochure
If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • 20-ft (929 cu ft) Size
  • -10 F to 70 F Range
  • Adjustable Thermostat
  • Automatic Defrost
  • Full Opening Swing Cargo Doors
  • Aluminum T-grade Floors
  • Stainless Steel Interior
  • 3 Phase – 460V / 30Amps or 230V / 60Amps
  • Lockable Doors
  • On-site Delivery
  • Dual voltage 208/230, 380/460 Volts AC, 3 phase, 50 or 60 cycle
  • Interior light with switch
  • Panic Alarm
  • LED Lighting
  • EZ-open door with single locking bar and extended handle
  • Butcher Door
  • Side Door
  • Roll-up Door
  • Inside Release
  • Air Curtains
  • Flat Floor
  • 1/3-2/3 Doors
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19' 10 1/2” 17’ 5 1/2” 8' 6" 7’ 4 1/2” 8' 0" 7' 4" 7' 4 1/2" 7' 4"
Metric 6,058 5321 2591 2248 2438 2235 2248 2235
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 6,880 60,320 67,200 944 Cu.Ft.
Kgs 3,120 27,360 34,480 26.7 Cu.M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS

Related Products

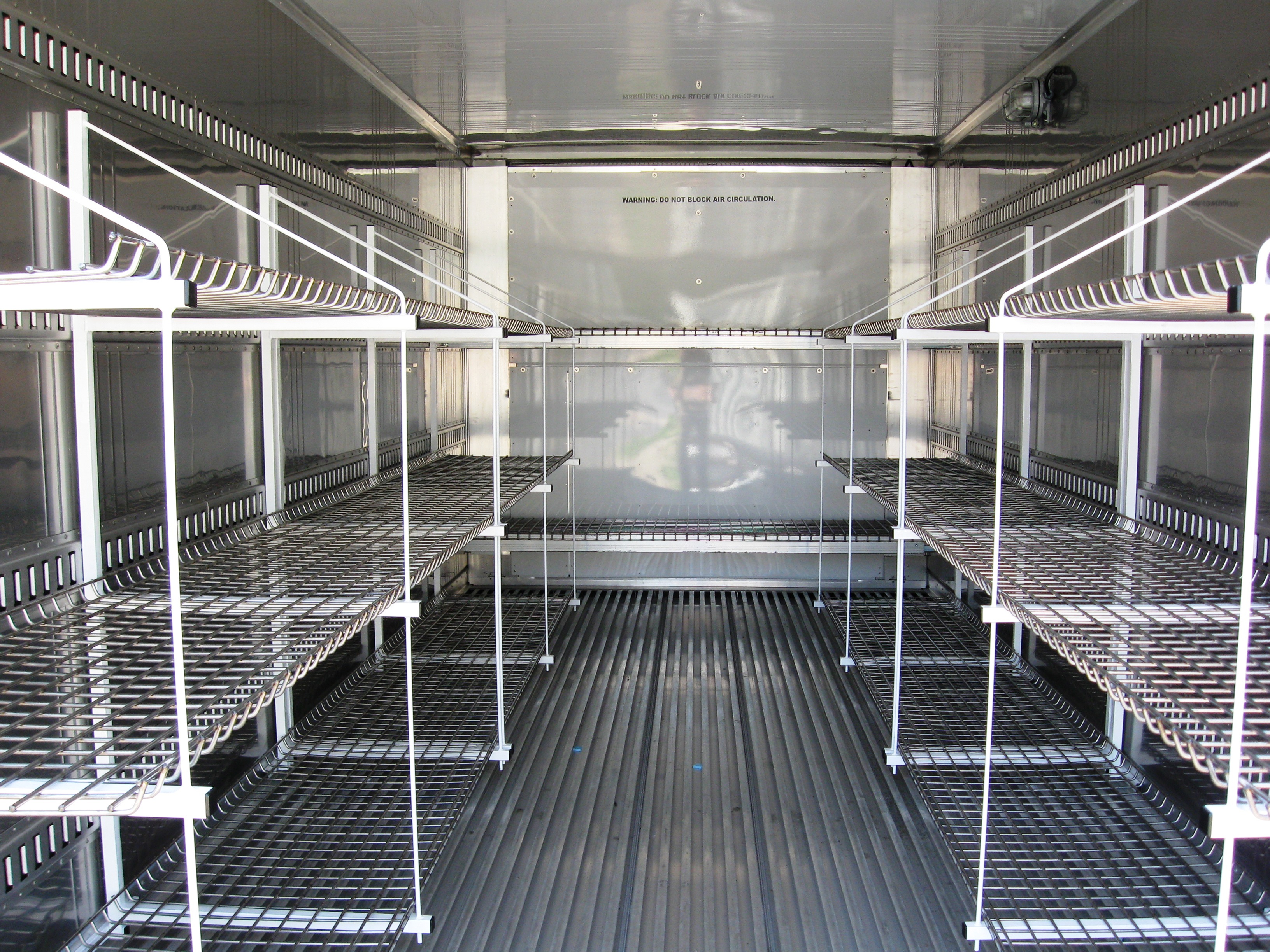

20’ x 8’6” Refrigerated ISO Container with Shelves (SB541.6.ST.FLS)
