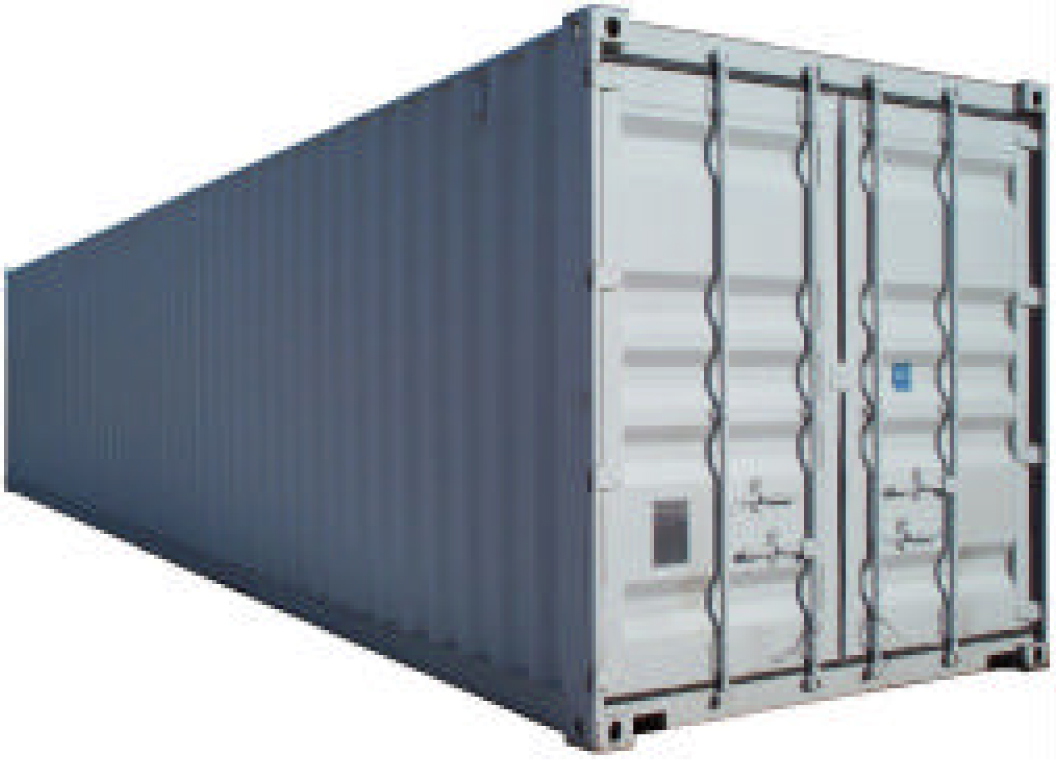

Standard Features

  • Corrugated steel sides and roof
  • 14 gauge locking steel double end swing doors
  • Tie-down steel lashing rings, 4000 lbs. cap. each
  • 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs. per 44 square inches
  • Vents, (2) each

Optional Features

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 40’ 0” 39’ 5 5/8” 8’ 6” 7’ 10 1/4” 8’ 0” 7’ 8 1/2” 7’ 5 41/64” 7’ 8 1/2”
Metric 12,192 12,030 2,591 2,394 2,438 2,438 2,277 2,350
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 12,400 54,800 67,200 2,390 Cu. Ft.
Kgs 5,623 24,857 30,480 67.7 Cu.M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
