Standard Features

  • 14 gauge corrugated steel sides
  • 14 gauge locking steel double end swing doors
  • 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
  • Tie down steel lashing rings, 4000 lbs. cap. each

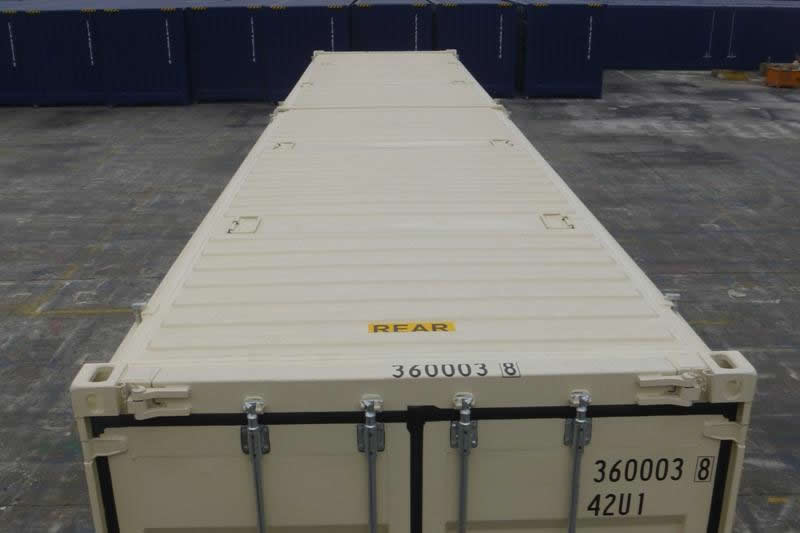

  • Removable hard lid
  • Top Opening Dimensions - Length: 38’ 11 3/8”/11,871, Width: 7’ 2 3/16”/2,189

Optional Features

  • (2) piece or (4) piece lid

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 40’ 0” 39’ 5 5/8” 8’ 6” 7’ 9 3/16” 8’ 0” 7’ 8 1/2” 7’ 5 5/8” 7’ 8 1/16”
Metric 12,192 12,030 2,591 2,367 2,438 2,438 2,277 2,338
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 10,550 56,650 67,200 1,130 Cu.Ft.
Kgs 4,785 25,695 30,480 32 Cu.M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
