Quadon ISO Container with Six-Drawer Cabinets on Each Side
Part Number: SB812.SG.CT2-6D.DLA
NSN: 8145-01-618-9284, 8150-01-618-9848
Type: Iwith 2 Cabinets Containing 6 Drawers each
one (1) cabinets with six (6) drawers. Adjustable shelving A-track sets. Double doors on both sides.
SB812.SG.CT2-6D.DLA BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides, roof, & swing doors on both sides
- Heavy duty steel floor
- Four-way fork lift pockets
- (10) Columns of vertical E-Track
- (20) Tie down rings
- - (10) bottom row and (10) top row
- (2) SB2345 aluminum manifest holders
- Data Plate with NSN & UID Label
- (3) SB2341: Horizontal twistlocks with (1) SB2342: storage bracket
- Standard Green
- CUSTOM FEATURES
- (2) Stanley Vidmar 55”W x 33”H x 28”D (6) Drawer cabinet and divided partitions
- Heavy duty cabinets with lifetime guarantee
- Drawers feature lock bar and locking mechanism to secure them in closed or open position
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

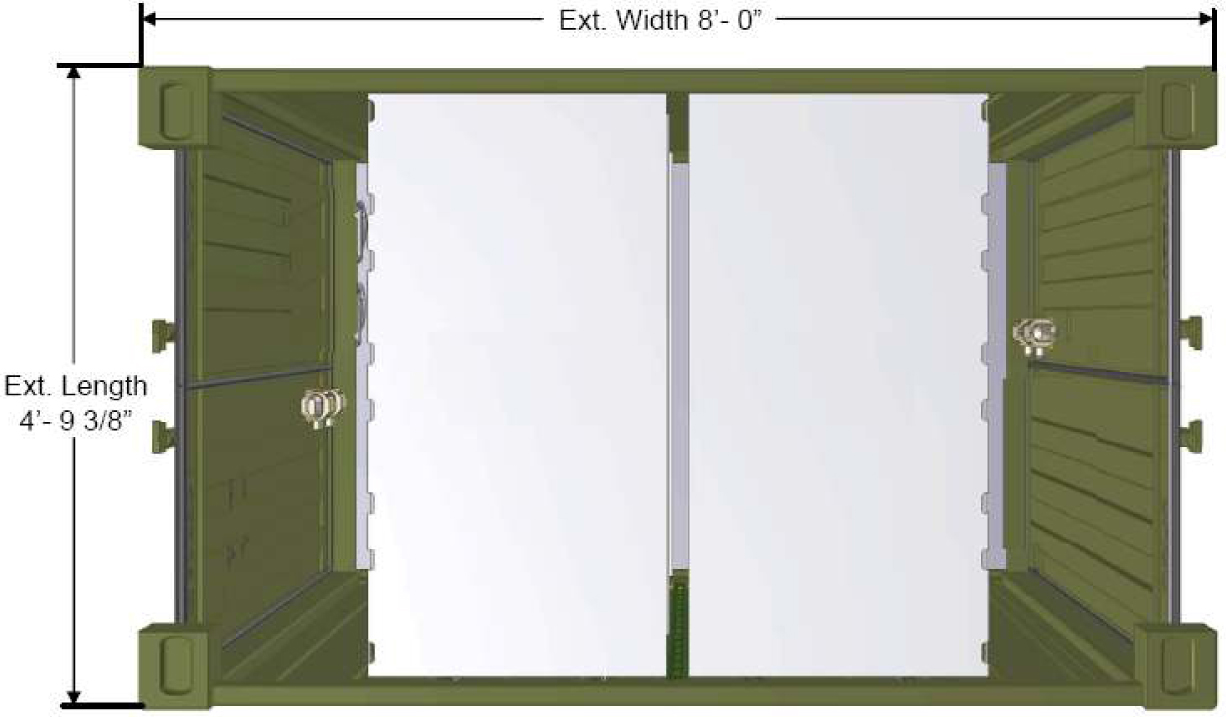

| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 4’ 9 7/16” | 4' 7 3/4" | 6' 10" | 6' 3 1/16" | 8' 0" | 7' 6 9/16" | 5' 11 3/16" | 4' 5 5/8" |
| Metric | 1,459 | 1,417 | 2,083 | 1,907 | 2,438 | 2,300 | 1,808 | 1,362 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 2,000 | 9,200 | 11,200 | 220 Cu. Ft. |
| Kgs | 907 | 4,173 | 5,080 | 6.22 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
