Tricon ISO Container (Type 1) with Cabinets and Drawers

Part Number: SB821.0.CT88D

NSN: 8150-01-619-6162, 8150-01-619-6840

Type: I

Tricon Dry Freight ISO Cargo Container

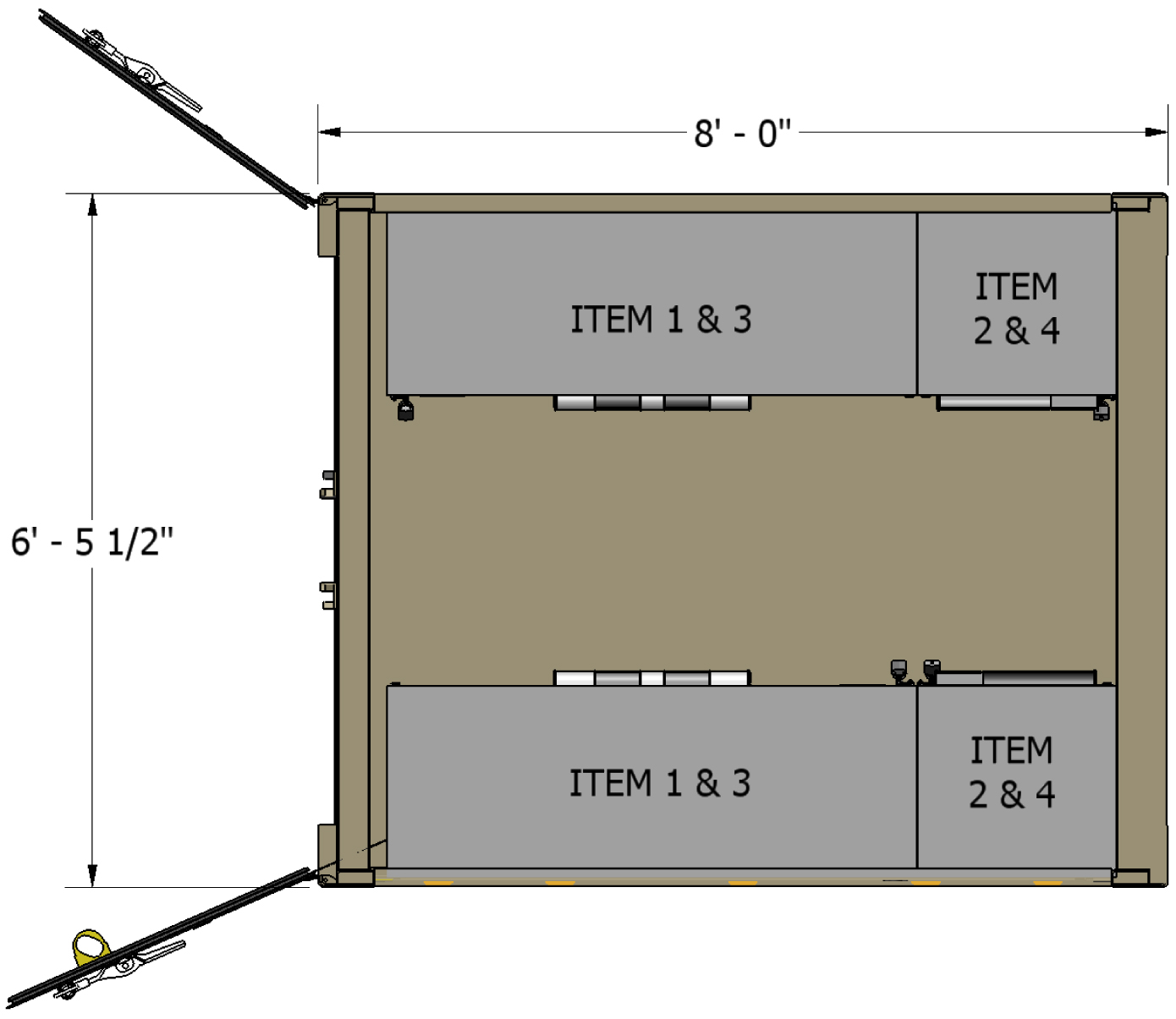

Tricon ISO Container with eight (8) cabinets , eight (8) drawers each. Double doors on one side.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • CONTAINER
  • Corrugated steel sides, roof + swing doors on (1) side
  • Heavy duty steel floor
  • (4) way fork lift pockets
  • Vents, (2) each
  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket (1) each
  • Ext. Paint Color Choice of OD Green or Standard Tan

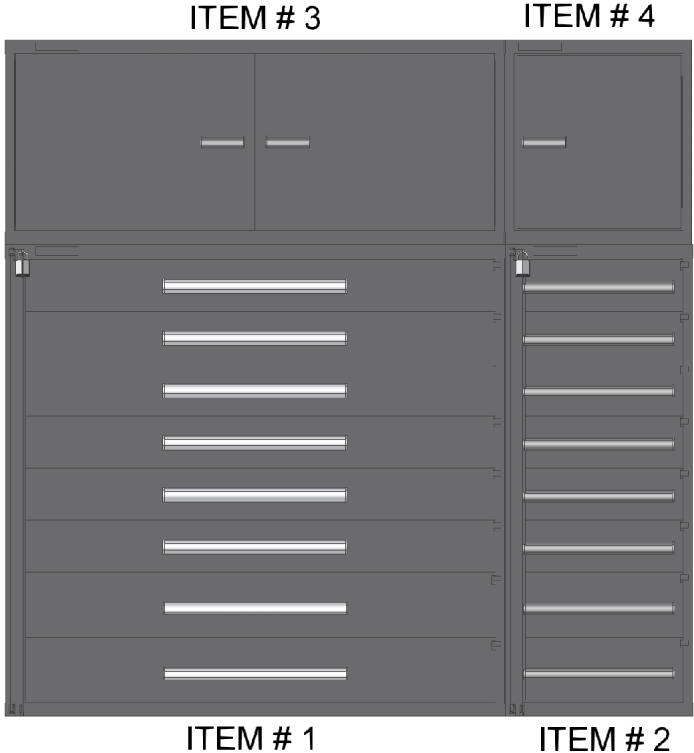

  • CABINETS
  • Featuring Stanley Vidmar Cabinets designed for mobile transport, all with LIFETIME Warranty
  • 2 each 60” Wide Base Cabinet with 16 Drawers Total
  • 2 each 22.5” Wide Base Cabinet with 16 Drawers Total
  • 2 each 22.5” Wide Top with 1 Swing Door
  • 2 each 60” Wide Top with 2 Swing Doors
  • Modular Cabinet Design for Maximum Flexibility and Interchangeability
  • 400lb. Capacity Drawers
  • Superior Quality and Construction
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6’ 5 9/16” 6’ 3 25/64” 8’ 0” 7’ 5 9/64” 8’ 0” 7’ 7 23/32” 7’ 1 43/64” 6’ 1 25/32
Metric 1970.09 1914.92 2438.4 2264.17 2438.4 2329.66 2176.07 1874.04
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 4,750 w/ cabinets 10,150 14,900
Kgs

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
