Standard Features

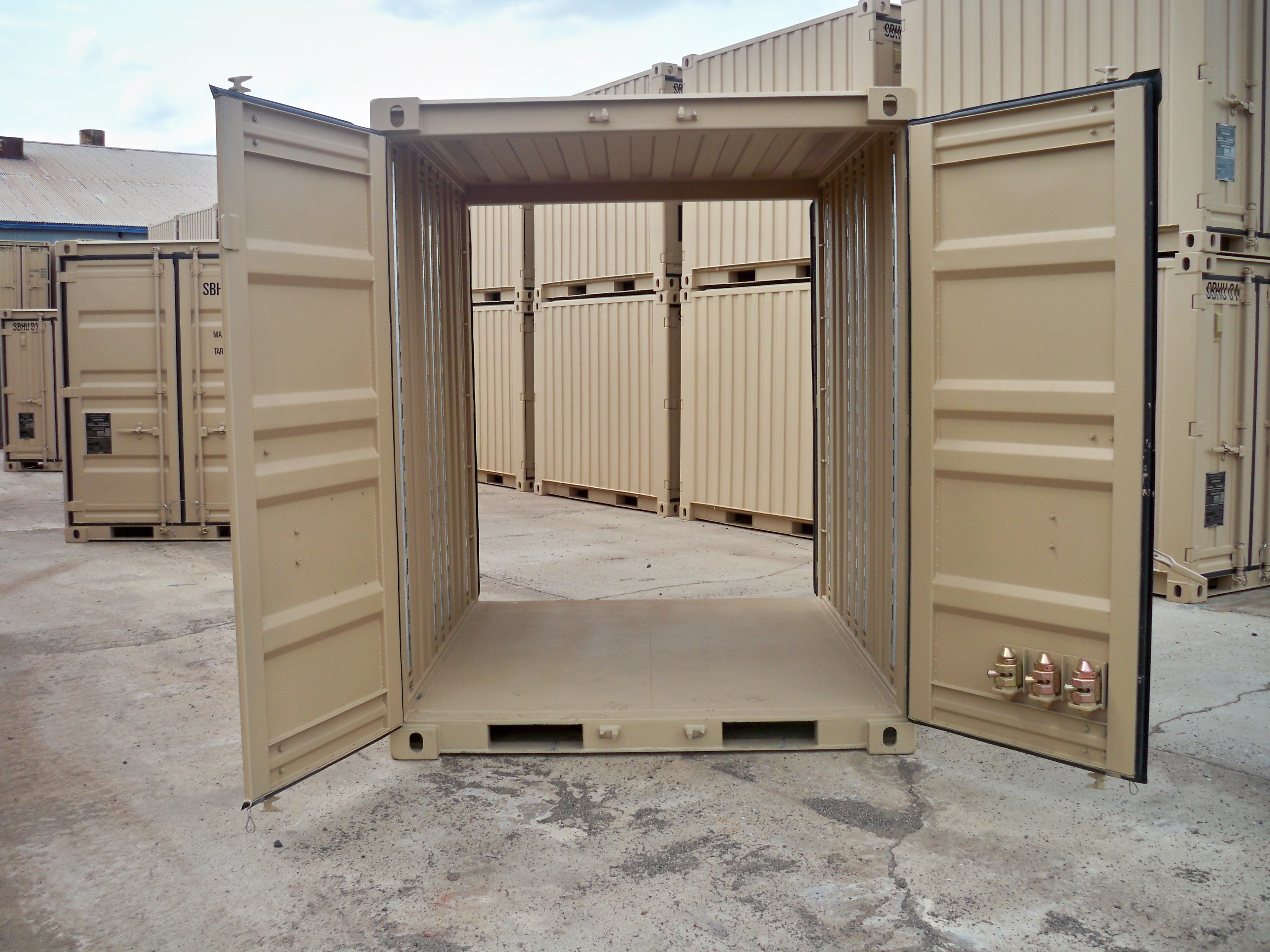

  • Corrugated steel sides, roof, and swing doors on one side
  • Heavy duty steel floor
  • Four way fork lift pockets
  • Wall tie down steel lashing rings, 4,000 lbs. cap. each (20) total
  • Door corner post tie downs, (20) total = restraint system, shoring slot will support 2” x 6” lumber
  • Vents, (2) each
  • Adjustable shelving brackets, (5) sets: (10) vertical E-Track section total
  • Exterior color OD Green # 34096
  • Interior color Sand # 33303
  • Item Unique Identification (IUID)

Optional Features

  • Decking and shoring beams, (15) each
  • Vents, (2) each, closeable type
  • Manifest box, (2) each with 1 set of Manuals
  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket, (1) each

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6’ 5 9/16” 6’ 3 25/64” 8’ 0” 7’ 5 9/64” 8’ 0” 7’ 5 17/32” 7’ 1 43/64” 6’ 1 25/32”
Metric 1,970 1,915 2,438 2,264 2,438 2,438 2,176 1,874
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 2,800 12,100 14,900 348 Cu. Ft.
Kgs 1,270 5,490 6,759 9.86 Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
