Standard Features

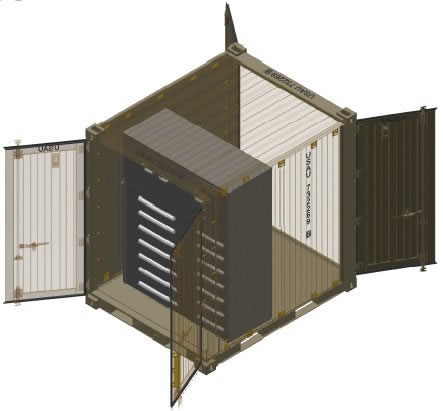

  • CONTAINER
  • Corrugated steel sides, roof + swing doors on both sides
  • Heavy duty steel floor
  • (4) way fork lift pockets
  • Vents, (2) each
  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket (1) each
  • Ext. Paint Color Choice of OD Green or Standard Tan

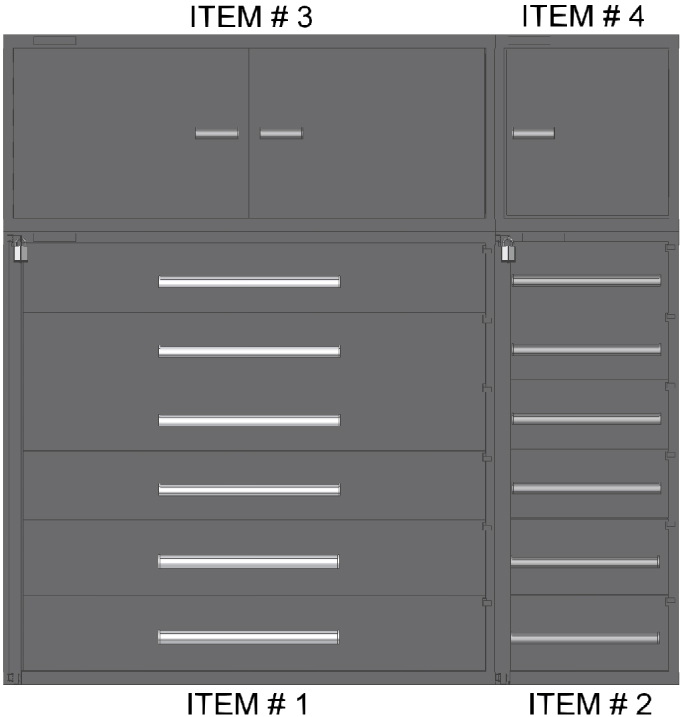

  • CABINETS
  • Featuring Stanley Vidmar Cabinets designed for mobile transport, all with LIFETIME Warranty
  • 2 each 60” Wide Base Cabinet with 12 Drawers Total
  • 2 each 22.5" Wide Base Cabinet with 12 Drawers Total
  • 2 each 22.5” Wide Top with 1 Swing Door
  • 2 each 60” Wide Top with 2 Swing Doors
  • Modular Cabinet Design for Maximum Flexibility and Interchangeability
  • 400lb. Capacity Drawers
  • Superior Quality and Construction

Optional Features

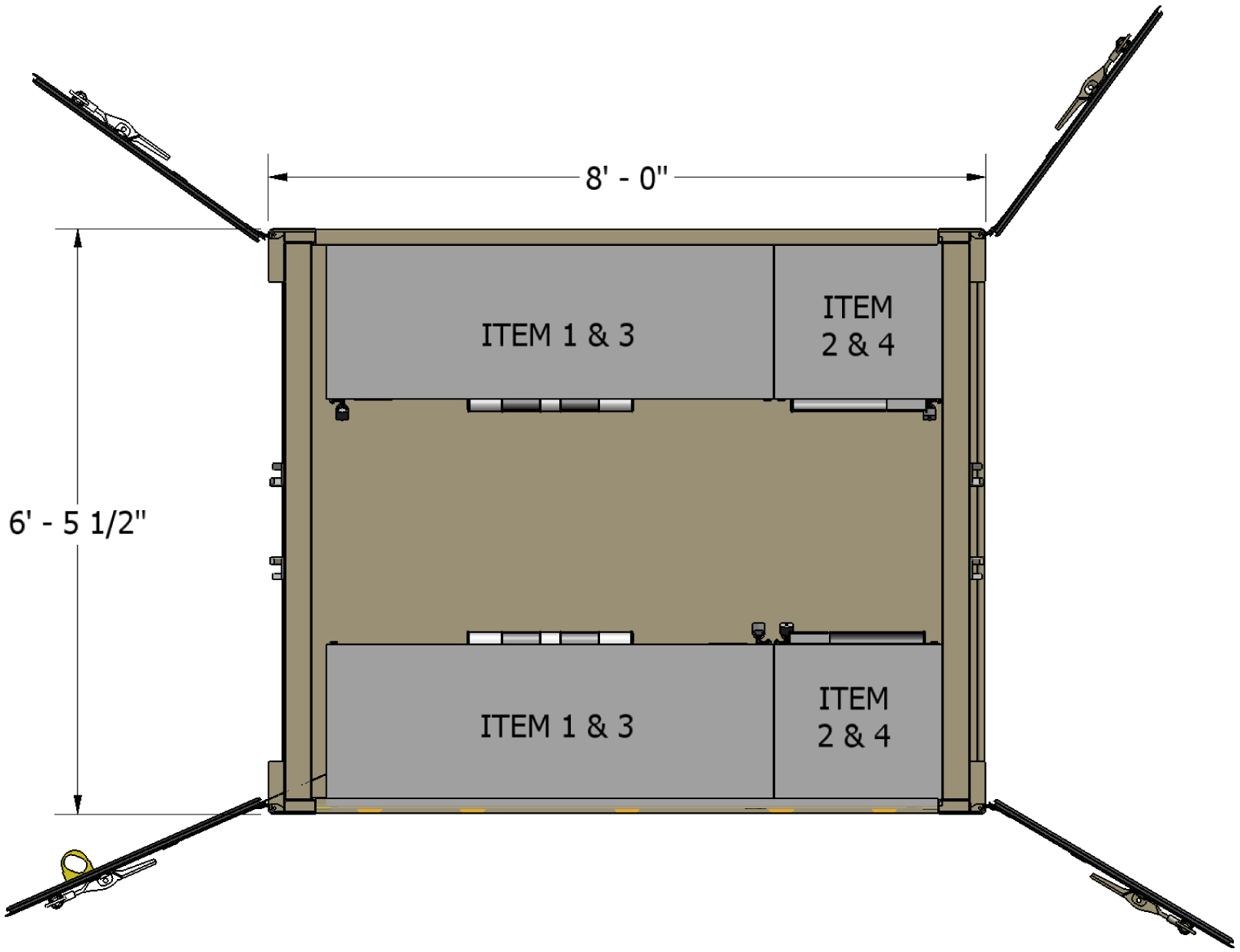

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6’ 5 9/16” 6’ 3 25/64” 8’ 0” 7’ 5 9/64” 8’ 0” 7’ 5 17/32” 7’ 1 43/64” 6’ 1 25/32”
Metric 1970.09 1914.92 2438.4 2264.17 2438.4 2438.4 2176.07 1874.04
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 4,950 w/ cabinets 9,950 14,900
Kgs 2245.28 4513.24 6758.53

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
