Tricon ISO Container (Type 2) with Cabinets and Shelf Halves
Part Number: SB822.0.ST.CT4-7D.SH2
NSN: 8150-01-619-8154, 8150-01-620-0132
Type: IITricon Dry Freight ISO Cargo Container

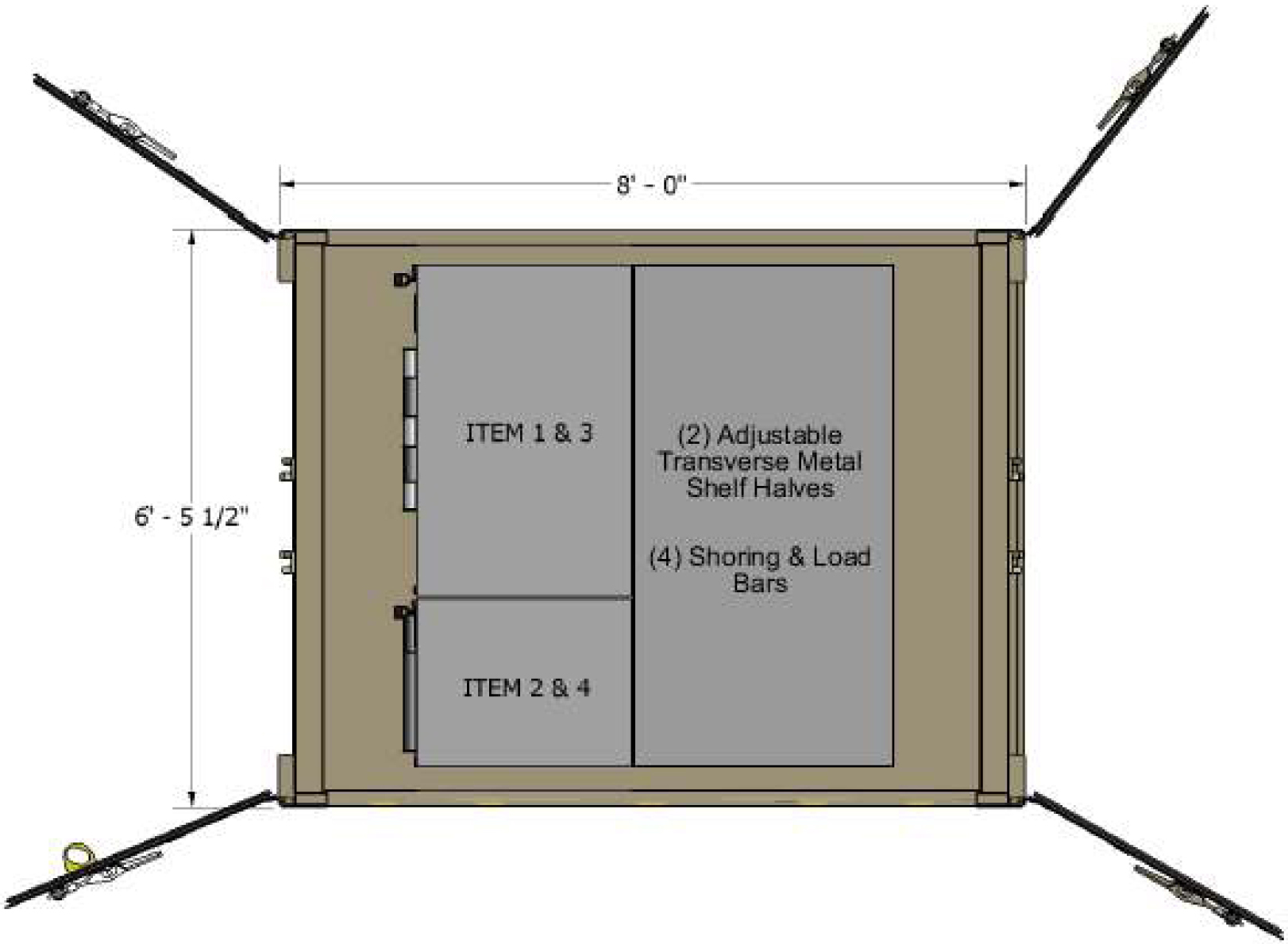

Tricon with four (4) cabinets, seven drawers each and two (2) shelf halves.
SB822.0.ST.CT4-7D.SH2 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- CONTAINER
- Corrugated steel sides, roof + swing doors on both sides
- Heavy duty steel floor
- (4) way fork lift pockets
- Manifest box (2) each
- Connecting couplers, (3) per Tricon
- Connecting coupler storage bracket (1) each
- Adjustable shelving brackets (5) sets = (10) vertical E-track sections total
- 4 (each) Shoring & Load Bars - 2,000 lbs. cap. each
- 2 (each) Adjustable Transvers Metal Shelf halves
- Tan exterior paint
- Vents, (2) each
- CABINETS
- Featuring Stanley Vidmar Cabinets designed for mobile transport, all with LIFETIME Warranty
- 1 each 45” Wide Base Cabinet with 7 Drawers
- 1 each 22.5” Wide Base Cabinet with 7 Drawers
- 1 each 22.5” Wide Top with 1 Swing Door
- 1 each 45” Wide Top with 2 Swing Doors
- 400lb. Capacity Drawers
- Custom configurations upon request
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 6’ 5 9/16” | 6’ 3 25/64” | 8’ 0” | 7’ 5 9/64” | 8’ 0” | 7’ 5 17/32” | 7’ 1 43/64” | 6’ 1 25/32” |
| Metric | 1970.09 | 1914.92 | 2438.4 | 2264.17 | 2438.4 | 2274.09 | 2176.07 | 1848.64 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 3,900 w/ cabinets | 11,000 | 14,900 | |
| Kgs |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
