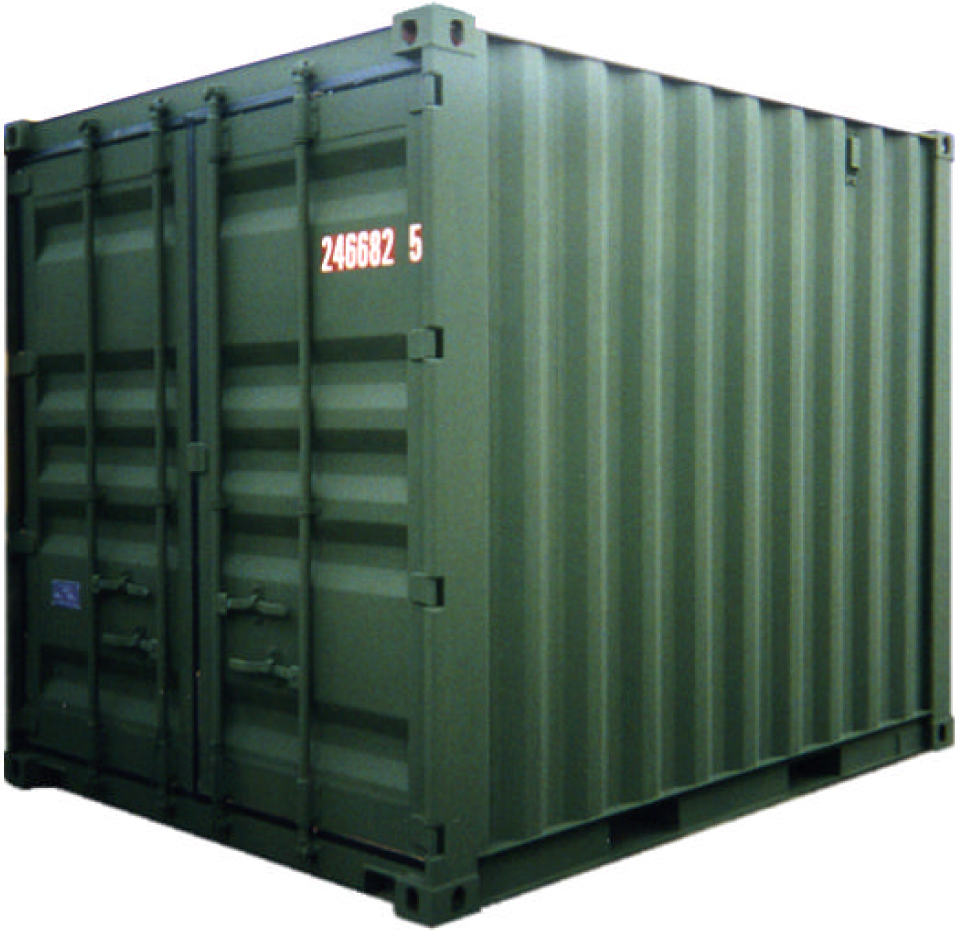

10’ x 8’ Bicon Dry Freight Container with Double Doors One End
Part Number: SB841.0
Type: IISO Cargo Container, Swing doors on one Side.
SB841.0 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides and roof
- 14 gauge locking steel double end swing doors
- 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
- Tie down steel lashing rings, 4000 lbs. cap. each
- (2) way fork lift pockets
- Vents, (2) each
- Connecting couplers, (2) per Bicon
- Connecting coupler storage bracket (1) each
- Manifest box (2) each
- Adjustable shelving brackets (4) sets
- Decking and shoring beams (16) each
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 9’ 9 3/4” | 9’ 3 1/2” | 8’ 0” | 7’ 4 3/16” | 8’ 0” | 7’ 8 17/32” | 6’ 11 21/32” | 7' 8 11/64" |
| Metric | 2,991 | 2,832 | 2,438 | 2,240 | 2,438 | 2,350 | 2,125 | 2,341 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 2,900 | 23,555 | 26,455 | 527 Cu.Ft. |
| Kgs | 1,315 | 10,684 | 12,000 | 14.9 Cu.M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
