Containerized Water Bladder for 20’ x 8’6” ISO Container

Part Number: SB861.6.CWB

NSN: 5410-01-623-5482

Type: I

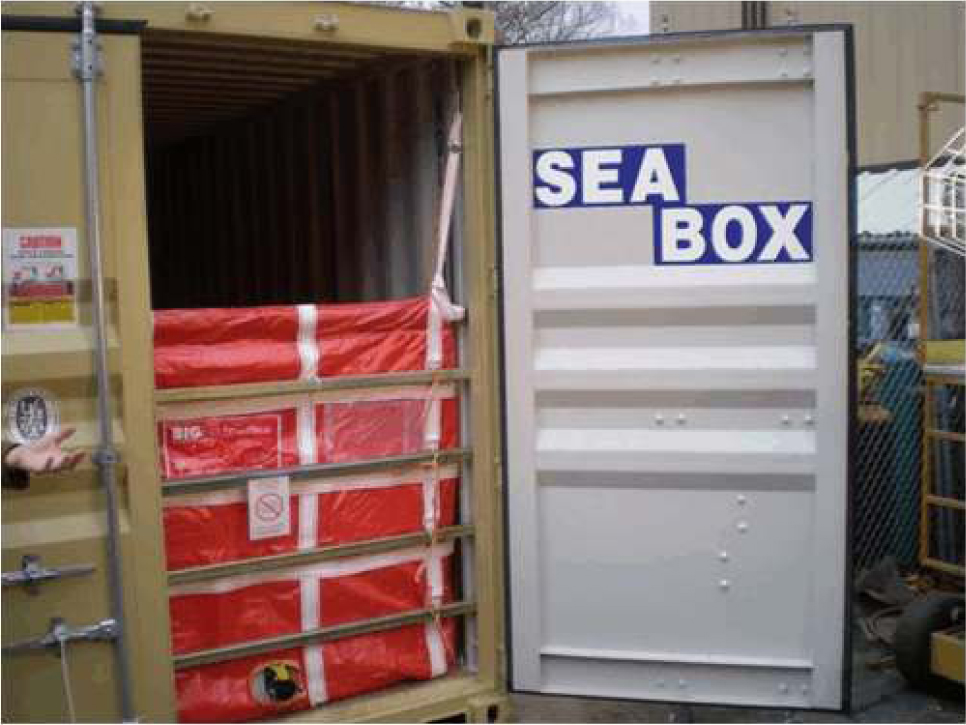

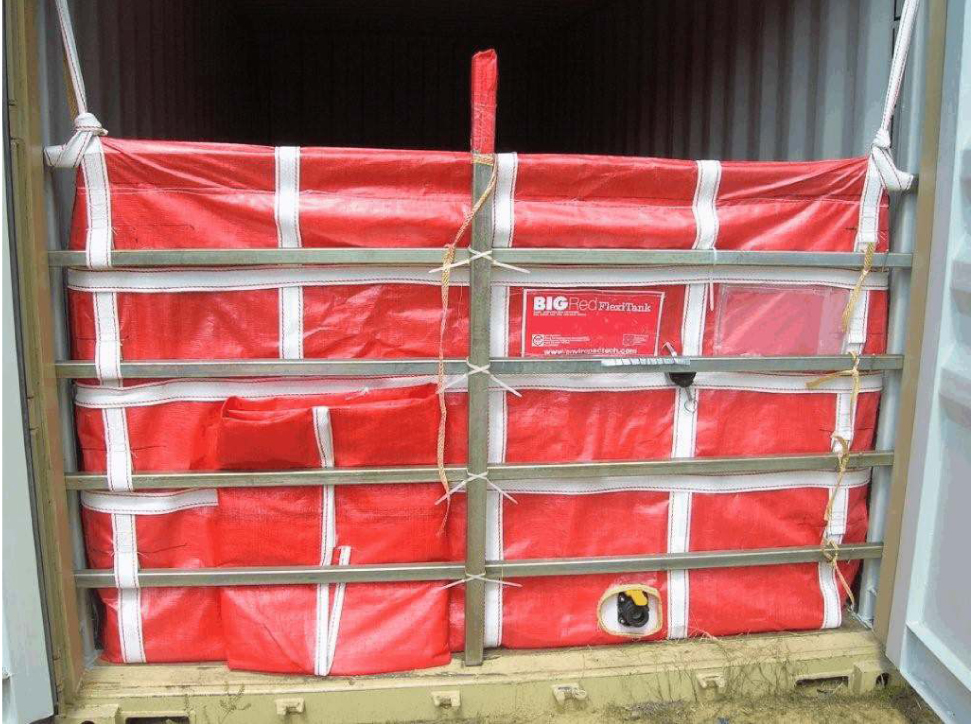

ISO Cargo container with internal bladder for storage and transport of liquids. Double doors on one end.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
  • Strength bands woven into outer polypropylene sleeve
  • Outer sleeve made with seamless construction for greater strength, durability, and protection
  • Patented compression fitted flange and valve made of FDA approved composite materials for greater product compatibility
  • (2) true 3” valves for increased loading and unloading rates
  • (2)-ply of 14mil proprietary PE film suitable for foodgrade, chemical, and pharmaceutical products
  • Straight-bar bulkhead
  • Perfect for road and sea transportation
  • Easy to install with minimal assembly time
  • Rugged, single-use bulkhead
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 20’ 0” 19’ 1” 8’ 6” 7’ 10 1/4” 8’ 0” 7’ 2 1/2” 7’ 5 11/16” 7’ 8 11/64”
Metric 6,096 5,816 2,591 2,394 2,438 2,198 2,278 2,341
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs
Kgs

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
