Standard Features

  • Corrugated steel sides, roof, and swing doors on one end

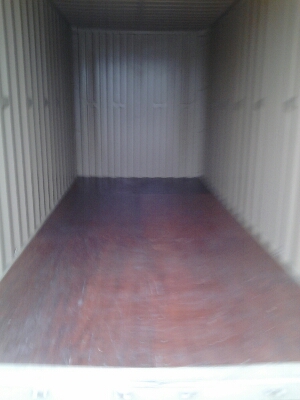

  • 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
  • Wall tie down steel lashing rings, 4,000 lbs. cap. each (24 total) tested at 6,000 lbs.
  • Front corner post tie downs (10 total)
  • Door corner post tie downs (10 total) = restraint system, shoring slot will support 2” x 6” lumber
  • Vents, (2) each

Optional Features

  • Manifest box (2) each
  • (2) sets of forklift pockets, laden and unladen
  • 383 Green exterior CARC paint

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 10 1/2” 19’ 4 11/64” 9’ 6” 8’ 10 1/4” 8’ 0” 7’ 8 17/32” 8’ 5 11/16” 7’ 8 11/64”
Metric 6,058 5,897 2,896 2,699 2,438 2,438 2,583 2,341
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 5,415 47,495 52,910 1,321 Cu.Ft.
Kgs 2,456 21,543 24,000 37.4 Cu.M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
