Standard Features

  • Corrugated steel sides and roof

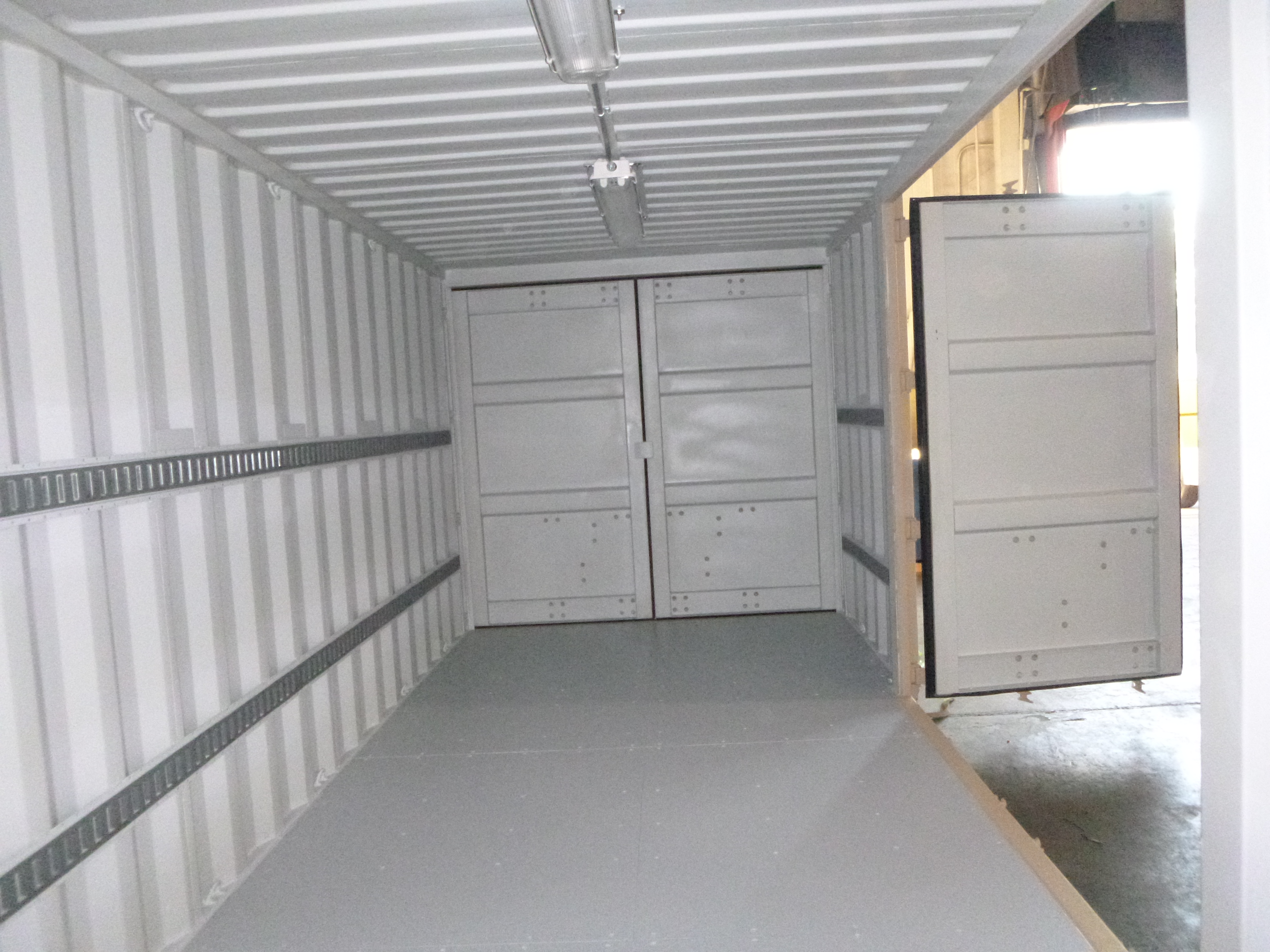

  • 14 gauge locking steel double end swing doors on one end and one side
  • 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
  • Tie down steel lashing rings, 4000 lbs. cap. each

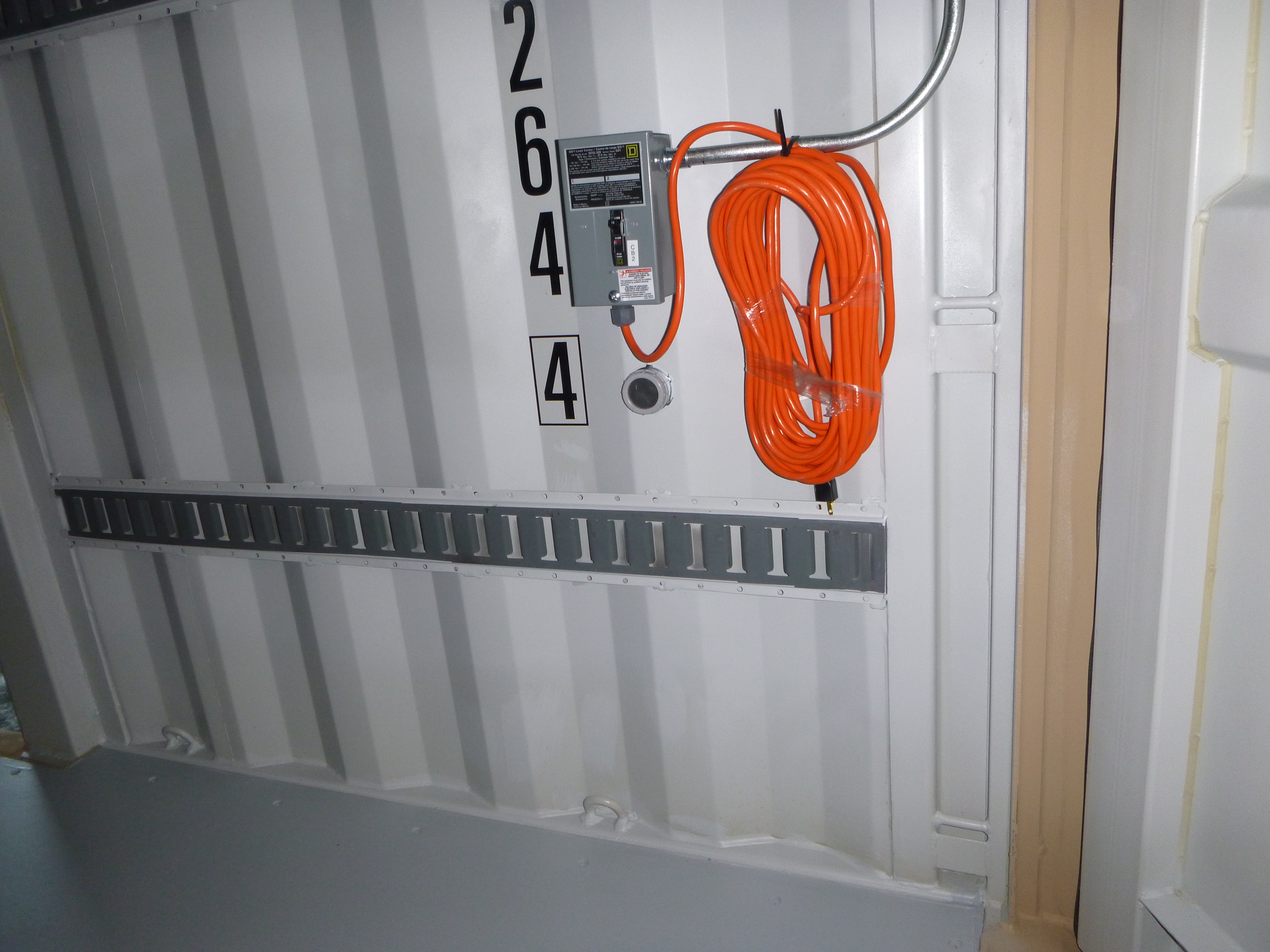

  • E-track installed on fixed walls at 18” & 48” from floor
  • Standard overhead lighting with switch & 50’ power cord
  • Two-way laden fork lift pockets
  • 2nd set of two-way unladen fork lift pockets
  • Vents, (2) each

Optional Features

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 10 1/2” 19’ 4 3/16” 8’ 0” 7’ 4 3/16” 8’ 0” 7’ 5 1/16” 6’ 11 21/32” 7’ 8 1/2”
Metric 6,058 5,898 2,438 2,240 2,438 2,438 2,125 2,350
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 5,380 47,530 52,910 1,086 Cu. Ft.
Kgs 2,440 21,559 24,000 30.7 Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
