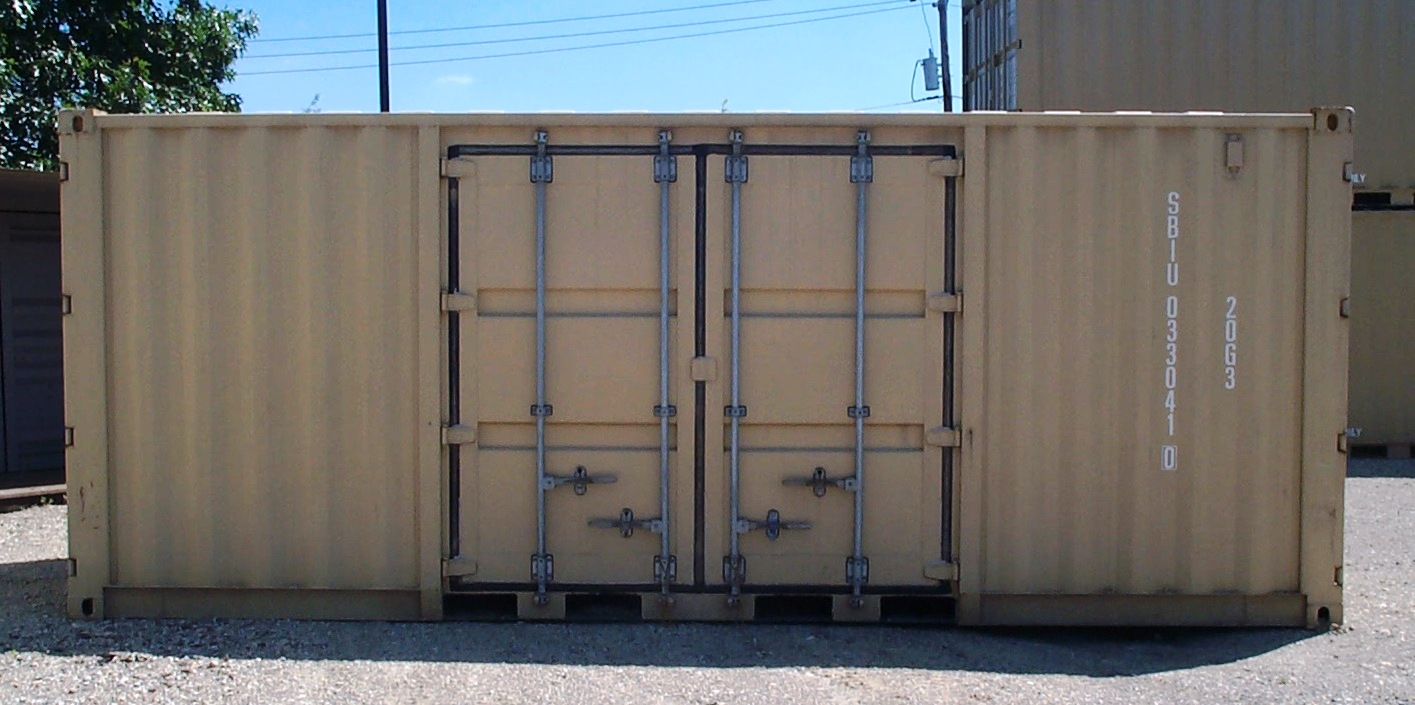

20’ x 8’ Dry Freight Container with Double Doors One End and One Side
Part Number: SB864.0
Type: IVA SEA BOX 20' container, also known as a Conex Box or Milvan, is easily transportable via land, air, and sea. Containers can be custom modified and fitted with shelves, cabinets, or racks to accommodate virtually any type of cargo or equipment. These 20' containers are ideal for temporary storage or permanent storage. Full side opening doors allow for convenient loading and unloading of cargo.
SB864.0 Brochure
- Corrugated steel side, roof, swing doors on one end and one side
- (2) sets of forklift pockets, laden and unladen
- 1 1/8" thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
- Wall tie down steel lashing rings, 4,000 lbs. cap. each (20 total) tested at 6,000 lbs.
- Front corner post tie downs (10 total)
- Door corner post tie downs = restraint system, shoring slot will support 2” x 6” lumber
- Vents, (2) each
- Manifest box (2) each
- 383 Green exterior CARC paint
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | Side Door | ||||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | Height | Width | |
| Ft in | 19’ 10 1/2” | 19’ 4 13/64” | 8’ 0” | 7’ 4 9/32” | 8’ 0” | 7’ 6 1/8” | 7’ 1/64” | 7' 8 1/8" | 7’ 13/32” | 7’ 8 1/8” |
| Metric | 6,058 | 5,898 | 2,438 | 2,244 | 2,438 | 2,289 | 2,134 | 2,340 | 2,144 | 2,340 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 5,250 | 61,950 | 67,200 | 1,069 cu. ft. |
| Kgs | 2,380 | 28,100 | 30,480 | 30.3 cu. m. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
