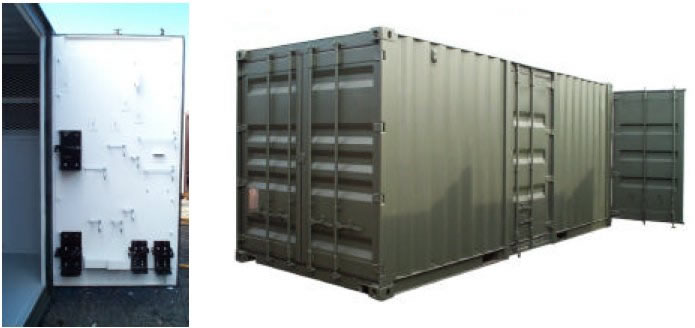

20’ x 8’6” ISO Maintenance Container
Part Number: SB8641
NSN: 8150-01-480-6877
Type: IWorkbench with storage cabinets and a tool mounting system. Custom shelves included. Double doors on one end and single door on one side.
SB8641 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides and roof
- 14 gauge locking steel double end swing doors on both ends and one single side door
- 1 1/8” thick marine plywood floors with 10 guage steel floor overlay
- Tie down steel lashing rings, 4000 lbs. cap. each
- Two-way laden fork lift pockets
- (2) closing vents
- (1) vent, pressure relief valve
- Custom steel shelves with plywood surface
- Stainless steel chain bins
- Tool mounting system
- Work bench with storage cabinets
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

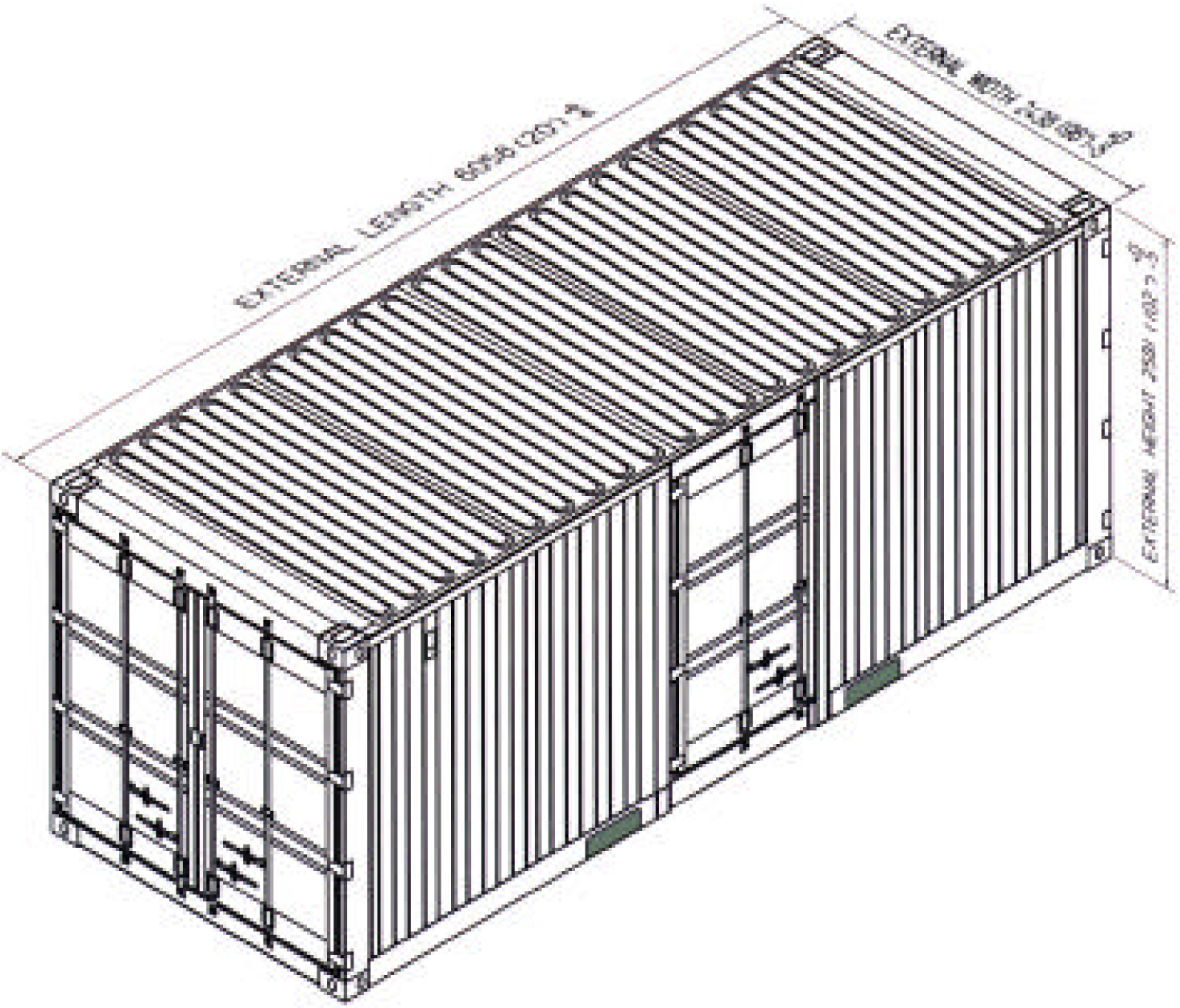

| Length | Height | Width | Door Opening | Side Door | ||||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | Height | Width | |
| Ft in | 19’ 10 1/2” | 19’ 2 1/16” | 8’ 6” | 7’ 9 29/32” | 8’ 0” | 7’ 5 1/16” | 7’ 5 3/4” | 7’ 8 1/8” | 7’ 5 3/4” | 3’ 10 7/16” |
| Metric | 6,058 | 5,844 | 2,591 | 2,385 | 2,438 | 2,264 | 2,280 | 2,340 | 2,280 | 2,350 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 6,740 | 46,170 | 52,910 | 1,113 Cu. Ft. |
| Kgs | 3,057 | 20,943 | 24,000 | 31.5 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
