Standard Features

  • Corrugated steel roof
  • (2) 14 gauge steel double bifold swing side doors
  • (2) 14 gauge steel double end swing doors
  • 1 1/8" thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
  • Tie down steel lashing rings, 4000 lbs. cap. each
  • (2) sets of fork lift pockets, laden, and unladen
  • Vents, (2) each
  • (1) tween deck

Optional Features

  • Manifest box (2) each
  • 383 Green exterior CARC Paint

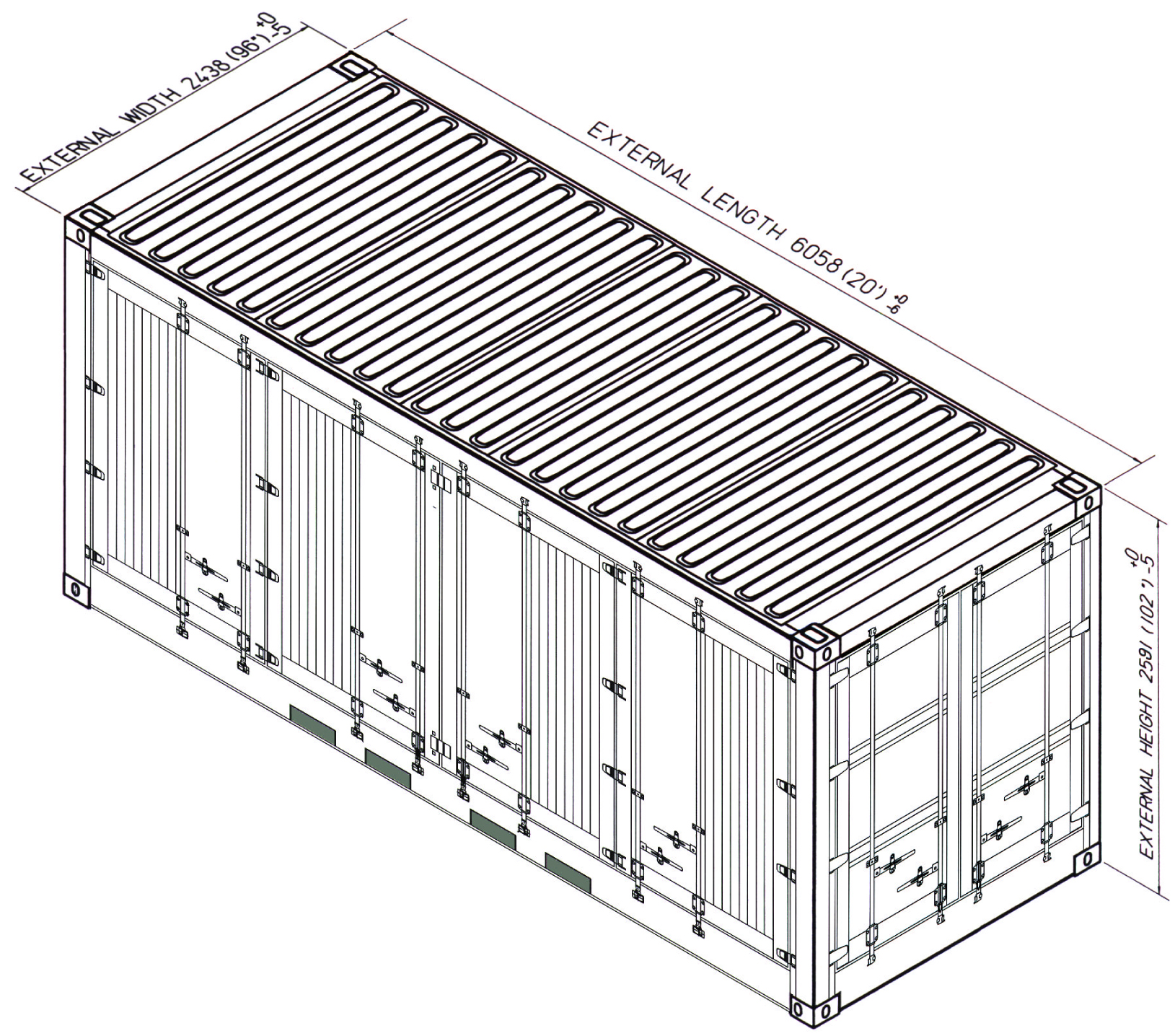

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 10 1/2” 19’2 1/16” 8’ 6” 7' 5 3/16" 8’ 0” 7’ 3 9/16” 7' 0" 6’11 5/32”
Metric 6,058 5,844 2,591 2,265 2,438 2,438 2,154 2,112
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 9,590 43,320 52,910 947 cu. ft.
Kgs 4,350 19,650 24,000 26.8 cu. m.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
