Standard Features

  • Corrugated steel roof
  • (2) 14 gauge steel double bifold swing side doors
  • (2) 14 gauge steel double end swing doors
  • 1 1/8" thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
  • Tie down steel lashing rings, 4000 lbs. cap. each
  • (2) sets of fork lift pockets, laden, and unladen
  • Vents, (2) each
  • (2) tween decks

Optional Features

  • Manifest box (2) each
  • 383 Green exterior CARC Paint

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

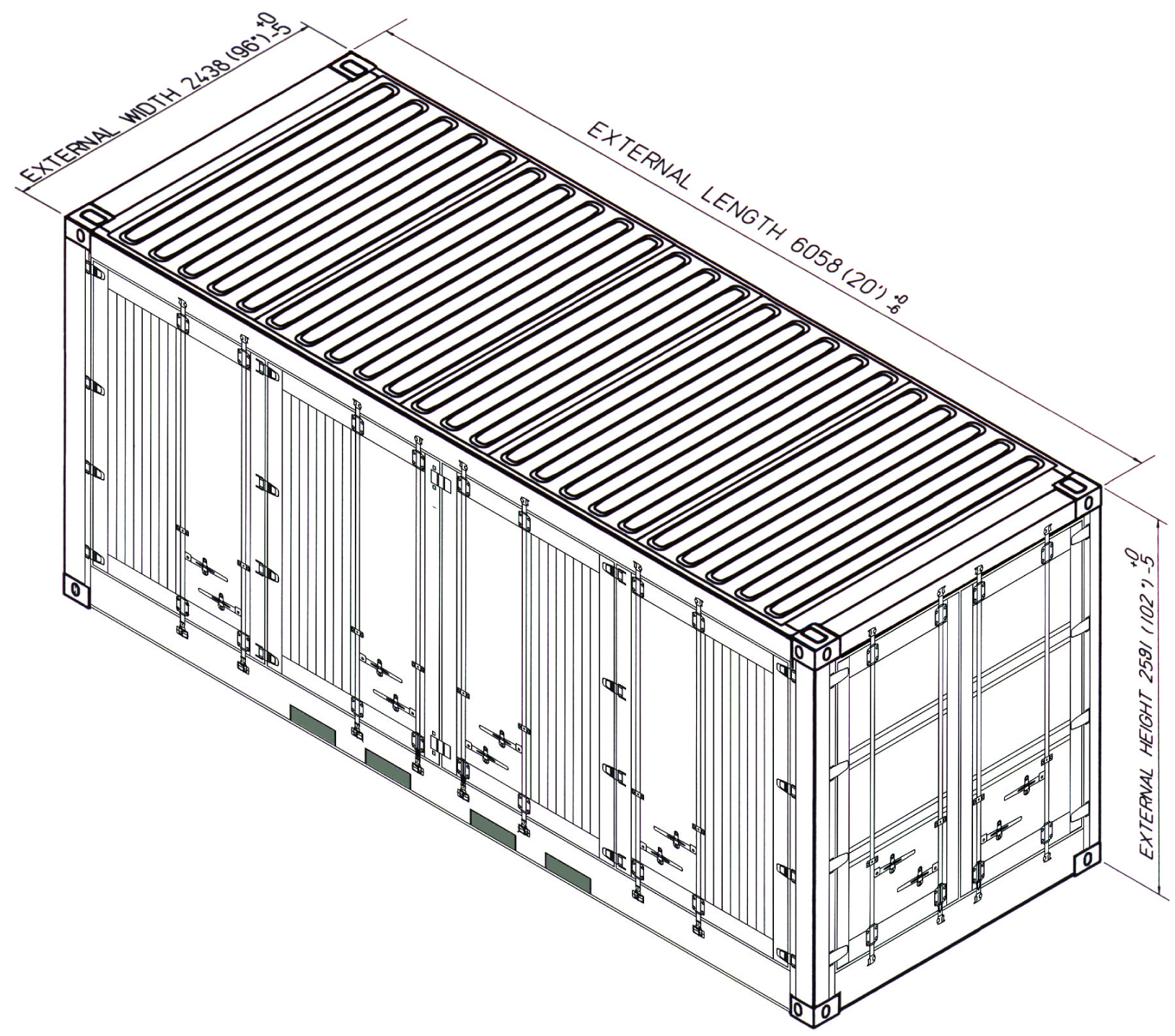

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 10 1/2” 19’ 2 1/16” 8’ 6” 7' 5 3/16" 8’ 0” 7’ 3 9/16” 7' 0" 6’11 5/32”
Metric 6,058 5,844 2,591 2,265 2,438 2,438 2,154 2,112
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 11,025 41,885 52,910 853 cu. ft.
Kgs 5,000 19,000 24,000 24.2 cu. m.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
