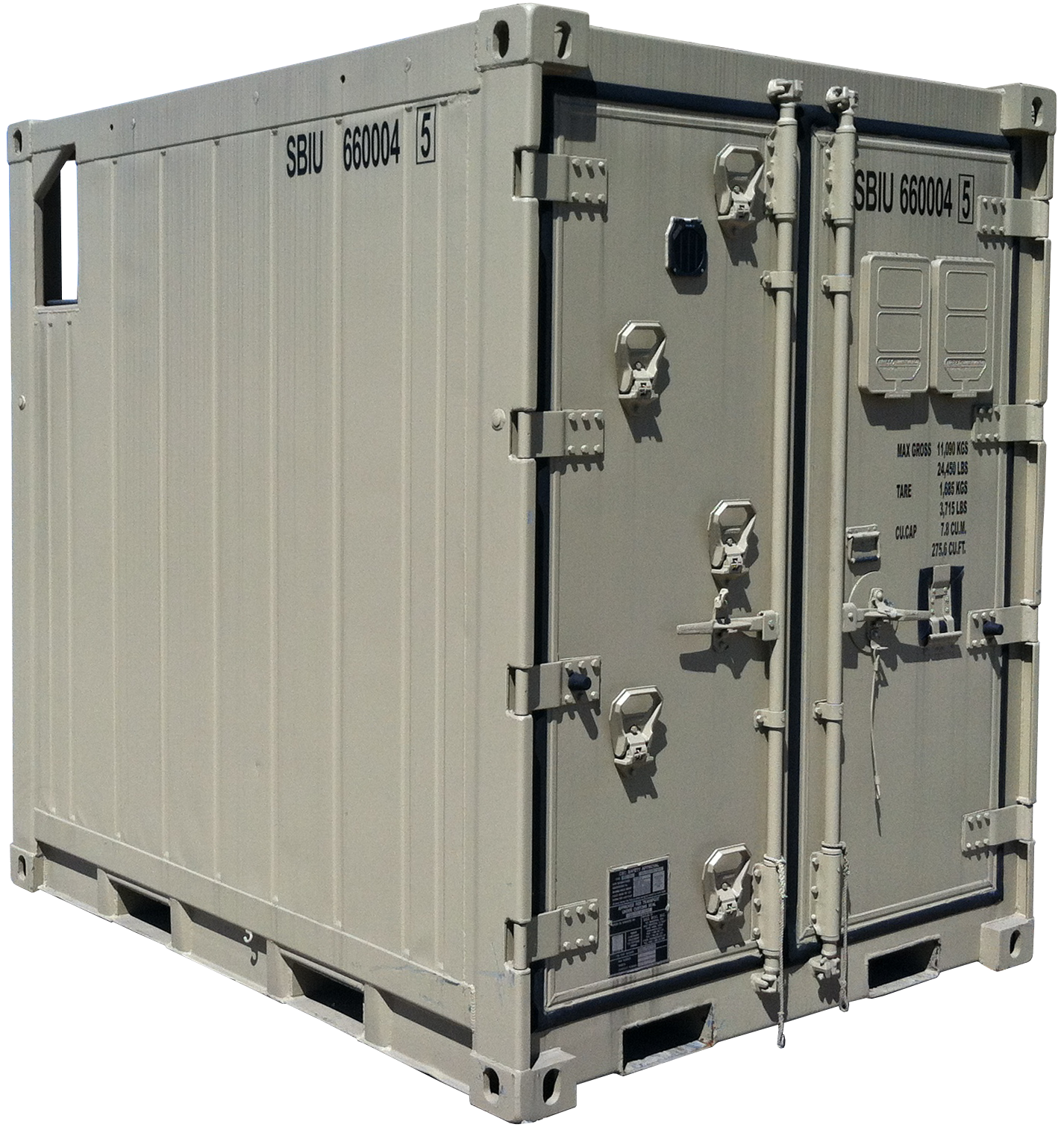

Tricon Refrigerated Cargo Container Type 1 - MRU Reefer Unit
Part Number: SB531.0.DND.TYPE1
NSN: 8150-01-601-0804
Type: IMainstream Refrigerated Unit. Double Swing doors on one End.
SB531.0.DND.TYPE1 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote

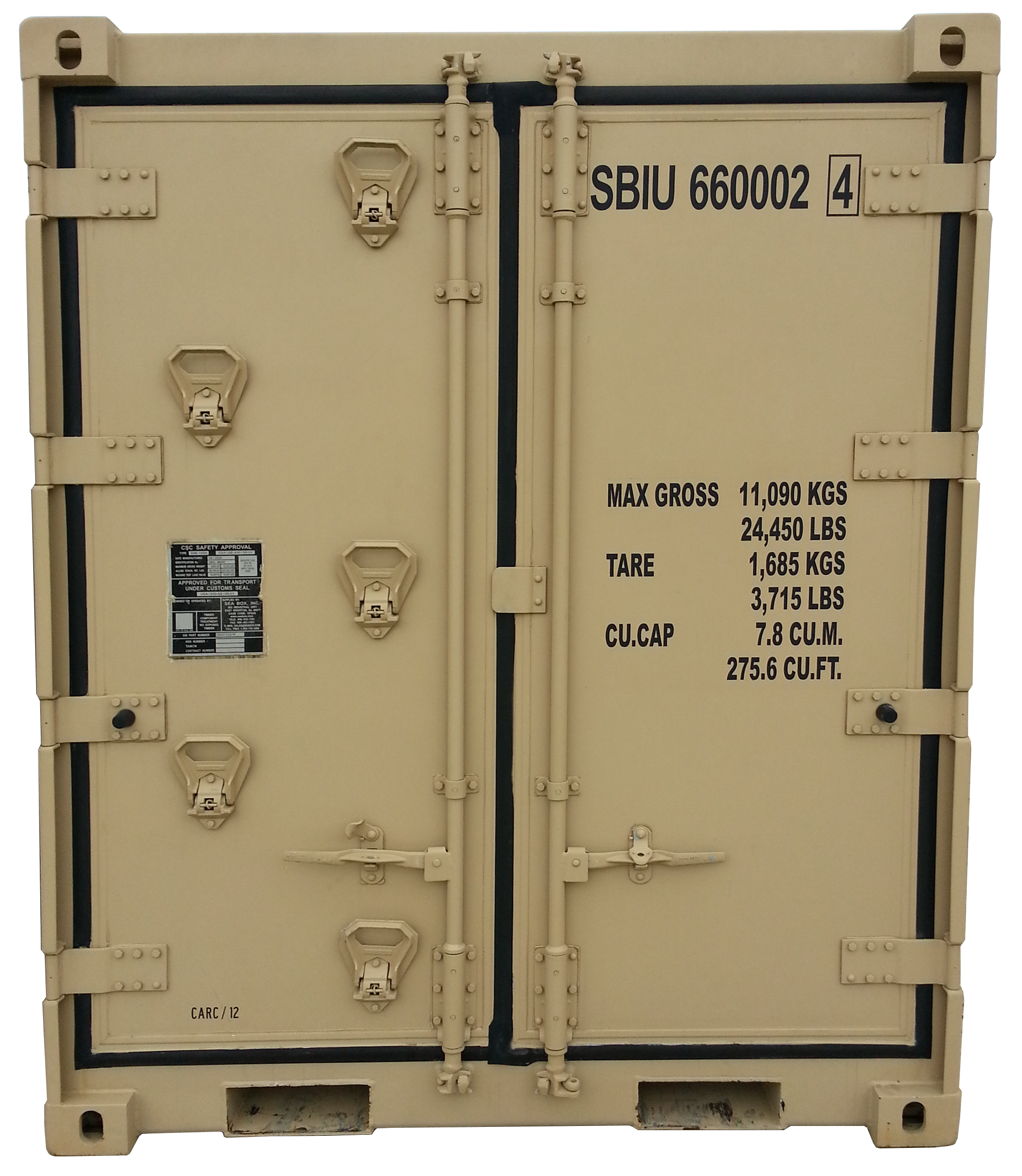

- Double swing doors with grip handle and Stainless Steel hardware
- Stainless Steel interior lining per NSF standards
- Heavy duty tread plate aluminum floor
- Four way fork lift pockets

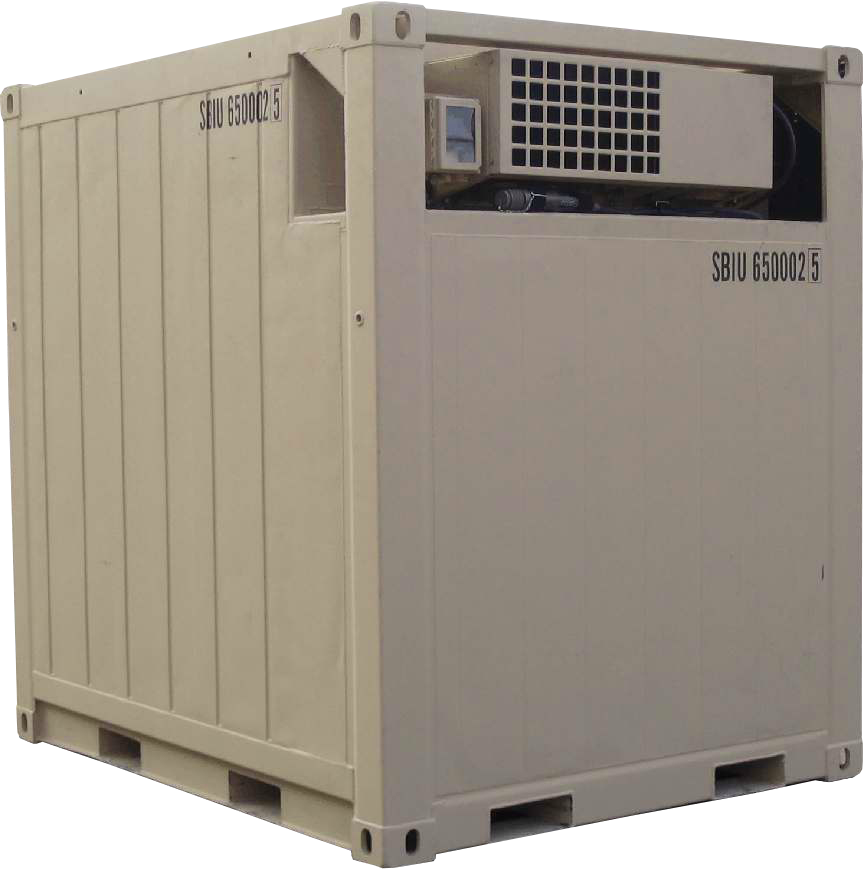

- MRU-TQ1-404 (Mainstream) Refrigeration Unit, 120 single phase, 60 cycle. Power SO cable is 10m long with Hubble Connector HBL320P4W
- Internal lighting, 120 VAC, 100 watt bulb
- Cargo restraint system with (12) tie down points, 1,000 lbs. cap.
- Horizontal E-Track, 1 row per side—recessed in side wall panel
- Connecting couplers, (3) per Tricon
- Technical Manual holder, (2) each Interior size: 12” x 9” x 1.5”
- Floor drain, (4) each with plugs
- Custom data plates
- Vertical E-Track in road side wall
- Vertical E-Track post, removable type to be used with SS shelves, (4) each

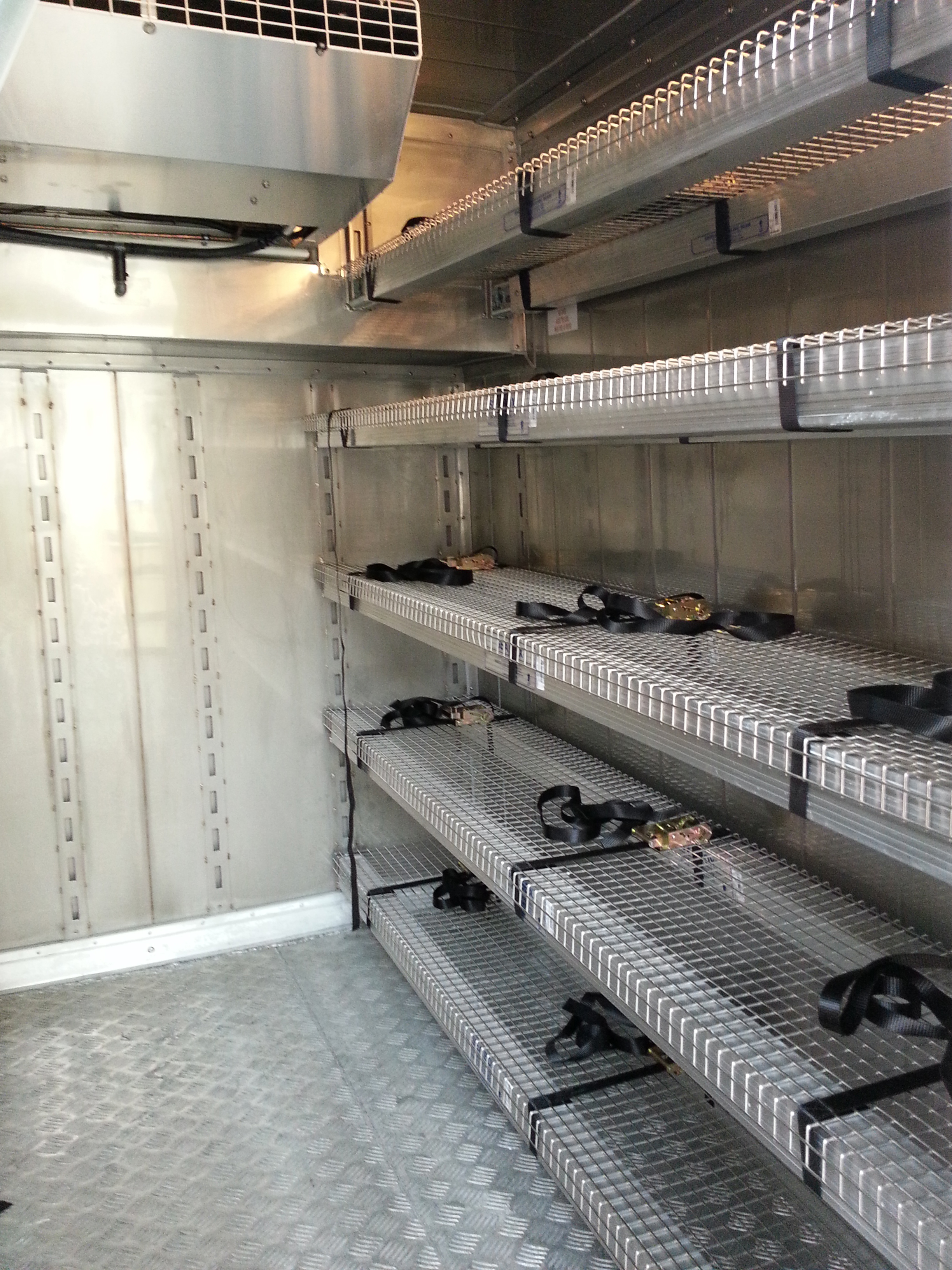

- Food Grade Stainless Steel shelving, removable open deck design, 22” wide, 600 lbs. capacity per shelf (5) shelves per side
- Web straps and ratchets, (3) per shelf
- Connecting coupler storage bracket, (1) each, holds (3) connectors
- Emergency escape hatch
- 6 KW Gen set, Diesel, with Hubble Receptacle HBL320P4W
- Strip Curtains in sliding track across door
- (5) folding steps/hand hold for roof access, plus (1) on the roof
- Non-slip roof surface
- Decking and shoring beams, (20) each
- 31-day recording thermostat
- 7.5 gal. fuel tank with quick connect supply & drain lines
- Additional 20 ft. extended supply & drain lines
- Single phase transformer
- 12V battery
- Enclosed, lockable & vented compartment for operating system
- Spare parts kit
- Low Solar Absorption (LSA) coating
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 6’ 5 1/2” | 5’ 9 9/32” | 8’ 0” | 6’ 11 11/16” | 8’ 0” | 7’ 1/8” | 6’ 10 1/4” | 5’ 9 7/32” |
| Metric | 1,969 | 1,760 | 2,438 | 2,126 | 2,438 | 2,137 | 2,089 | 1,758 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 5,100 | 4,900 | 10,000 | 293 Cu. Ft./275.6 Cu. Ft. |
| Kgs | 2,313 | 2,223 | 4,536 | 8.3 Cu. M./7.8 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
