Standard Features

  • Corrugated steel sides, roof and swing doors on one side
  • Heavy duty steel floor
  • Four- way fork lift pockets
  • Wall tie down steel lashing rings, 4,000 lbs. cap. Each (28) total
  • Front corner post tie downs, (10) total
  • Door corner post tie downs, (10) total = restraint system shoring slot will support 2” x 6” lumber

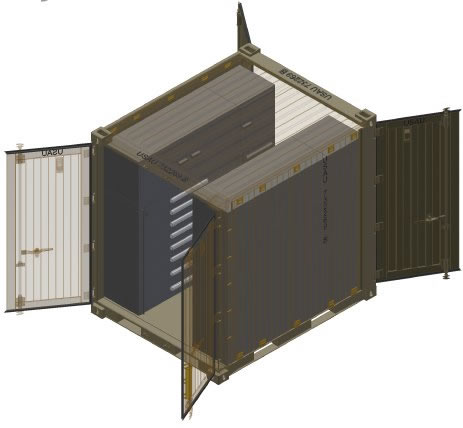

  • Adjustable shelving brackets: (5) sets = (10) Vertical E-Track sections total
  • Exterior color OD Green # 34088 or Tan # 33446
  • Interior color OD Green # 34088 or Tan # 33446
  • Vents, (2) each

Optional Features

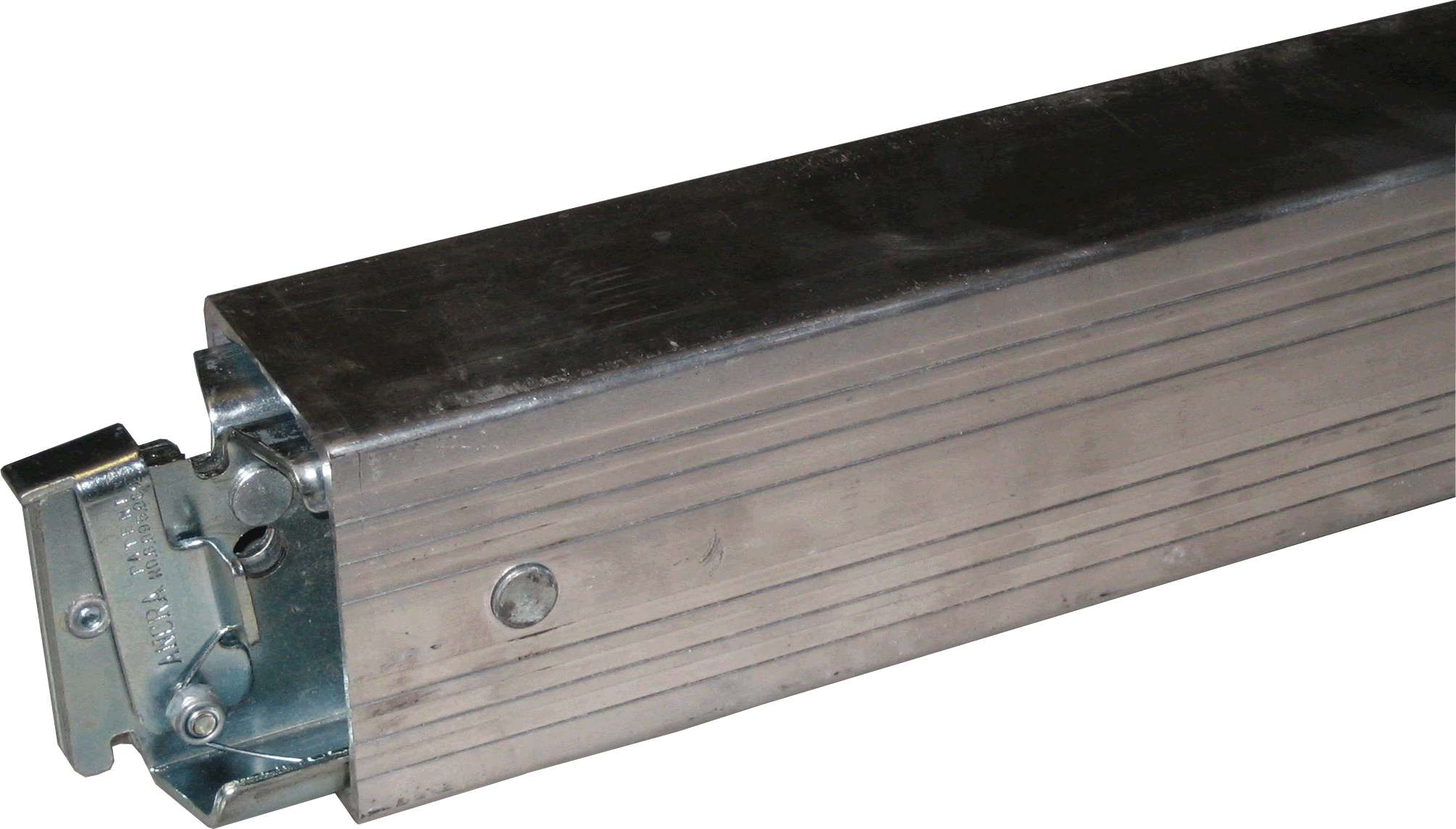

  • Decking and Shoring Beams, (15) each
  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket, (1) each
  • Manifest Box, (2) each with 1 set of Manuals

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6’ 5 9/16” 6’ 3 25/64” 8’ 0” 7’ 5 9/64” 8’ 0” 7’ 7 23/32” 7’ 1 43/64” 6’ 1 25/32”
Metric 1,970 1,915 2,438 2,264 2,438 2,438 2,176 1,874
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 2,600 12,300 14,900 356 Cu. Ft.
Kgs 1,179 5,579 6,759 10.08 Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
