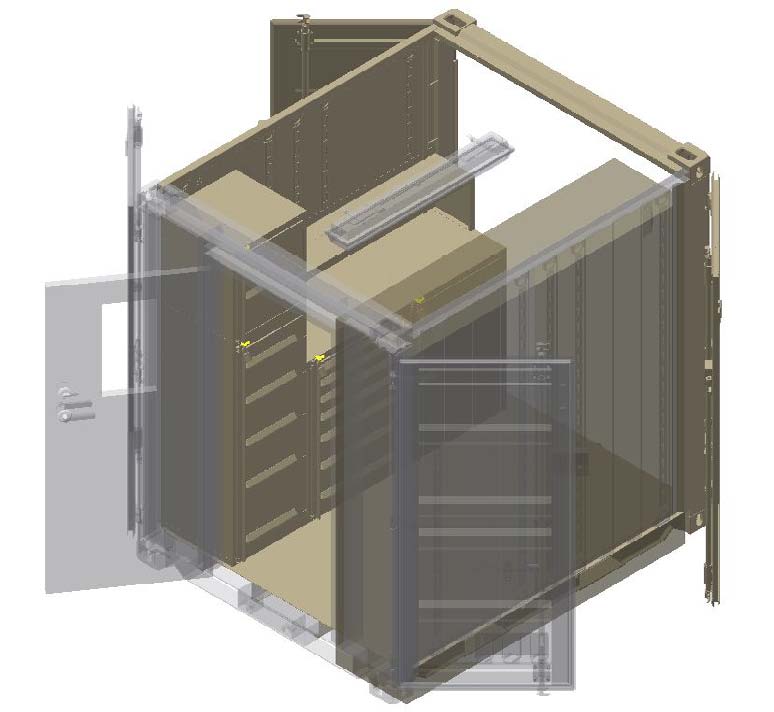

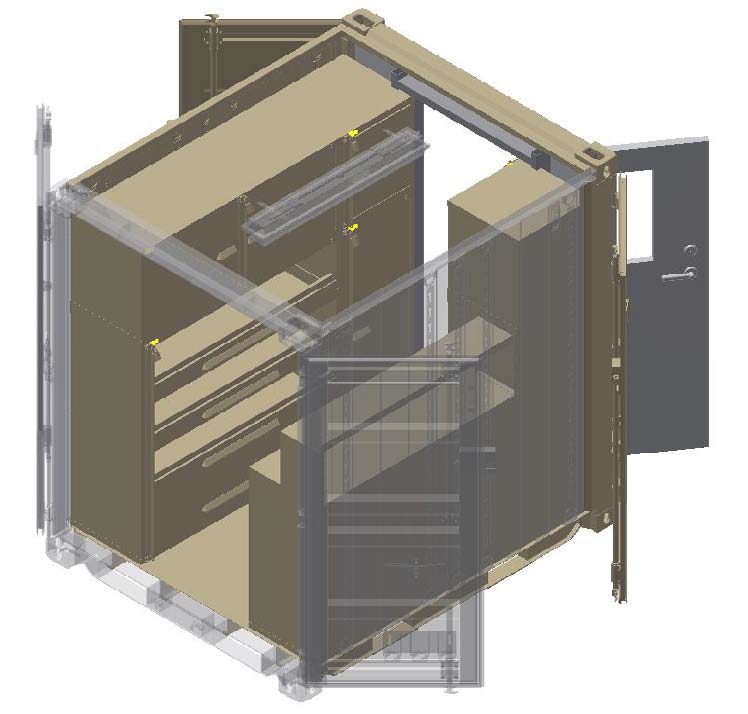

Tricon ISO Container (Type 2) Workshop
Part Number: SB822.0.WS
NSN: 8145-01-619-9501, 8145-01-619-8256
Type: IIContainer Workshop
Tricon ISO container featuring modular cabinet design for maximum flexibilty and interchangability. Double doors on both sides.
SB822.0.WS Brochure
- CONTAINER
- Corrugated steel sides, roof, and swing doors on both sides
- Heavy-duty steel floor
- Four-way fork lift pockets
- Vents, (2) each
- Stanley-Vidmar cabinets and drawers designed for mobile transport
- Modular cabinet design for maximum flexibility and interchangeability
- 400lb. capacity drawers
- DOOR INSERT
- Material 316 stainless steel and aluminum
- Finish self colored or painted
- Stainless steel hinges
- Stainless steel handle
- Door override center mech padlockable inside and outside
- Window
- Cord plug in lights
- Cord plug in outlets
- Connecting couplers, (3) per Tricon
- Connecting coupler storage bracket (1) each
- Ext. paint color choice of OD Green or Desert Tan
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 6’ 5 9/16” | 6’ 3 25/64” | 8’ 0” | 7’ 5 9/64” | 8’ 0” | 7’ 5 17/32” | 7’ 1 43/64” | 6’ 1 25/32” |
| Metric | 1970.09 | 1914.92 | 2438.4 | 1914.92 | 2438.4 | 2274.09 | 2176.07 | 1874.04 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | ||||
| Kgs |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
