Standard Features

  • LOWEST TARE WEIGHT and LARGEST CUBIC CAPACITY for any Tricon Type 5

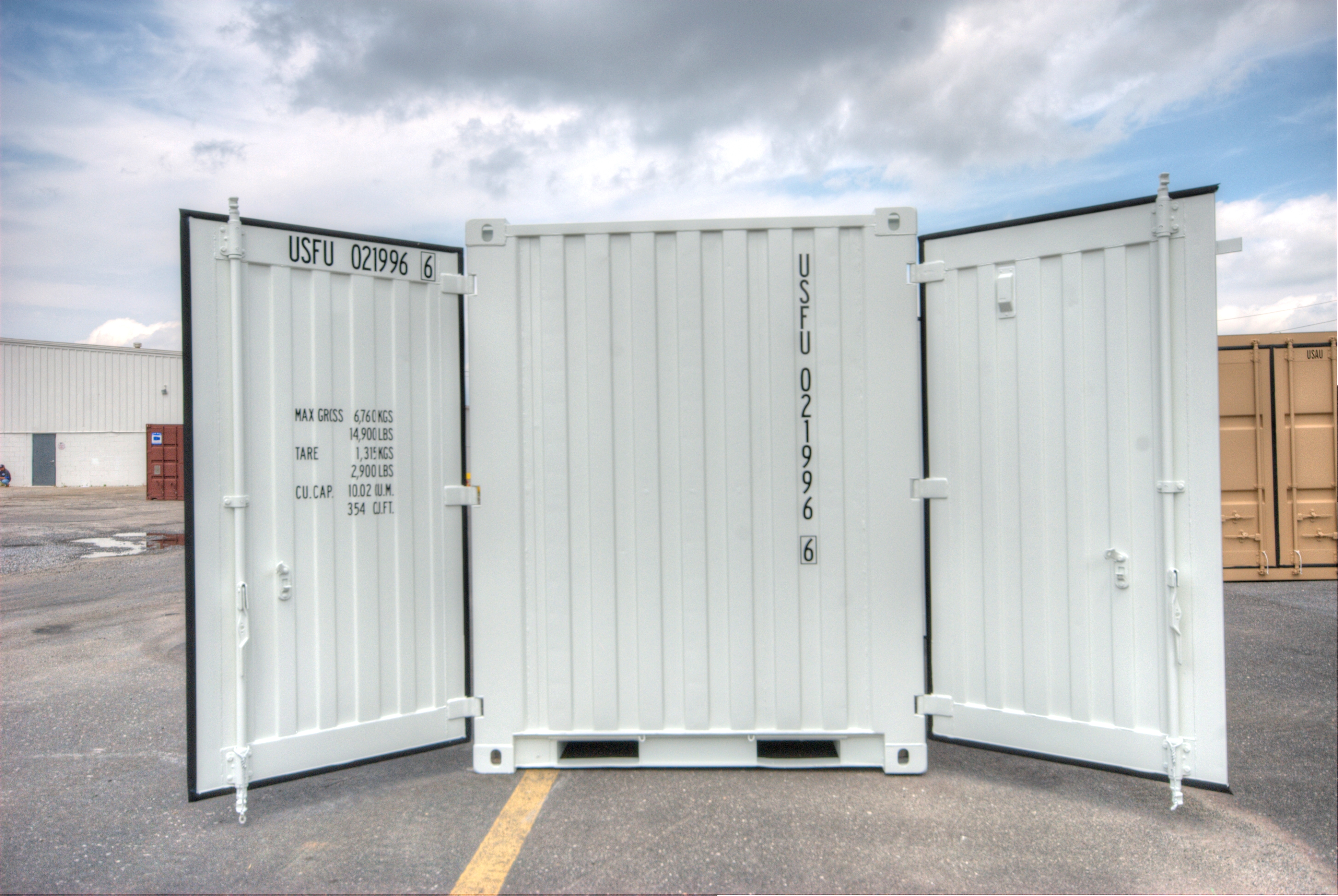

  • Full-width cargo doors on both ends, (swing out a full 270 deg. For ease of loading)
  • Four way fork lift pockets 4.0”H x 14.5”W x 34.73” center line spacing
  • Relief notches in all 4 bottom rails, (8) total
  • Wall tie down steel lashing rings, 4,000 lbs. cap. each (20) total
  • Door corner post tie downs, (20) total = restraint system shoring slot will support 2” x 6” lumber
  • Floor tie down steel lashing rings, 4,000 lbs. cap. each (8) total
  • Interior marking 1/2” high stamped owner’s code SN#
  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket, (1) each
  • Adjustable shelving brackets, (3) sets: (6) vertical E-Track sections total
  • Paint Non-CARC Green w/ 65% Zinc primer
  • Vents, (2) each

Optional Features

  • Decking and shoring beams, (6) each
  • Composite shelving, (2) full size
  • Rack and Cabinet systems
  • Steel locking bar & security seal system
  • Padlock protection box
  • Padlocks, (2) each
  • Opening and closing vents, (2) each
  • Manifet boxes, (2) each
  • CARC paint
  • Paint, Tan or White exterior color
  • Tectyl undercoating

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 77.50” 71.02” 96.00” 88.15” 96.00” 93.90” 85.04” 92.28”
Metric 1,969 1,804 2,438 2,239 2,438 2,438 2,160 2,344
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 2,800 12,100 14,900 343 Cu. Ft.
Kgs 1,270 5,490 6,760 9.73 Cu. M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
