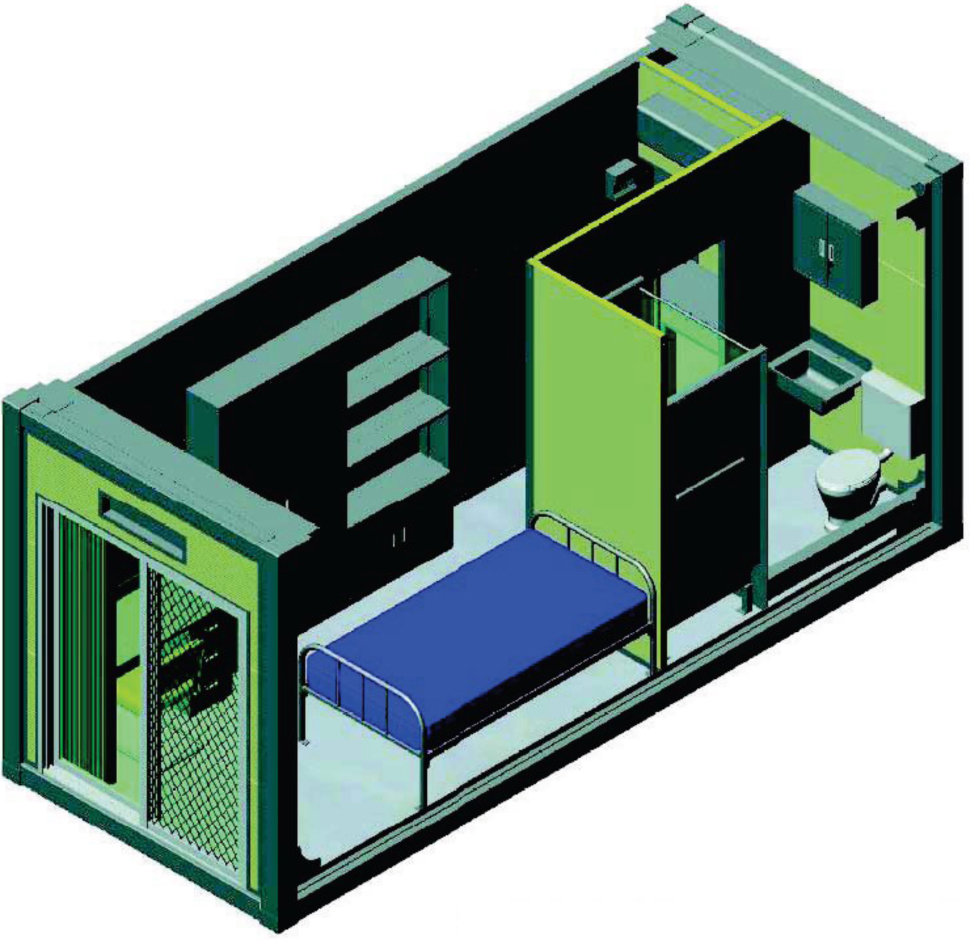

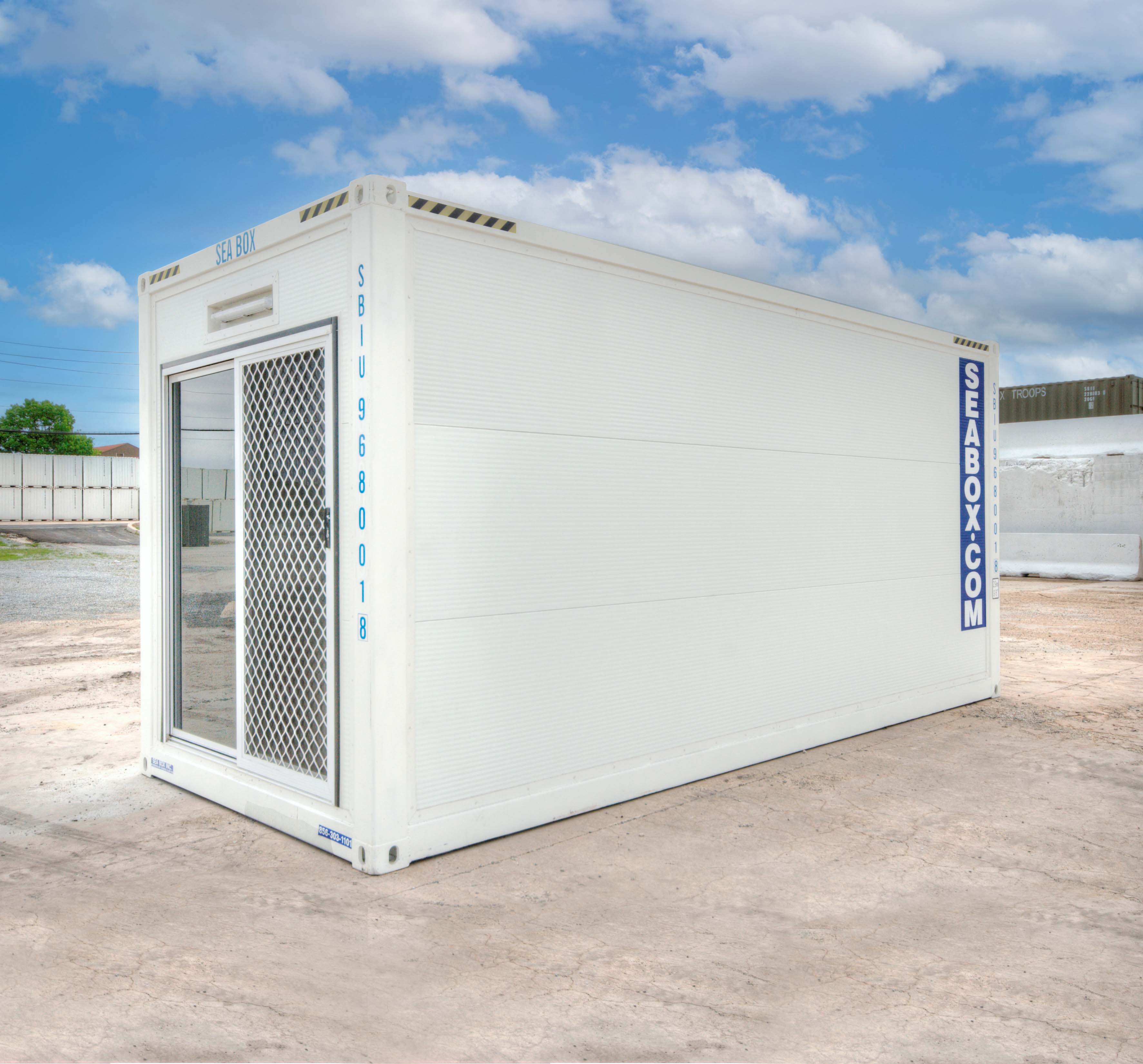

Containerized Housing Unit - One Man
Part Number: SB861.9.CHU-1M
Type: I20' Accomodations module 1M. Available for international distribution.
SB861.9.CHU-1M BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Fully self contained single person accomodation unit
- Air conditioning, bar fridge, LCD/DVD combo as standard inclusions
- Strong, secure, durable low maintenance units
- Corten steel frame construction
- Top lift / Bottom lift handling
- Stackable and interlockable
- Easy to transport by road, rail, or sea
- Minimal on-site setup and preparation work
- Powder coated steel furniture or laminated furniture
- Wide variety of furniture and fitting designs and accessories
- Electrical standards for various locations around the world
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 20’ | 19’ 4 21/64” | 9’ 6” | 8’ 10 21/64” | 8’ | 7’ 4 59/64” | ||
| Metric | 6,100 | 5,900 | 2,900 | 2,700 | 2,438 | 2,260 | ||
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 5,291 | 7,937 | 13,228 | 1,271 Cu. Ft |
| Kgs | 2,400 | 3,600 | 6,000 | 36.0 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
Related Products

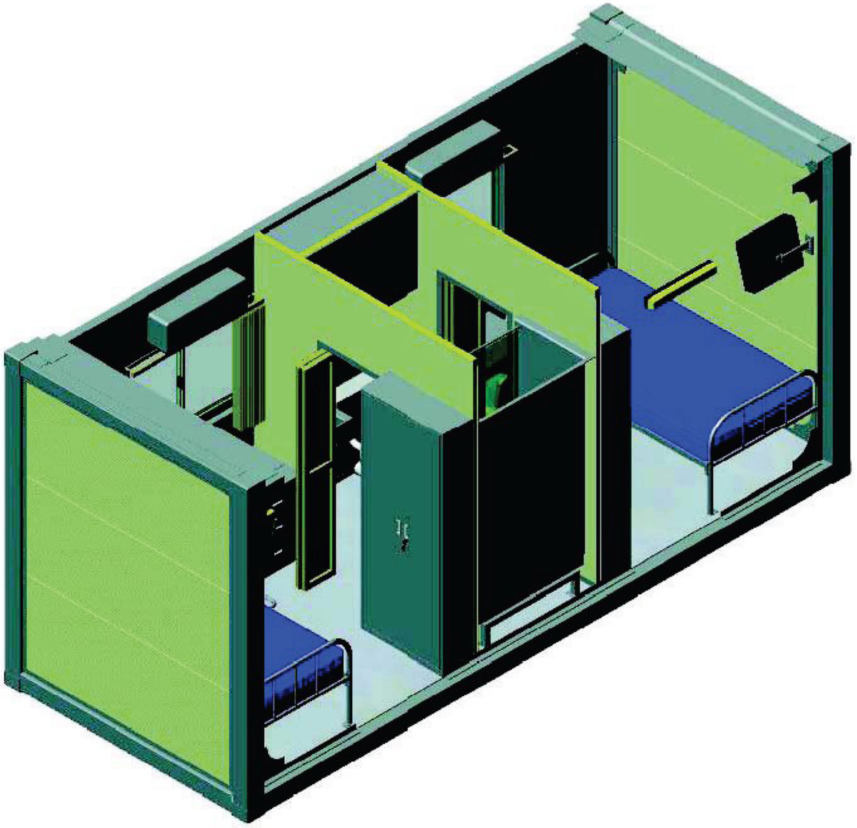

20’ Containerized Housing Unit - Two Man Containerized Housing Unit - 2 Man Type 1 (SB861.9.CHU-2M)
