Standard Features

  • Full-width cargo doors on both ends of the container, (swing out a full 270 deg. for ease of loading)

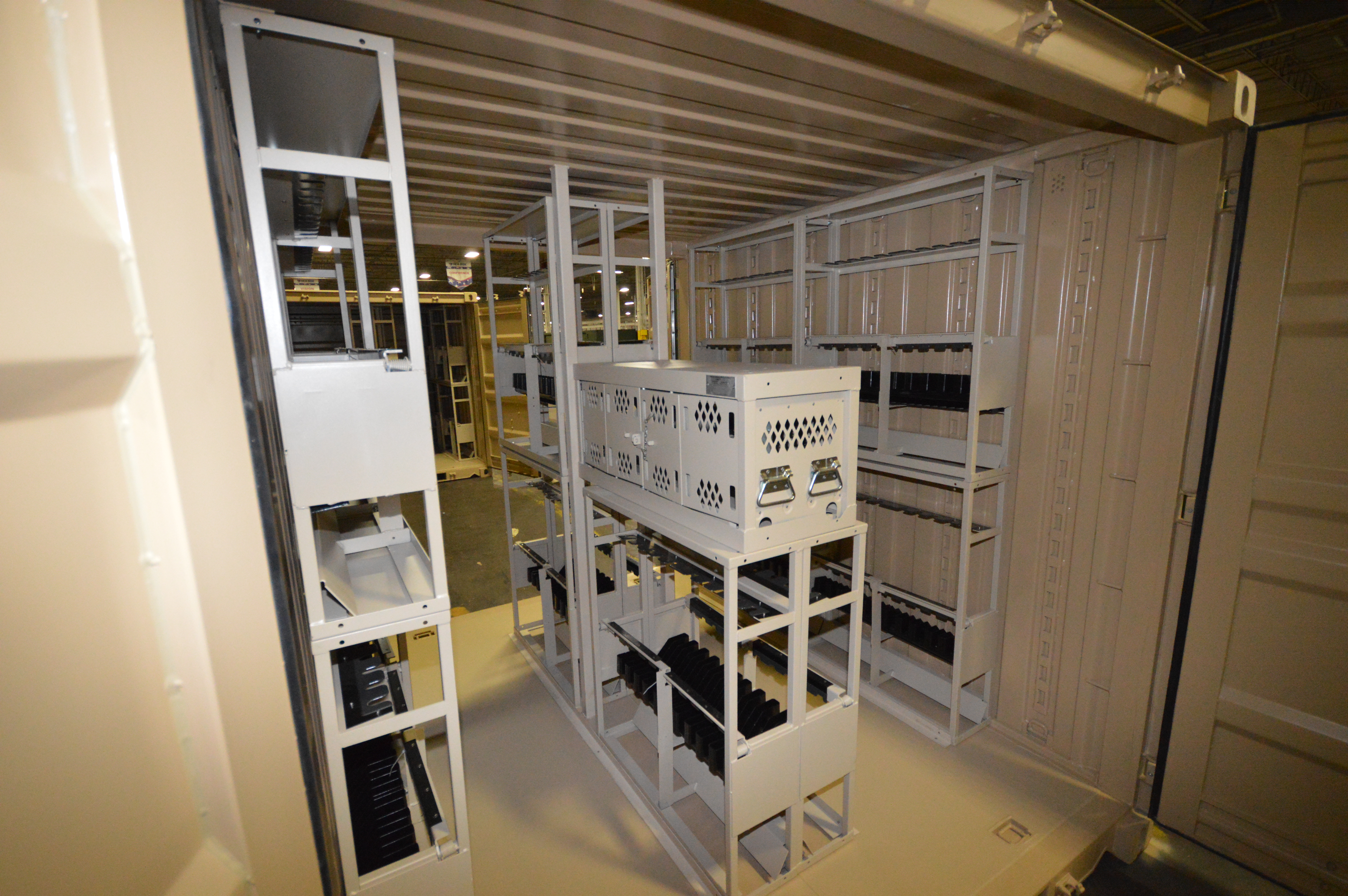

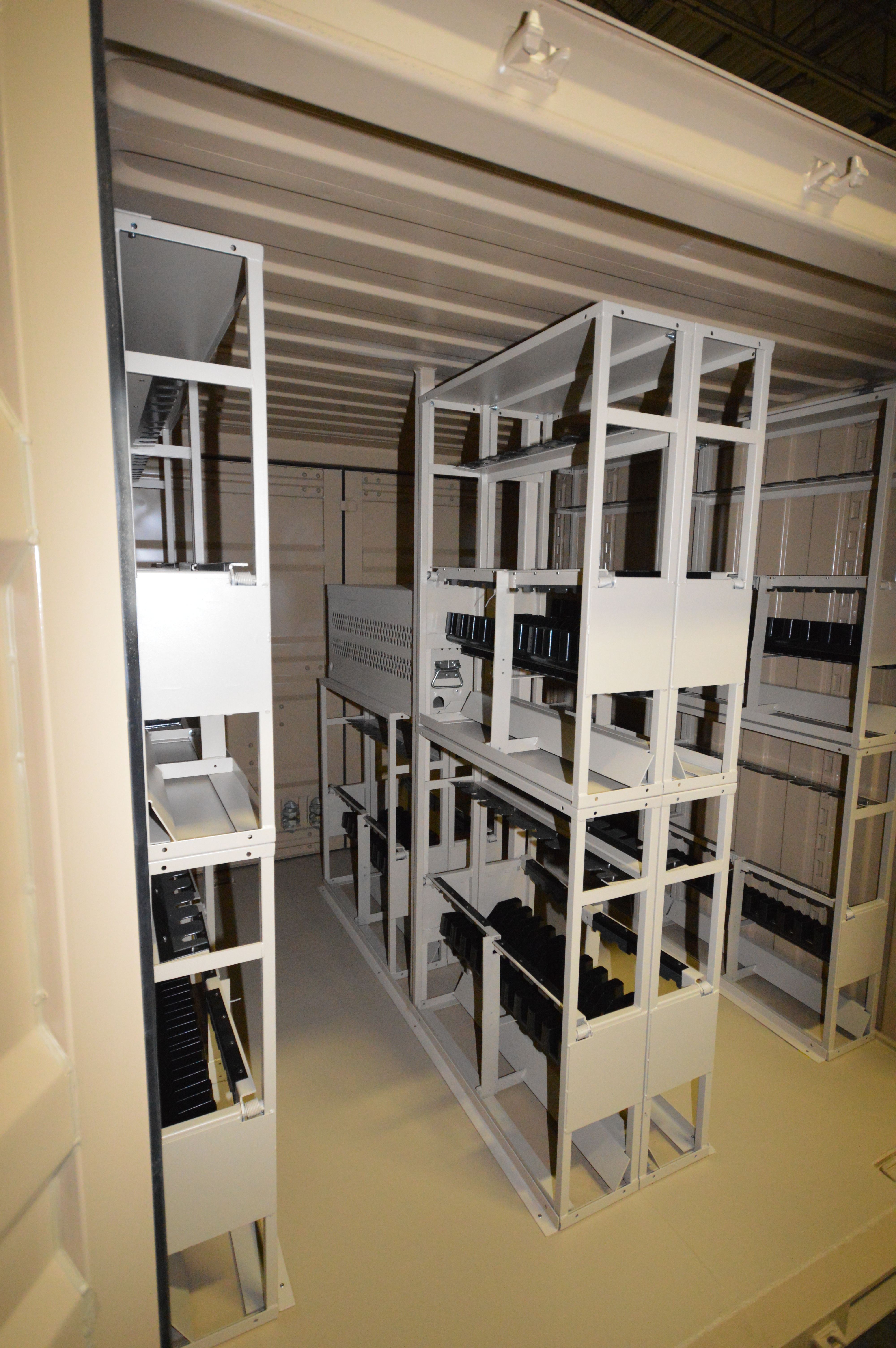

  • (14) WRM12 M-16 Gun Racks with 10-Rifle capacity
  • (1) MWRM930 M-9 Gun Rack with 30-Pistol capacity
  • Steel Floor
  • Four-way fork pockets
  • (12) each floor level steel tie down lashing rings (12) each top side rail, steel, floor tie down lashing rings, all lashing rings are 4,000 lbs. cap. each (24) total
  • (2) each Door sill, recessed floor tie down steel lashing rings, 2 per door 18” in, 4,000 lbs. cap. each (4) total
  • (12) total vertical logistics tracks (“A” or “E” series)
  • Vents, (2) each
  • Green or Tan Exterior Paint

Optional Features

  • CARC Paint
  • Additional or customized weapons racks

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 9, 9 3/4" 9' 3 7/32" 8' 7' 5 1/64" 8' 7' 9 57/64"
Metric 2,991 2,825 2,438 2,261 2,438 2,438
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 3,370 23,090 26,460 538
Kgs 1,530 10,470 12,000 15.23

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
