Part Number: SB3892.0.2S1

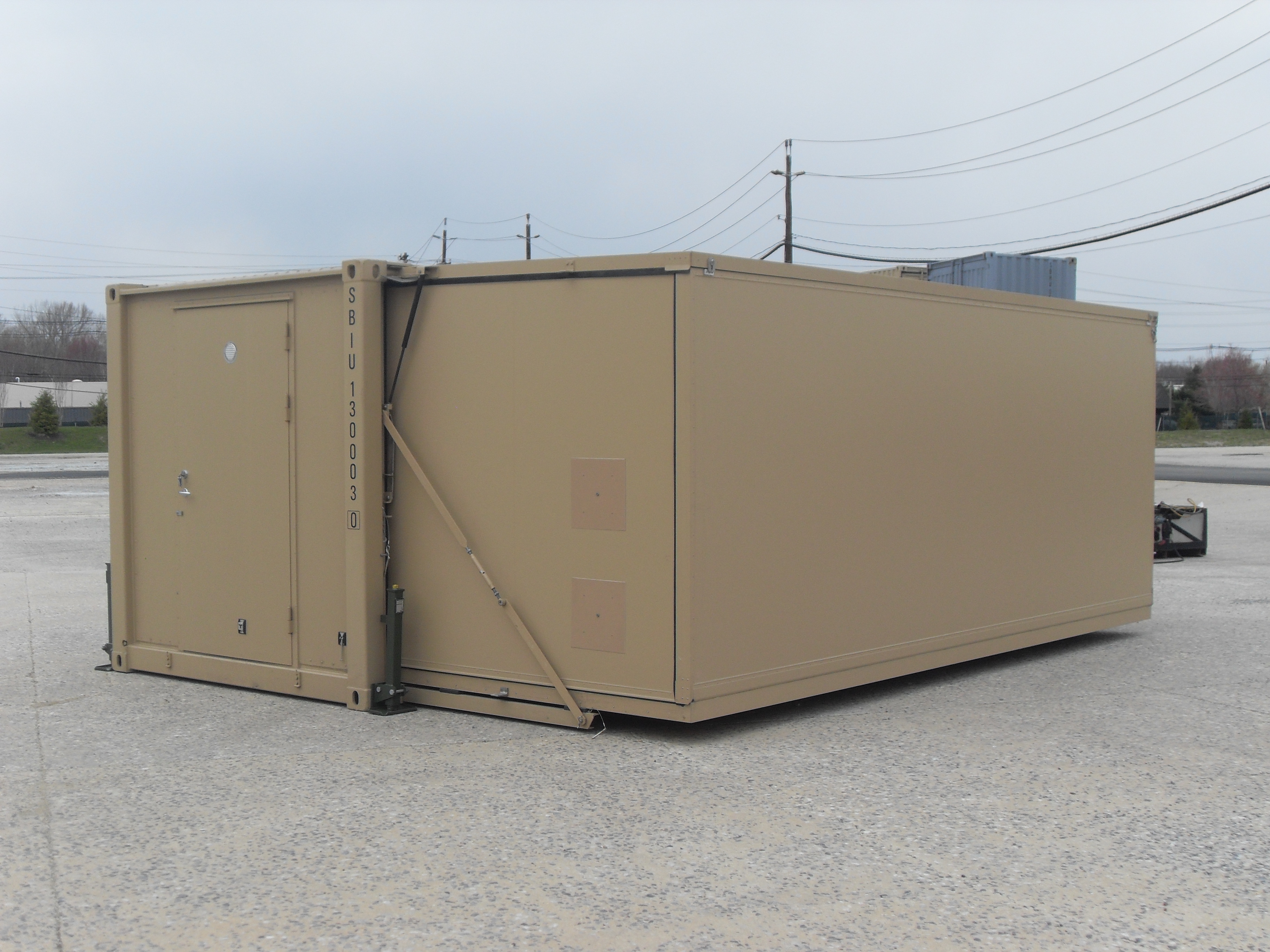

Type: IExpandable sliding shelter increases to twice its size. Allows deployment while on a truck or trailer, doors on both ends.
Length | Height | Width | Door Opening | |||||
Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
Ft in | 19’ 10 1/2”/19’ 10 1/2” | 18’ 10”/18’ 10” | 8’ 0”/7’ 8” | 7’ 0”/7’ 0” / 6’ 8” | 7’ 8”/14’ 9” | 7’ 0”/13’ 11” | 6’ 8”/6’ 8” | 3’ 11”/3’ 11” |
Metric | 6,058/6,058 | 5,750/5,750 | 2,438/2,438 | 2,150/2,145 / 2,045 | 2,438/4,500 | 2,139/4,248 | 2,032/2,032 | 1,200/1,200 |
TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
Lbs | 6,054 | 10,582 | 16,636 | 727 Cu.Ft./1,843 Cu. Ft. |
Kgs | 2,764 | 4,800 | 7,546 | 20.6 Cu.M./52.2 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
