20’ x 8’ ISO Two-Side Expandable Containerized Shelter
Part Number: SB3892.0.3S1
NSN: 5411-01-623-2636

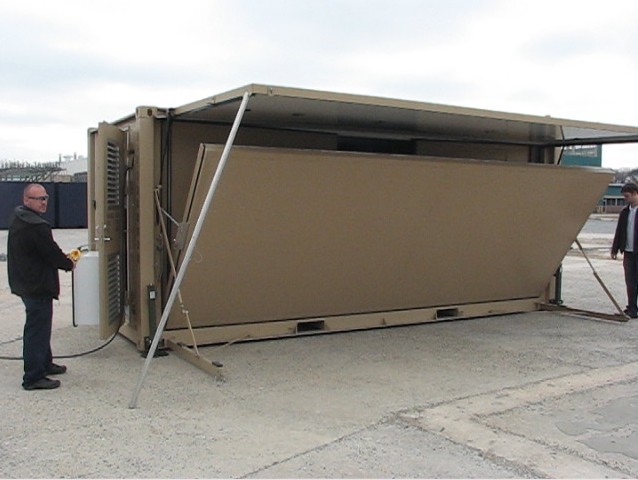

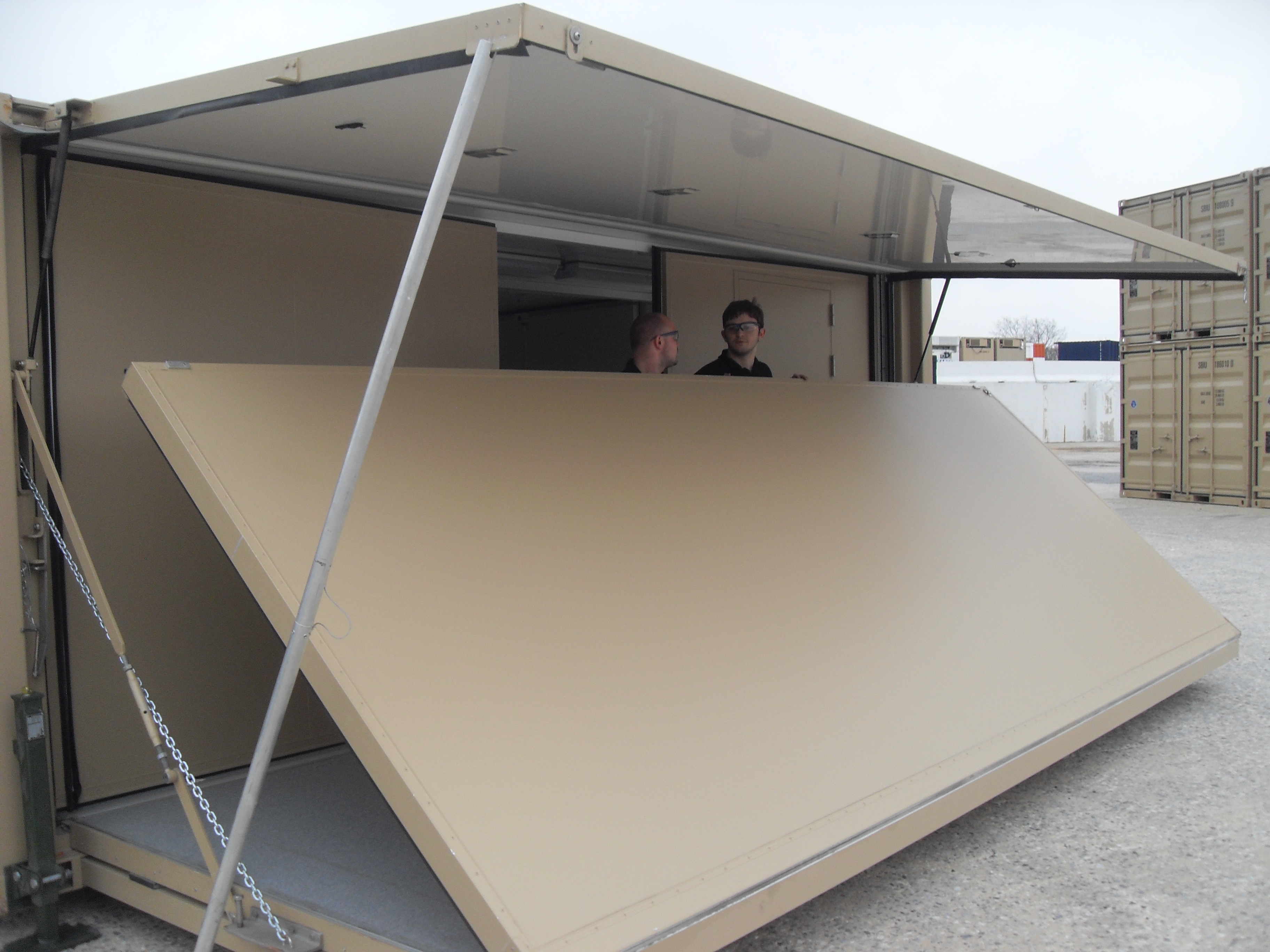

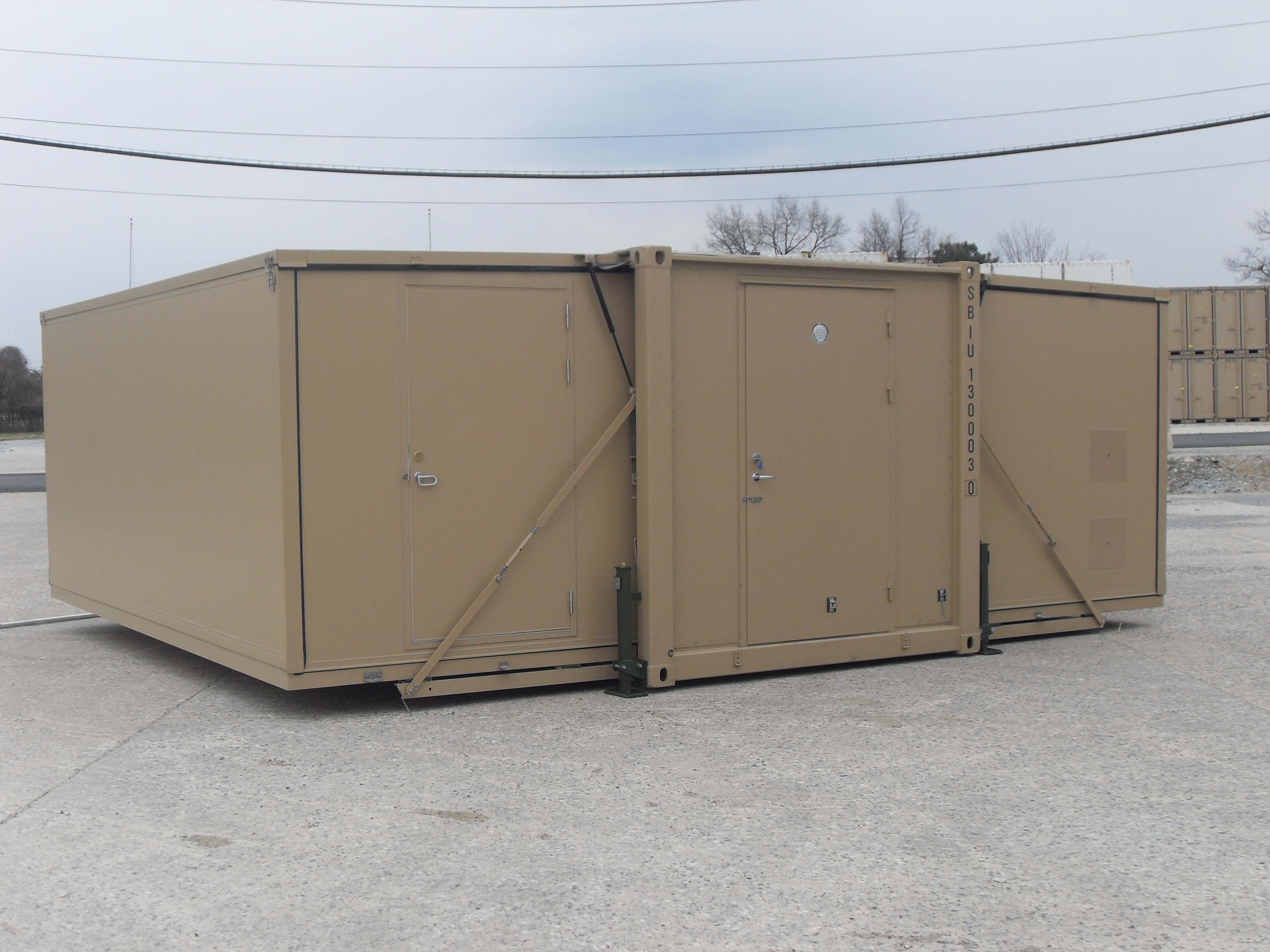

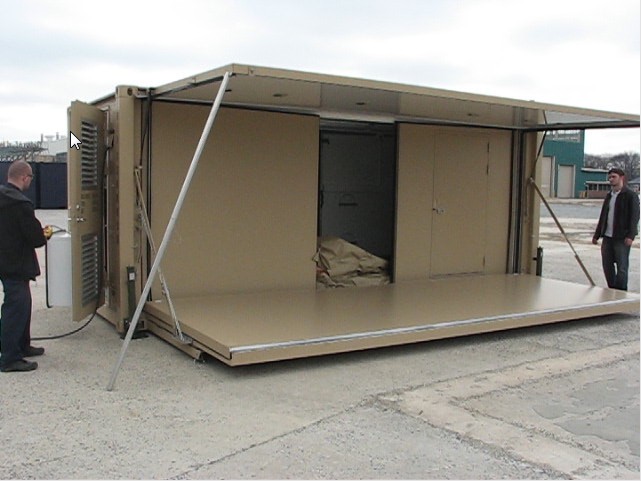

Type: IExpands to triple its size. Allows deployment while on a truck or trailer. Doors on both ends, nine high stacking, 20-minute set up time using two people.
SB3892.0.3S1 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- 20’ x 8’ ISO Container, 9-high stacking
- 20-minute set up time by 2 people including unloading and leveling
- Expanding section is self supporting and allow expansion and use while on a truck or trailer
- Power Input Panel (PIP) for connection to commercial power source
- CFC-free polyurethane foam insulation, thermal value: 0.56 W/m2K
- Highly mobile; can be shipped via major transport systems
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19’ 10”/19’ 10” | 18’ 10”/18’ 10” | 7’ 8”/7’ 8” | 7’ 0”/7’ 0” / 6’ 8” | 7’ 8”/21’ 3” | 7’ 0”/20’ 10” | 6’ 8”/6’ 8” | 3’ 11”/3’ 11” |
| Metric | 6,058/6,058 | 5,750/5,750 | 2,438/2,438 | 2,145/2,145 / 2,045 | 2,438/6,470 | 2,139/6,350 | 2,032/2,032 | 1,200/1,200 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 7,055 | 10,340 | 17,637 | 999 Cu. Ft./2,779 Cu. Ft. |
| Kgs | 3,200 | 4,700 | 8,000 | 28.3 C/u. M./78.7 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
