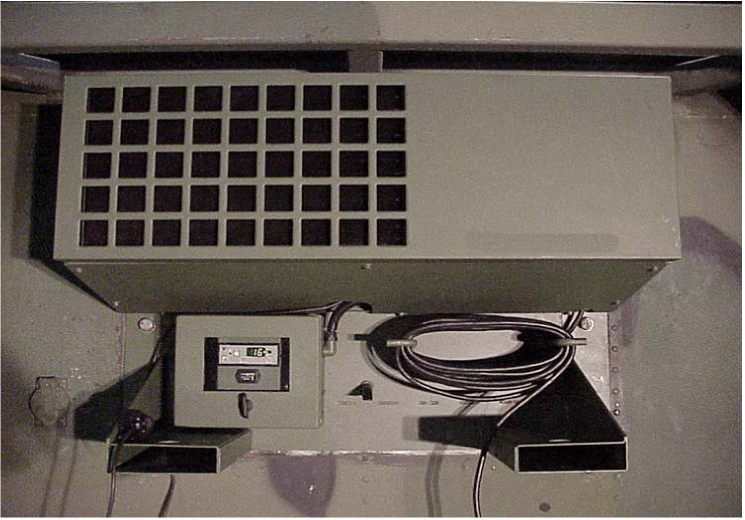

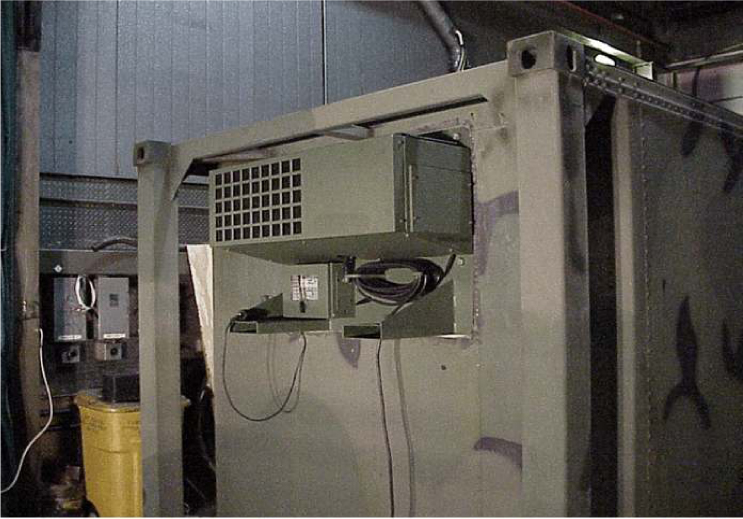

Small Field Refrigeration Unit
Part Number: SB405
NSN: 4110015929689
For use with Tricon sized refrigerated container
Technical Manual
SB405 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote

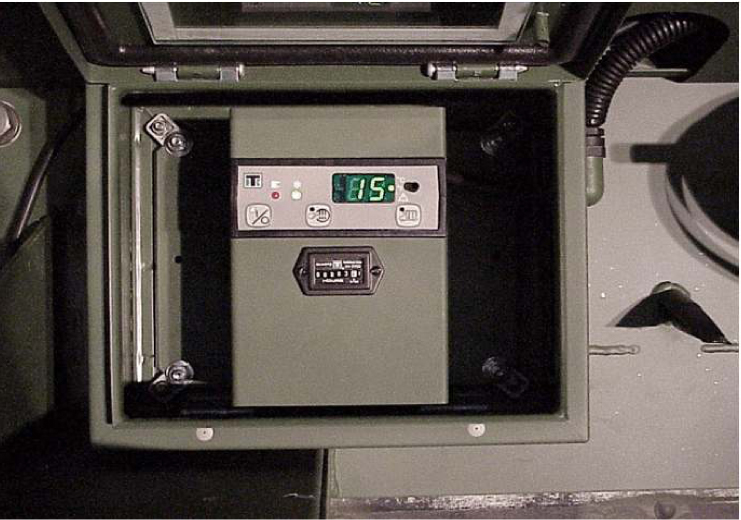

- M13 Controller
- Digital Thermometer
- Electronic Thermostat, adjustable from -26 F to 86 F
- Defrost Timer
- Hot Gas Defrost
- Defrost Termination Switch
- Manual Defrost Switch
- Receiver Tank with Outlet Service Valve
- 2HP Semihermetic Compressor 50/60 Hz
- Compressor Thermal Protection
- Hourmeter
- 100W Lamp Plug
- Draining Heater Wire Resistances
- Electric Resistant Heaters (750 W)
- Operations Manual and Parts List Manual
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | ||||||||
| Metric | ||||||||
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 6,880 | 60,320 | 67,200 | 944 cu. ft. |
| Kgs | 3,120 | 27,360 | 30,480 | 26.7 cu. m. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
