40’ ISO Flatrack with Single Ramp

Part Number: SB4774

Type: I

ISO Cargo Container

Flatrack with Ramp on One End Wall

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote

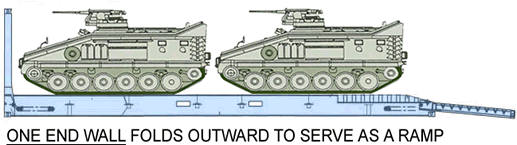

  • One end wall folds outward to serve as a ramp with the additional wheel ramps for ease of loading trucks
  • Ramp end wall is counter balanced for 2-man operation
  • Storage pockets are provided for wheel ramps
  • End wall folding flush with the floor
  • 50-ton gross or more
  • Spare parts available worldwide
  • Designed for vehicles with 10,000 lbs. cap. (per axle) on ramp
  • TYPICAL LASHINGS AND INTERFACING
  • Lashing: 6 x 5000kg lashing bars
  • Floor: 45mm softwood planks, 6mm gaps
  • Goosneck Tunnel: both ends
  • Fork pockets: 115 x 360mm
  • Twistlocks: 1 piece forged lift element, 30 degree stainless steel detent
  • Header locks: 2 per end semi-automatic
  • Corner locking: hammer locked conical pin
  • Approvals: ABS, LRS, BV, UIC, CSC, TCT
  • 7 High Stacking Gross Weight: 60,000 lbs
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 40’ 0” 39’ 11 1/2” 8’ 6” 6’ 5” 8’ 0” 7’ 11” 2’ 1 1/2”
Metric
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 11,500 98,730 110,230
Kgs

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
