20’ ISO Flatrack with Ramp on Both End Walls

Part Number: SB4776

NSN: 8150-01-565-9039

Type: I

Flatrack with Ramp on Both End Walls

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote

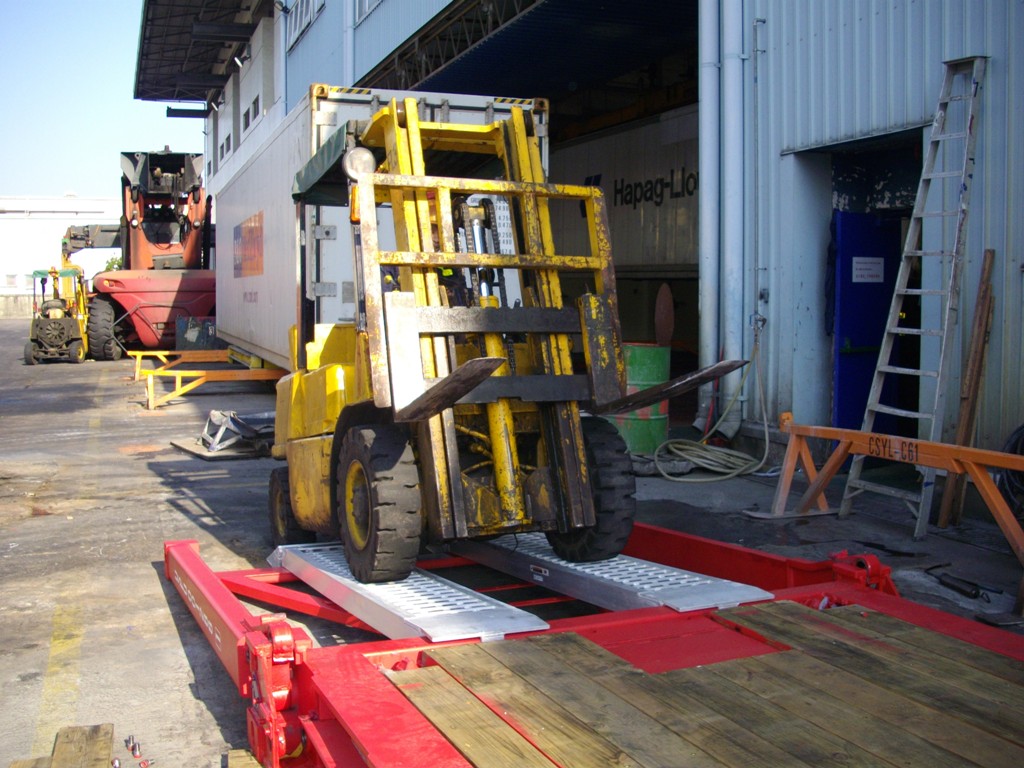

  • Both end walls fold outward to serve as a ramp with the additional wheel ramps for ease of loading trucks
  • Ramp end walls are counter balanced for 2-man operation
  • Storage pockets are provided for one set of wheel ramps
  • Both end walls folding flush with the floor
  • 30-ton gross weight
  • Spare parts available worldwide
  • Designed for vehicles with 10,000 lbs. cap. (per axle) on both ramps
  • Standard Marine Paint (Color: RED)
  • TYPICAL LASHINGS AND INTERFACING
  • Floor: 45mm softwood planks, 6mm gaps
  • Fork pockets: 115 x 360mm
  • Twistlocks: 1 piece forged lift element, 30 degree stainless steel detent
  • Header locks: 2 per end semi-automatic
  • Corner locking: hammer locked conical pin
  • Approvals: ISO + CSC
  • 9 High Stacking Gross Weight: 48,000
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 10 1/2” 19' 6" 8’ 6” 7’ 5 1/2” 8’ 0” 7’ 11” 1’ 2 1/2”
Metric
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 6,700 68,260 74,960
Kgs

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
