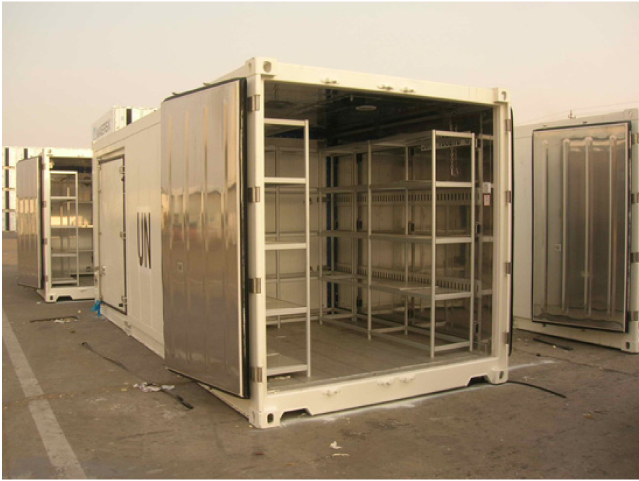

20’ x 8’6” Refrigerated ISO Container with Compartments
Part Number: SB541.6.UN
Type: IRefrigerated ISO container with interior wall partition. Double doors on one end. Single cargo door on one side.
SB541.6.UN BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- (1) set of laden fork lift pockets
- (1) Double full opening swing cargo doors on one end with seal-able screened ventilation port, SS hinges and SS locking bars
- (1) single cargo door on one sides
- Emergency escape door hardware on both rear and side doors
- Heavy-duty aluminum floor, reinforced for pallet use
- Temperature range from –25C to 25C
- (1) movable interior wall partition (creates 2 compartments)
- (2) internal lights with (2) switches (1 per compartment)
- (2) “locked in” alarm buttons (1 per compartment)
- (5) sets shelves, food grade, flat packed, with 5 web straps
- Warranty, 3 year workmanship
- Certified: ATP, NZ, AU, EEC, USDA Health Code & Food Hygiene
- ISO certified, customs approved, UIC, TIR
- Operations manual and parts list manual
- Brackets for clip-on generator are provided
- Refrigeration unit: Carrier model # 69-NT40 220/230, 380/460 VAC, 3 phase, 50-60 Hz 220/230 plug & 380/460 plug
- (2) each, single interior outlets, 115 VAC, 1 phase, 60 Hz, 15 amp, NEMA L15 (1 per compartment)
- Clip-on generator set: 15 KW, 400/460 VAC, 3 phase, 50-60 Hz
- Carrier reefer unit may be equipped with 30 amp CEE heavy-duty outlet with mechanical interlock switch to run only 1 reefer at a time
- Carrier reefer unit may be equipped with 60 amp CEE heavy-duty outlet, to run 2 reefers at a time and upgrade SO cable and 460 VAC plug to 60 amp rated
- De-humidity controls on the Carrier reefer unit
- Shelving (an upgrade from shelving) flat packed in cardboard box to be fully assembled and installed, strapped to the interior walls of the container
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19' 10 1/2" | 17' 5 1/2" | 8’ 6” | 7’ 4 1/2” | 8’ 0” | 7’ 4” | 7' 4 1/2" | 7' 4" |
| Metric | 6,058 | 5,321 | 2,591 | 2,248 | 2,438 | 2,235 | 2,248 | 2,235 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 6,880 | 60,320 | 67,200 | 944 Cu. Ft. |
| Kgs | 3,120 | 27,360 | 30,480 | 26.7 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
