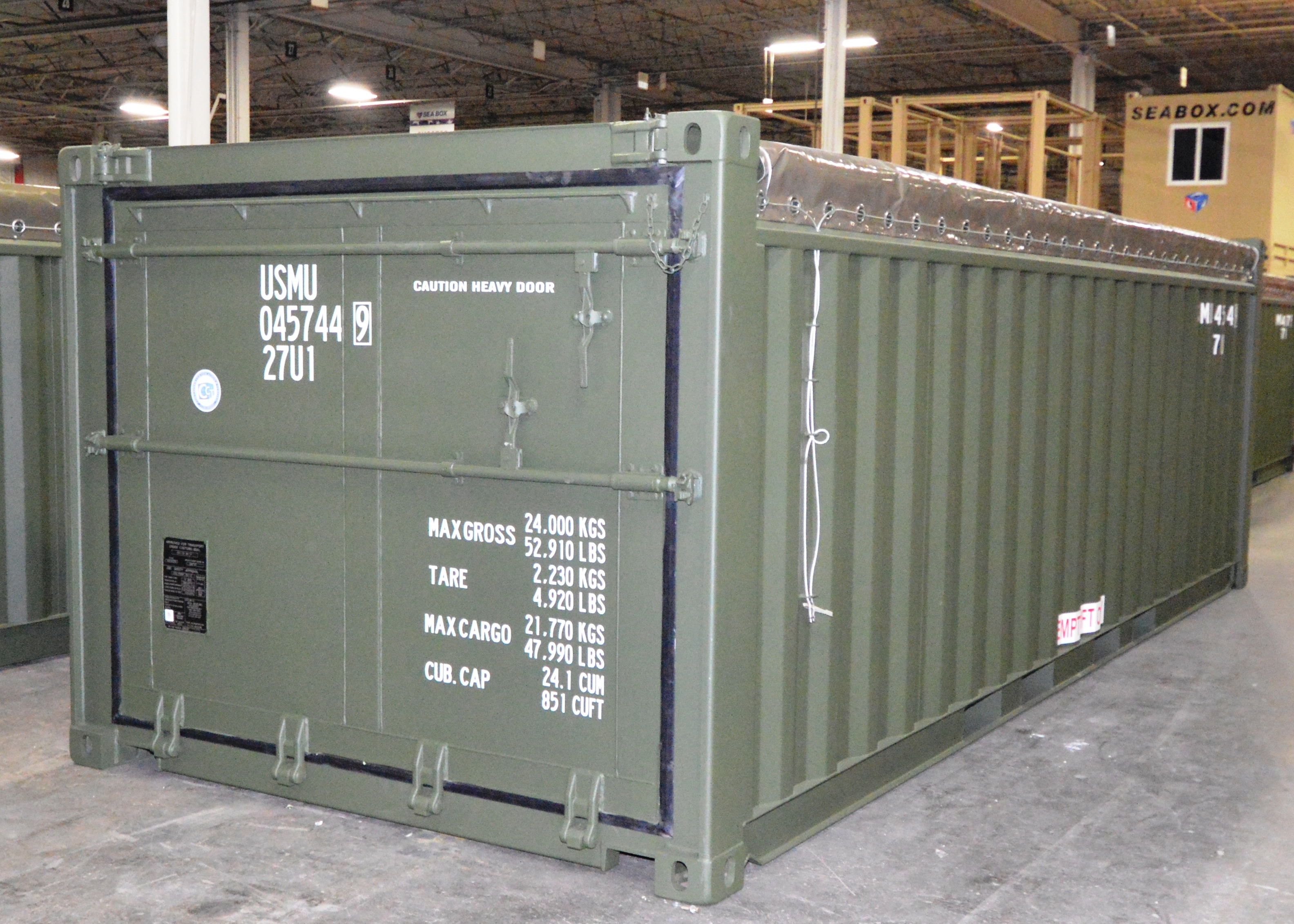

20’ X 6’ 6” High Open Top ISO Cargo Container with Ramp Door
Part Number: SB6135
Type: I20’ X 6’ 6” High Open Top ISO Cargo Container with Ramp Door
Double doors on one End.
SB6135 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- 14 gauge corrugated steel sides
- Heavy duty steel ramp door
- 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
- Tie down steel lashing rings, 4000 lbs. cap. each
- (2) way laden fork lift pockets
- Heavy duty tarp
- Security roof tarp locking cable
- 14 gauge locking steel double end swing doors
- Heavy duty steel floor
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19’ 10 1/2” | 19’ 1/32” | 6’ 6” | 5’ 8 1/2” | 8’ 0” | 7’ 8 19/32” | 5’ 5 53/64” | 6’ 11 33/64” |
| Metric | 6,058 | 5,894 | 1,981 | 1,740 | 2,438 | 2,352 | 1,672 | 2,114 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 4,920 | 47,990 | 52,910 | 851 Cu.Ft. |
| Kgs | 2,230 | 21,770 | 24,000 | 24.1 Cu.M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
