SEA BOX | 20’ Insulated Personnel Shelter
Privacy Policy - Use of Our Website or any Website Functions Constitutes Acceptance of Our Policy / More Information

20’ Insulated Personnel Shelter

Part Number: SB6408

Type: I

Insulated walls, ceiling and doors. Double doors on one end and man door on front.

If your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote

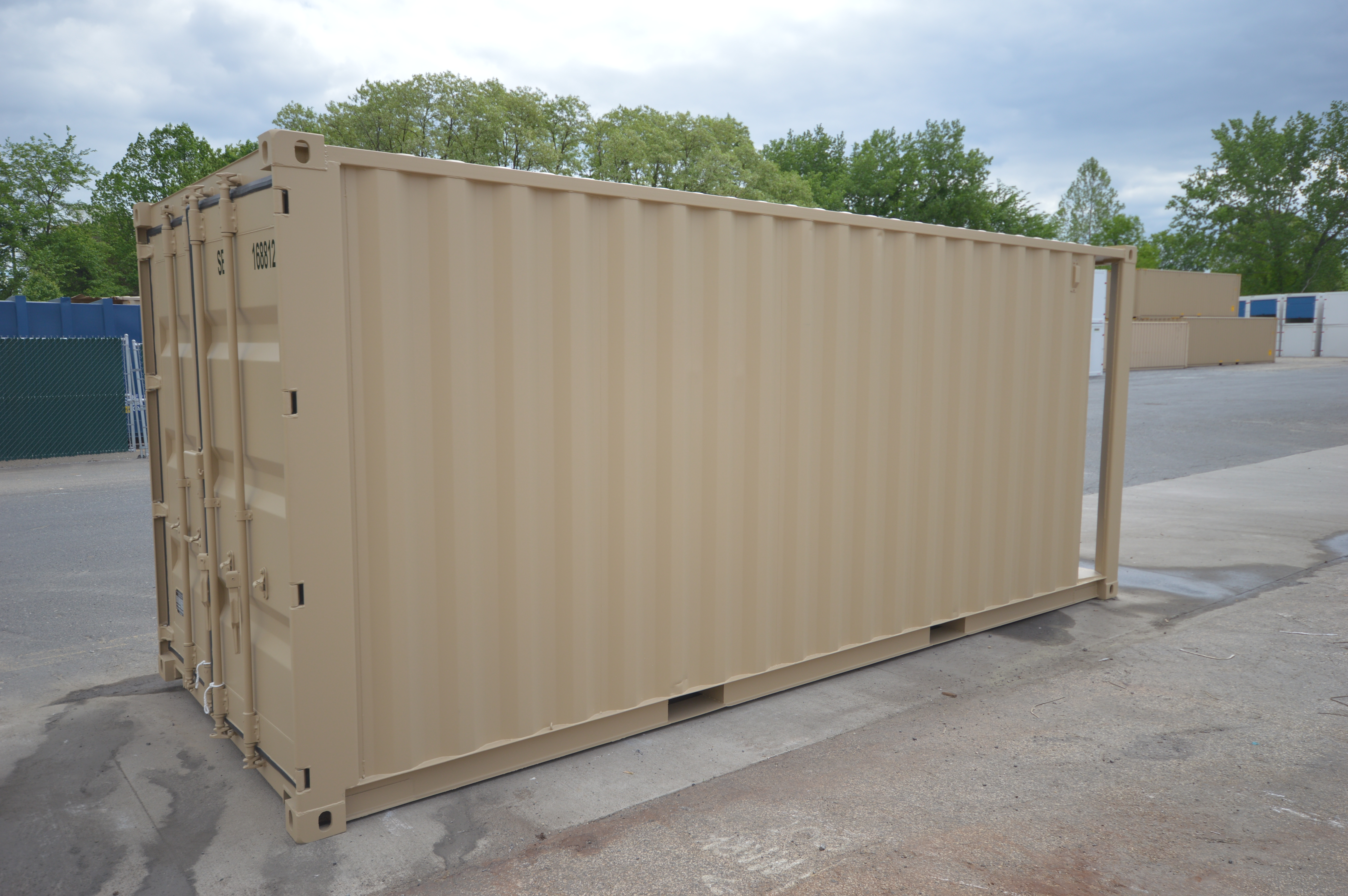

  • Corrugated steel sides and roof
  • 14 gauge locking steel double end swing doors on side
  • Insulated, lockable man door on front
  • 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
  • Two-way laden fork lift pockets
  • Recessed 2-ton Bard HVAC unit

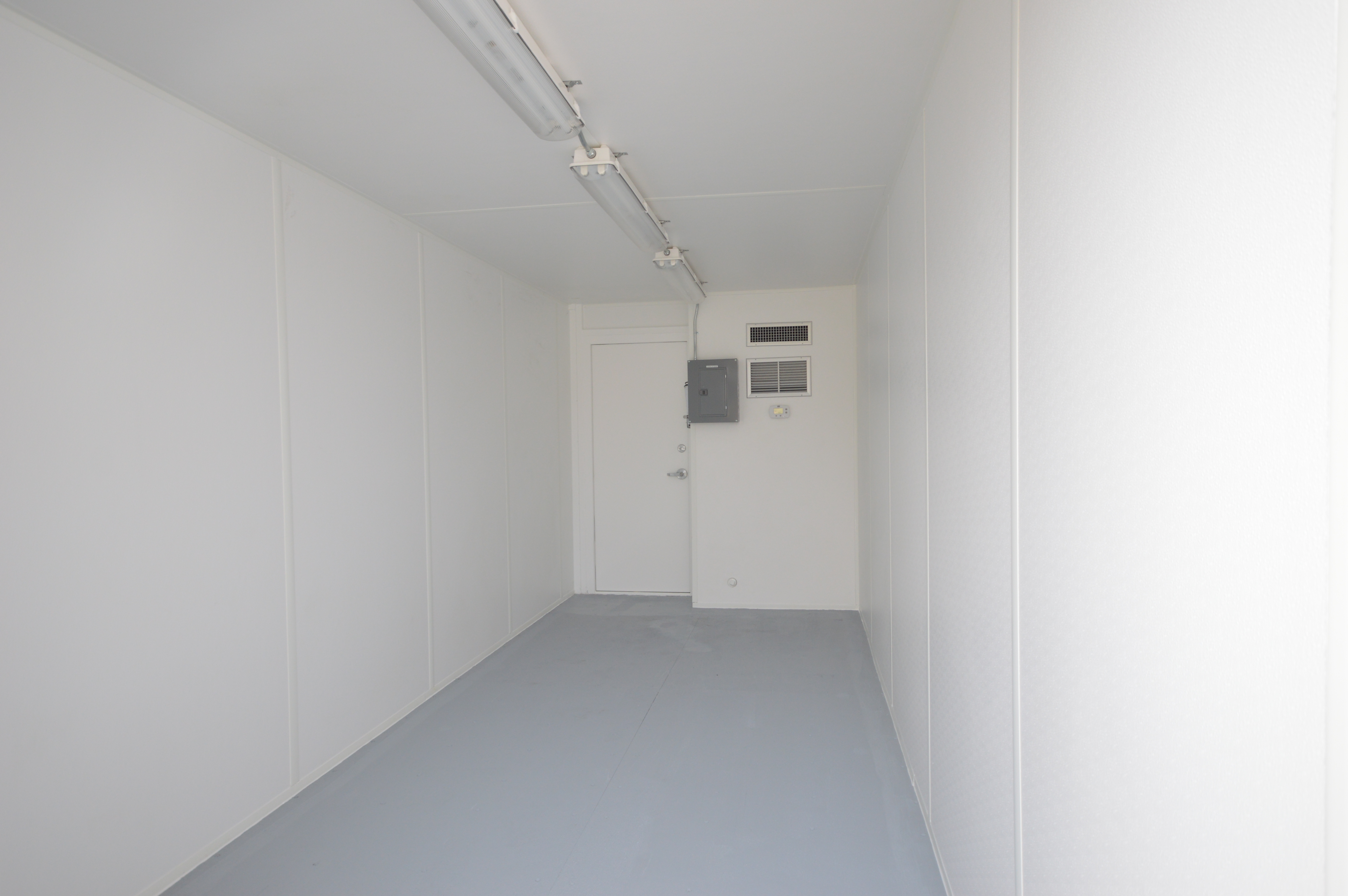

  • Insulated walls and ceiling
  • Electrical system and fluorescent lighting
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 19’ 10 1/2” 19’ 8’ 6” 7’ 7 57/64” 8’ 0” 7’ 4” 7’ 5 41/64” 7’ 8 1/2”
Metric 6,058 5,791 2,591 2,334 2,438 2,235 2,277 2,350
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs 9,100 43,810 52,910 1,167 Cu. Ft.
Kgs 4,128 19,872 24,000 33 Cu.M.

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
