Quadcon Dry Freight ISO Container (6’10"H) (USMC)
Part Number: SB812.M
NSN: 8145-01-556-1313
Type: IIDouble doors both sides (Type 2) Quadcon Dry Freight ISO Cargo Container
SB812.M BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides, roof, and swing doors on both sides
- Four-way forklift pockets
- Wall tie down steel lashing rings, 4,000 lbs. cap. (20) total
- (10) Vertical E-track sections, (5) per side
- (1) each, Container coupler storage bracket holds (3) couplers each
- Vents, (2) each: one per door panel
- GREEN 34094 Exterior/Interior paint
- (4) full size shelving system provides (8) each, transverse shelf halves, with non-slip polyuria surface coating with (32) shelf brackets (of which 8 are floor welded), recessed tie down bars per shelf half, (8) each
- Adjustable shelving E-track, (4) sets
- (2) each, Caster wheel storage brackets holds (2) casters each
- Web straps with ratchets, 48” x 1” (LxW), 700 lbs. SWL (64) each
- Caster Wheels, (4) each: (2) swivel & (2) fixed 9” diameter wheel, 1/2” thick polyurethane band 3,000 lbs. working load each, 12,000 lbs. capacity total all equipped with brakes and twist locks
- Additional transverse shelf halves with 1 set of 4 shelf brackets
- Additional shoring & decking beams
- Additional web straps with ratchets
- Tow Bar
- Closeable air vents, (2) each
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 4’ 9 3/8” | 4' 7 3/4" | 6’ 10” | 6' 3 1/16" | 8’ 0” | 7’ 6 9/16” | 5' 11 3/16" | 4’ 5 5/8” |
| Metric | 1,457 | 1,417 | 2,083 | 1,907 | 2,438 | 2,300 | 1,808 | 1,362 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 2,000 | 9,200 | 11,200 | 220 Cu. Ft. |
| Kgs | 907 | 4,173 | 5,080 | 6.22 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
Related Products

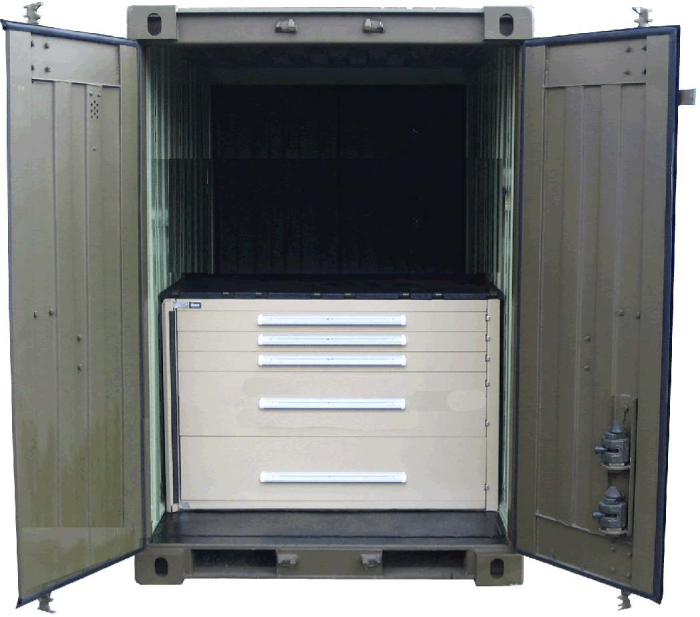

Quadcon Dry Freight ISO Container with Five-Drawer Cabinet with 1 Cabinet and 5 Drawers (SB812.CT1-5D.DLA)
