Tricon ISO Container (Type 1) with Cabinets and Drawers
Part Number: SB821.0.CT88D
NSN: 8150-01-619-6162, 8150-01-619-6840
Type: ITricon Dry Freight ISO Cargo Container

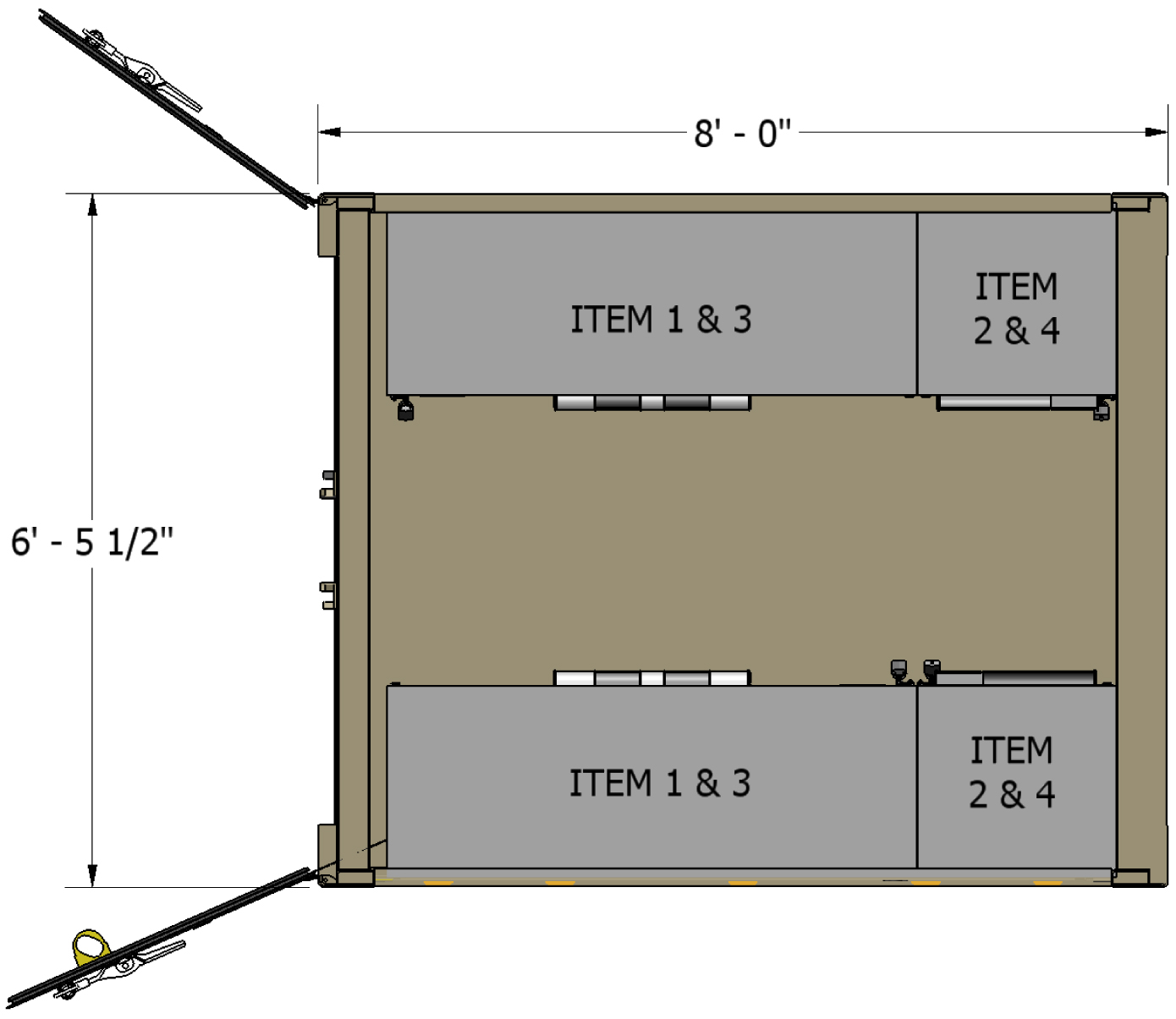

Tricon ISO Container with eight (8) cabinets , eight (8) drawers each. Double doors on one side.
SB821.0.CT88D BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- CONTAINER
- Corrugated steel sides, roof + swing doors on (1) side
- Heavy duty steel floor
- (4) way fork lift pockets
- Vents, (2) each
- Connecting couplers, (3) per Tricon
- Connecting coupler storage bracket (1) each
- Ext. Paint Color Choice of OD Green or Standard Tan

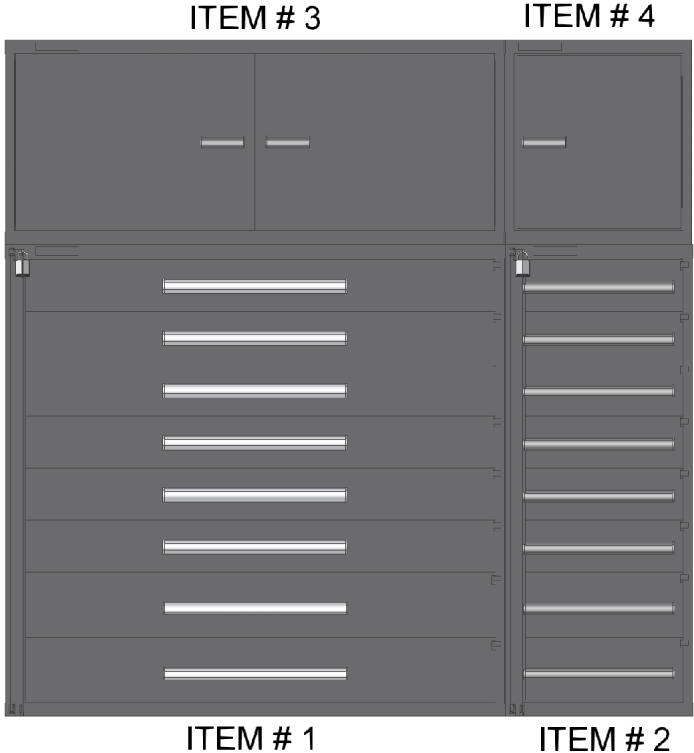

- CABINETS
- Featuring Stanley Vidmar Cabinets designed for mobile transport, all with LIFETIME Warranty
- 2 each 60” Wide Base Cabinet with 16 Drawers Total
- 2 each 22.5” Wide Base Cabinet with 16 Drawers Total
- 2 each 22.5” Wide Top with 1 Swing Door
- 2 each 60” Wide Top with 2 Swing Doors
- Modular Cabinet Design for Maximum Flexibility and Interchangeability
- 400lb. Capacity Drawers
- Superior Quality and Construction
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 6’ 5 9/16” | 6’ 3 25/64” | 8’ 0” | 7’ 5 9/64” | 8’ 0” | 7’ 7 23/32” | 7’ 1 43/64” | 6’ 1 25/32 |
| Metric | 1970.09 | 1914.92 | 2438.4 | 2264.17 | 2438.4 | 2329.66 | 2176.07 | 1874.04 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 4,750 w/ cabinets | 10,150 | 14,900 | |
| Kgs |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
