Tricon ISO Container (Type 2) with Cabinets on One Side
Part Number: SB822.0.CT47D
NSN: 8150-01-619-7983, 8150-01-620-0078
Type: IITricon Dry Freight ISO Cargo Container

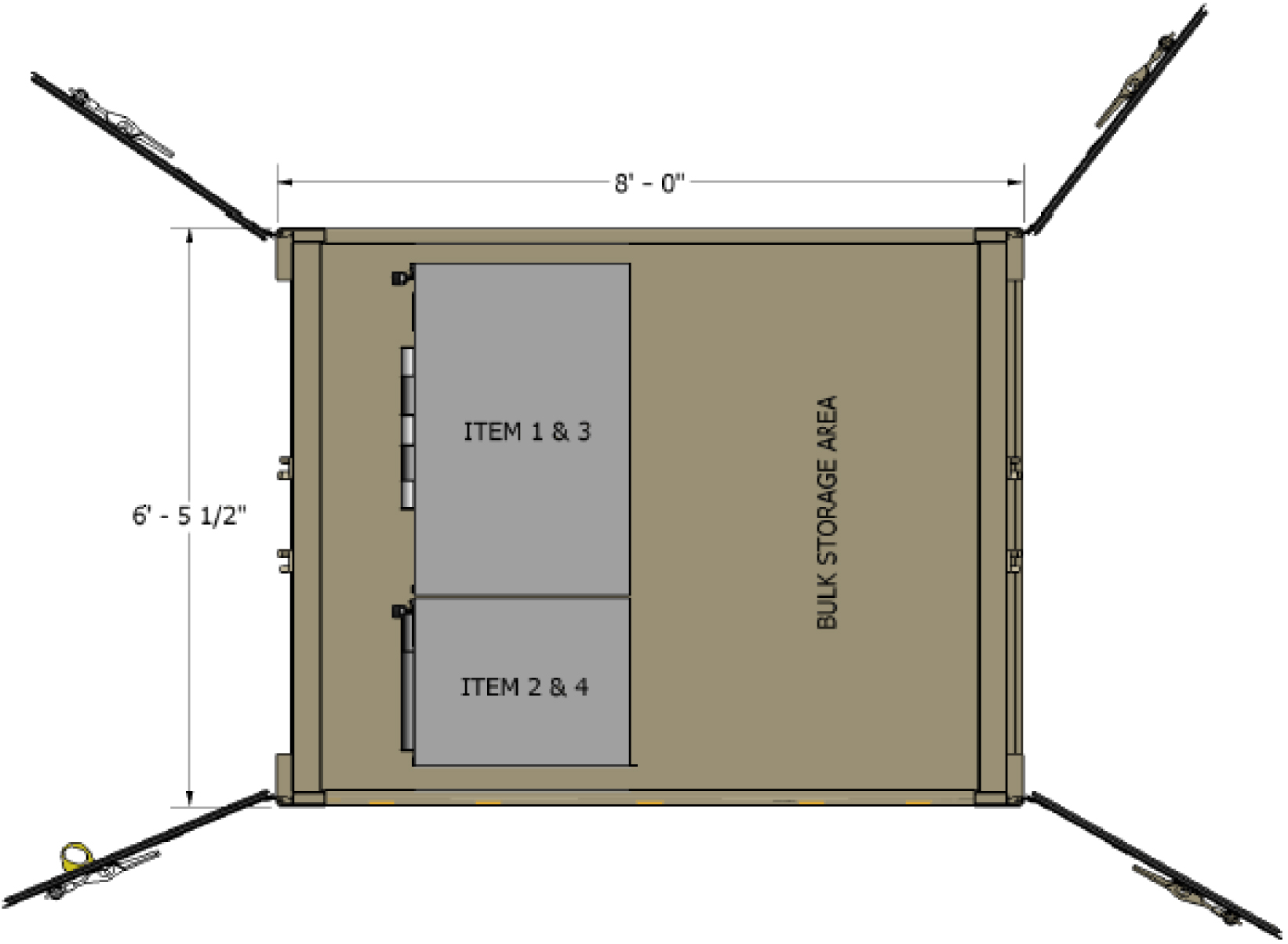

Tricon ISO Container with four (4) cabinets, seven (7) drawers each. Double doors on both sides.
SB822.0.CT47D BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- CONTAINER
- Corrugated steel sides, roof + swing doors on both sides
- Heavy duty steel floor
- (4) way fork lift pockets
- Vents, (2) each
- Connecting couplers, (3) per Tricon
- Connecting coupler storage bracket (1) each
- Ext. Paint Color Choice of OD Green or Standard Tan

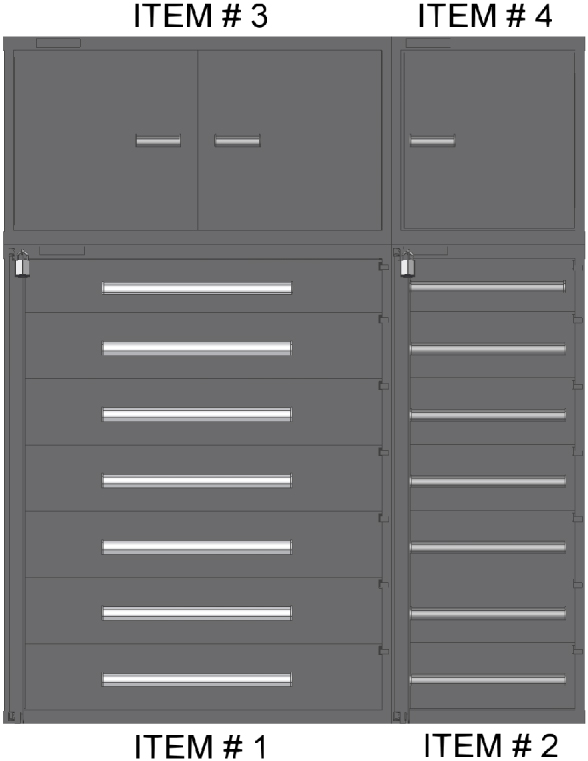

- CABINETS
- Featuring Stanley Vidmar Cabinets designed for mobile transport, all with LIFETIME Warranty
- 1 each 45” Wide Base Cabinet with 7 Drawers
- 1 each 22.5” Wide Base Cabinet with 7 Drawers
- 1 each 22.5” Wide Top with 1 Swing Door
- 1 each 45” Wide Top with 2 Swing Doors
- Modular Cabinet Design for Maximum Flexibility and Interchangeability
- 400lb. Capacity Drawers
- Superior Quality and Construction
- Custom configurations upon request
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 6’ 5 9/16” | 6’ 3 25/64” | 8’ 0” | 7’ 5 9/64” | 8’ 0” | 7’ 5 17/32” | 7’ 1 43/64” | 6’ 1 25/32” |
| Metric | 1843.09 | 1914.92 | 2438.4 | 2264.17 | 2438.4 | 2274.09 | 2176.07 | 1874.04 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 3,900 w/ cabinets | 11,000 | 14,900 | |
| Kgs | 1769.01 | 4989.52 | 6758.53 |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
