10’ x 8’6” Bicon Dry Freight ISO with Cargo Doors Both Ends
Part Number: SB842.6
Type: IIISO Cargo Container, Double doors both ends.
SB842.6 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides, and roof
- 14 gauge locking steel double end swing doors
- 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
- Tie down steel lashing rings, 4000 lbs. cap. each
- Two-way fork lift pockets
- Vents, (2) each
- Connecting couplers, (2) per Bicon
- Connecting coupler storage bracket (1) each
- Manifest box (2) each
- Adjustable shelving brackets (4) sets
- Decking and shoring beams (16) each
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 9’ 9 3/4” | 9’ 1 3/8” | 8’ 6” | 7’ 10 1/4” | 8’ 0” | 7’ 8 17/32” | 7’ 5 11/16” | 7’ 8 11/64” |
| Metric | 2,991 | 2,778 | 2,591 | 2,394 | 2,438 | 2,350 | 2,278 | 2,341 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 3,350 | 23,105 | 26,455 | 552 Cu.Ft. |
| Kgs | 1,520 | 10,480 | 12,000 | 15.6 Cu.M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
Related Products

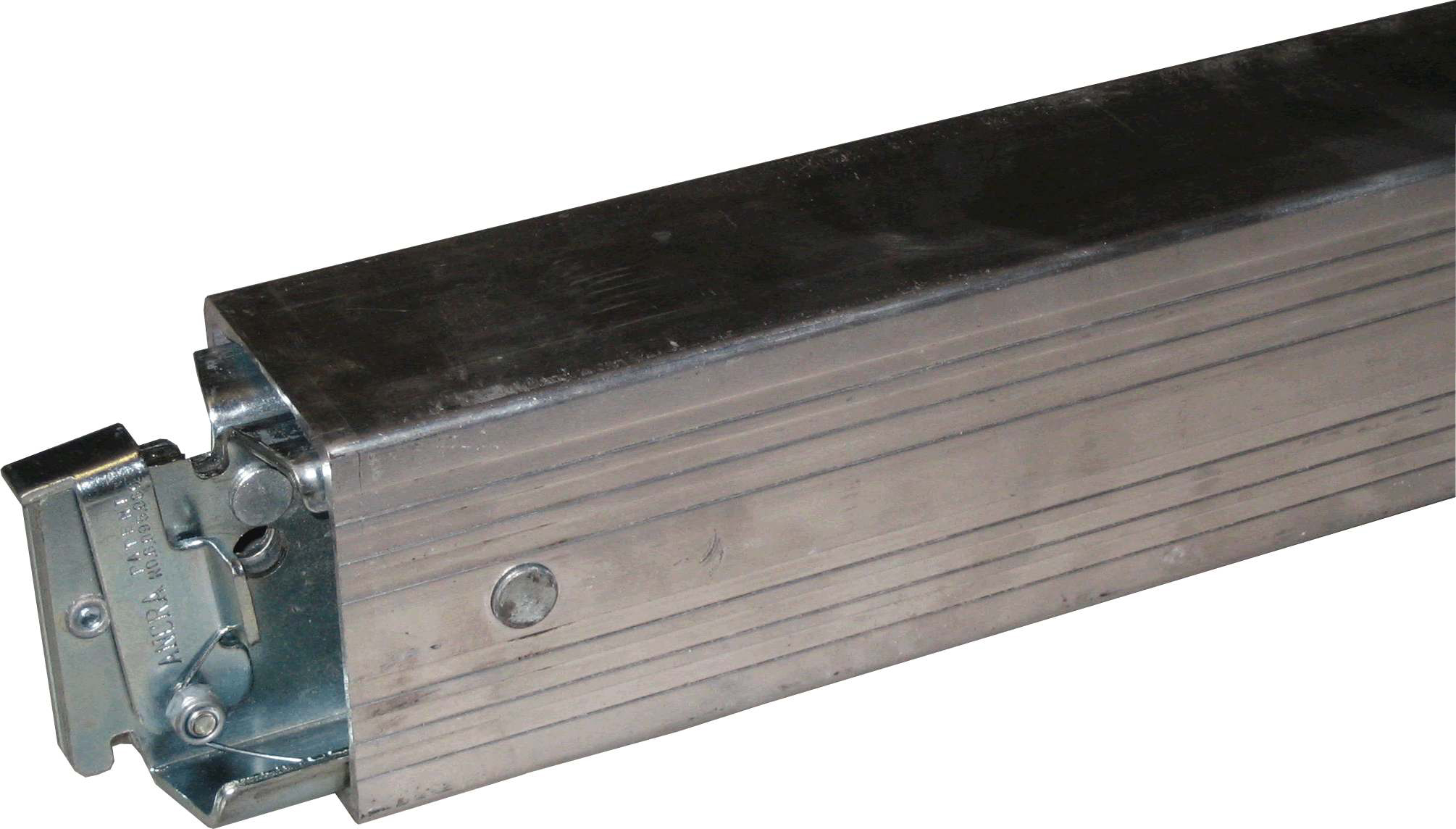

SB6100 - Shoring & Decking Beam (20’ Standard) (SB6100)
