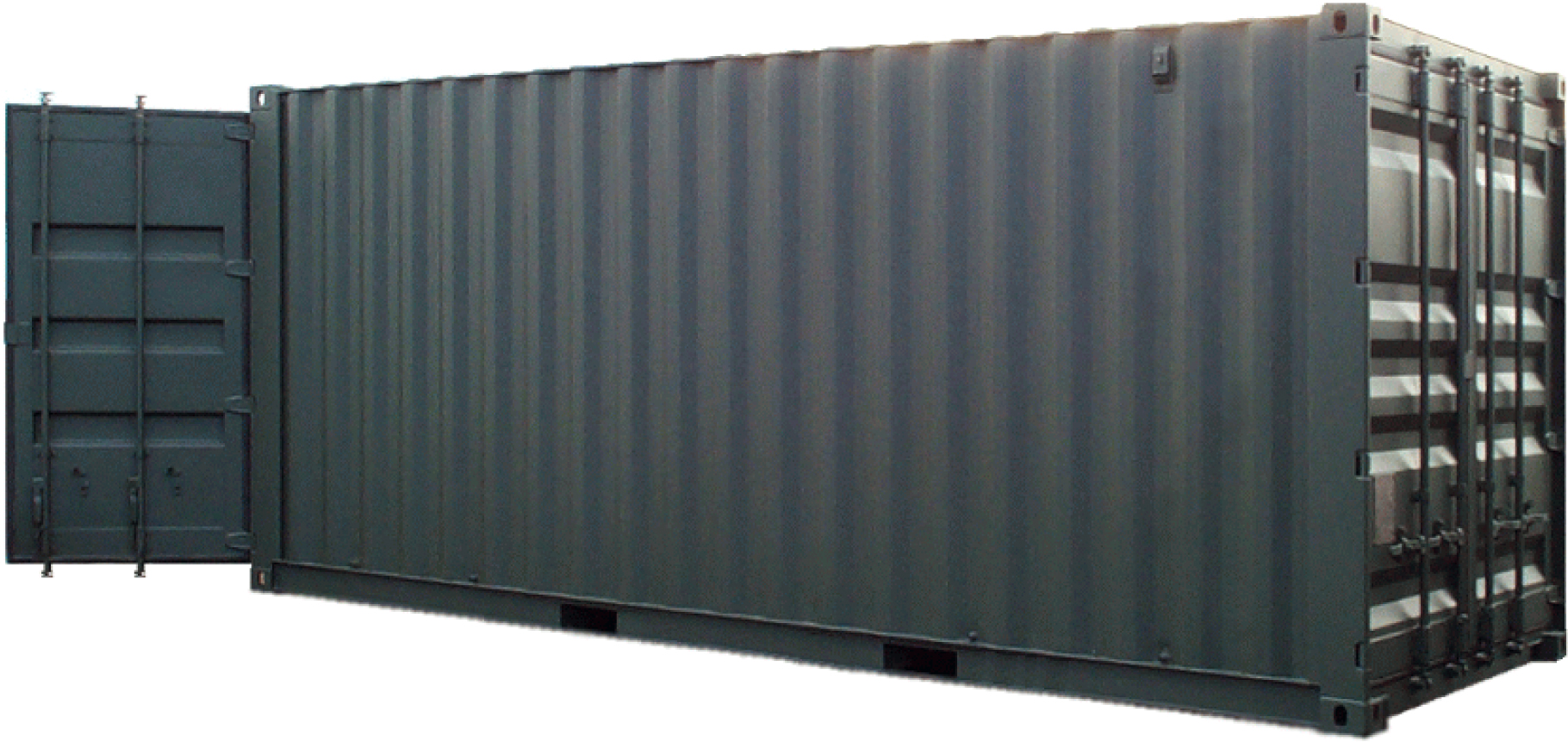

20 ft x 8 ft Dry Freight ISO Container with Double Doors on Both Ends
Part Number: SB862.0
NSN: 8150-01-552-0728, 8150-01-527-2877, 8150-01-551-3125, 8150-01-491-2678
Type: II20' x 8' Dry freight ISO container with double doors on both ends
SEA BOX offers a large selection of 20' ISO dry freight storage containers for military and commercial use. Also known as a Conex Box or Milvan, our 20' ISO dry freight storage containers come in several different heights with various door configurations and are available in standard or custom colors with or without Chemical Agent Resistant Coating (CARC) paint. SEA BOX 20' ISO dry freight containers are available for sale or rent and are ideal for for temporary storage or permanent storage. We have a large inventory of new and used 20' containers and are easily transportable via land, air, and sea and can be modified or customized to accommodate virtually any type of cargo.
SB862.0 Brochure
- Corrugated steel sides, roof, and swing doors on both ends
- (2) sets of forklift pockets, laden and unladen
- 1 1/8” thick marine plywood floors, forklift tested to 16,000 lbs per 44 square inches
- Top and bottom wall tie down steel lashing rings, 4,000 lbs. cap. each (24 total) tested at 6,000 lbs.
- Each door corner post has (4) shoring slots to accomodate a 2” x 6” lumber restraint system
- Vents, (2) each
- Military Standard 595B #34094 Standard Green or 595B #33446 Standard Tan exterior paint
- Manifest box (2) each
- Military Standard 595B #34094 CARC Green or 595B 33446 CARC Tan exterior paint
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19’ 10 1/2” | 19’ 2 1/16” | 8’ 0” | 7’ 4 3/16” | 8’ 0” | 7’ 8 1/2” | 6’ 11 5/8” | 7’ 8 1/8” |
| Metric | 6,058 | 5,844 | 2,438 | 2,240 | 2,438 | 2,350 | 2,125 | 2,340 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 5,350 | 47,560 | 52,910 | 1,086 Cu.Ft. |
| Kgs | 2,427 | 21,573 | 24,000 | 30.8 Cu.M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
