Part Number: SB863.0.ST.THAAD

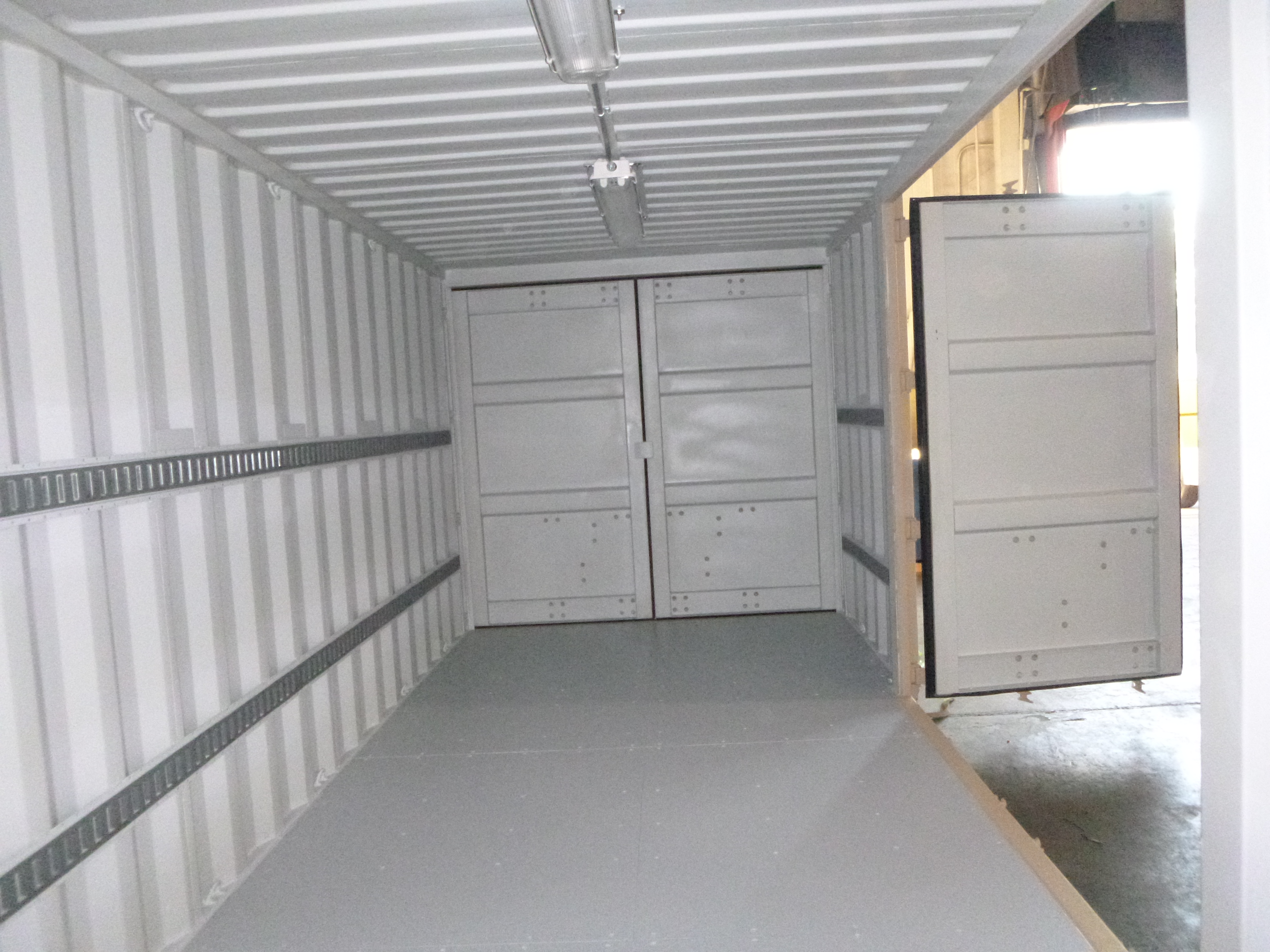

Type: IIIDouble Doors on Both Ends and Double Side Doors

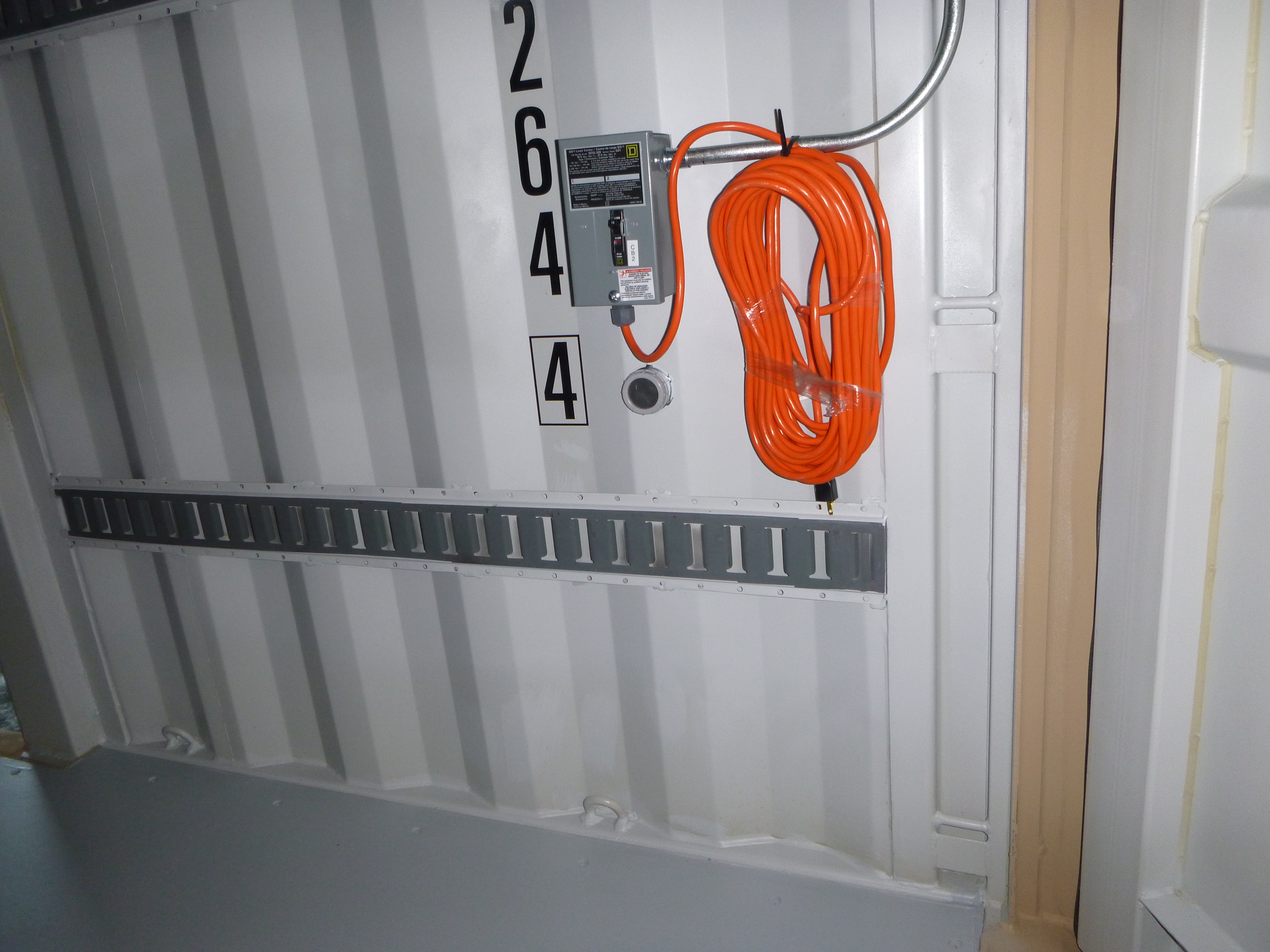

Outfitted with electric, wall track, and floor tie downs. Doors on both ends and one side.
Length | Height | Width | Door Opening | Side Door | ||||||
Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | Height | Width | |
Ft in | 19’ 10 1/2” | 19’ 4 3/16” | 8’ 0” | 7’ 4 3/16” | 8’ 0” | 7’ 5 1/16” | 6’ 11 21/32” | 7’ 8 1/2” | 7’ 21/64” | 7’ 8 11/64” |
Metric | 6,058 | 5,898 | 2,438 | 2,240 | 2,438 | 2,264 | 2,125 | 2,350 | 2,142 | 2,341 |
TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
Lbs | 5,380 | 47,530 | 52,910 | 1,086 Cu. Ft. |
Kgs | 2,440 | 21,559 | 24,000 | 30.7 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
