Enhanced Container Delivery System (ECDS)
Part Number: SBECDS

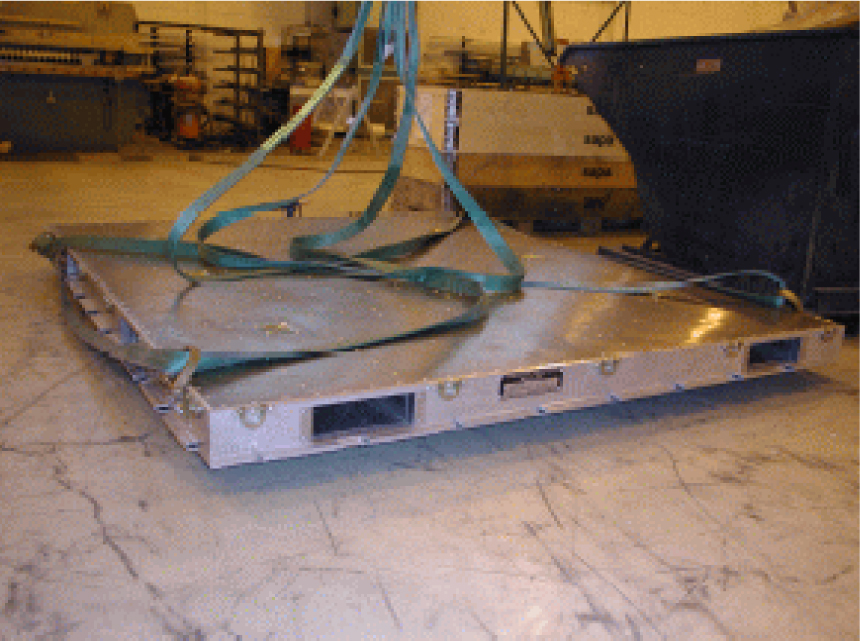

The ECDS Pallet is sling loadable and designed for suspended air drops. It can be air dropped by either a C-130 or C-17 military cargo aircraft.
SBECDS BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Four-way forklift pockets provided are compatible with Army Rough Terrain & USAF All Terrain 10K forklifts.

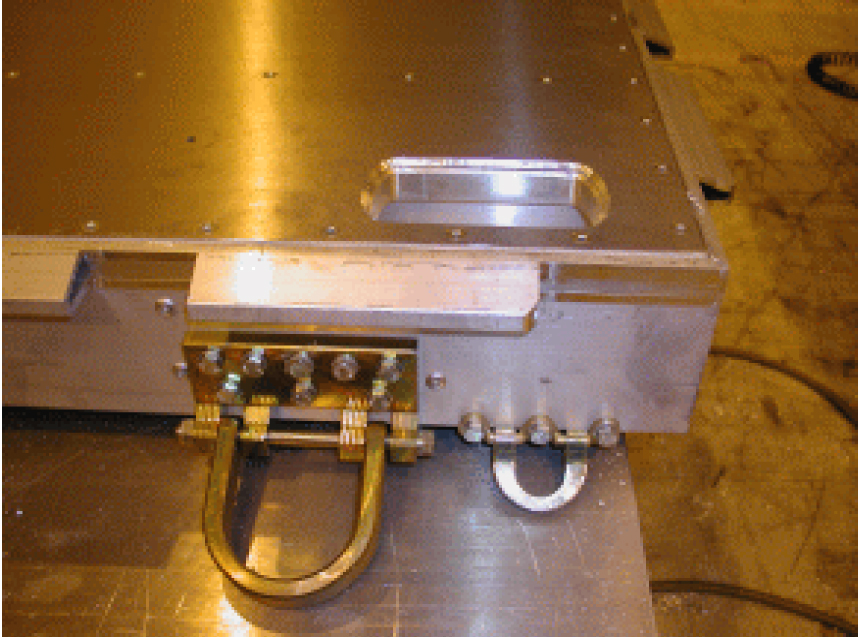

- Four Heavy Duty D-Rings are proved for sling load by rotary wing aircrafts (KPP) or for platform suspended airdrops at maximum rigged weight.
- Twenty two (22) cargo tie down provisions compatible with existing 436L cargo nets located on side rails.
- Eight additional inboard tie downs are located flush in the deck of the platform.
- The Sea Box's design is compatible with the Army’s LHS and Palletized Loading System (PLS) and LHS.
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 9' | 5 3/4" | 7' 4" | |||||
| Metric | 2,743 | 146 | 2,235 | |||||
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 600 | 9,400 | 10,000 | |
| Kgs | 272 | 4,264 | 4,636 |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
