Relocatable Simulation Shelter - 94’ Wide
Part Number: SB3897.RSS.12S
RSS

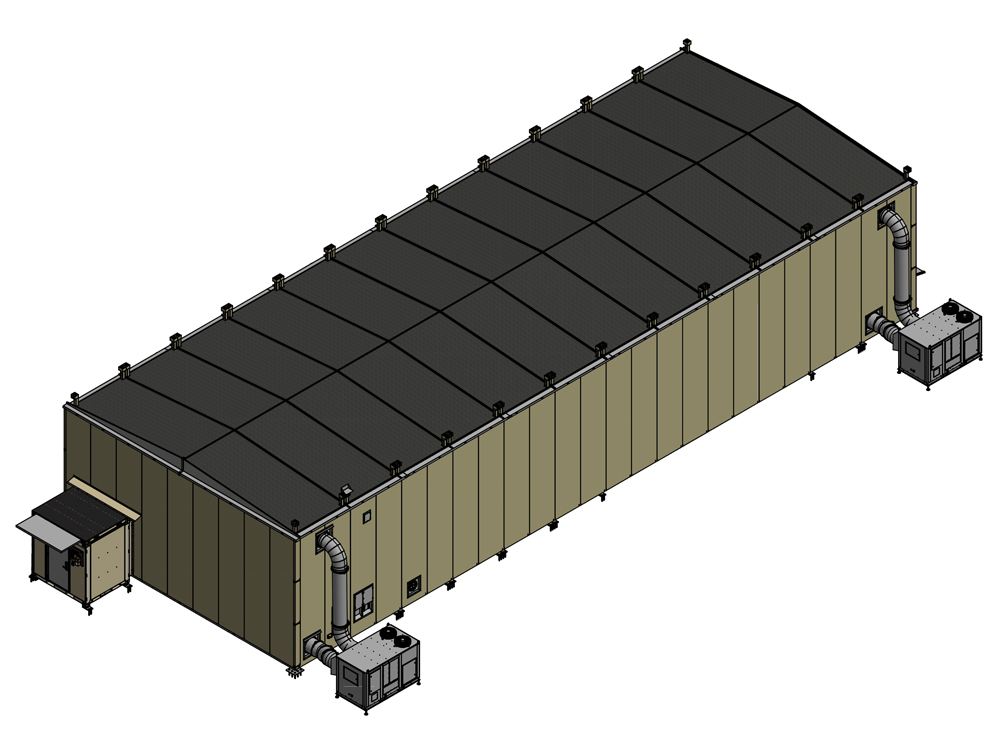

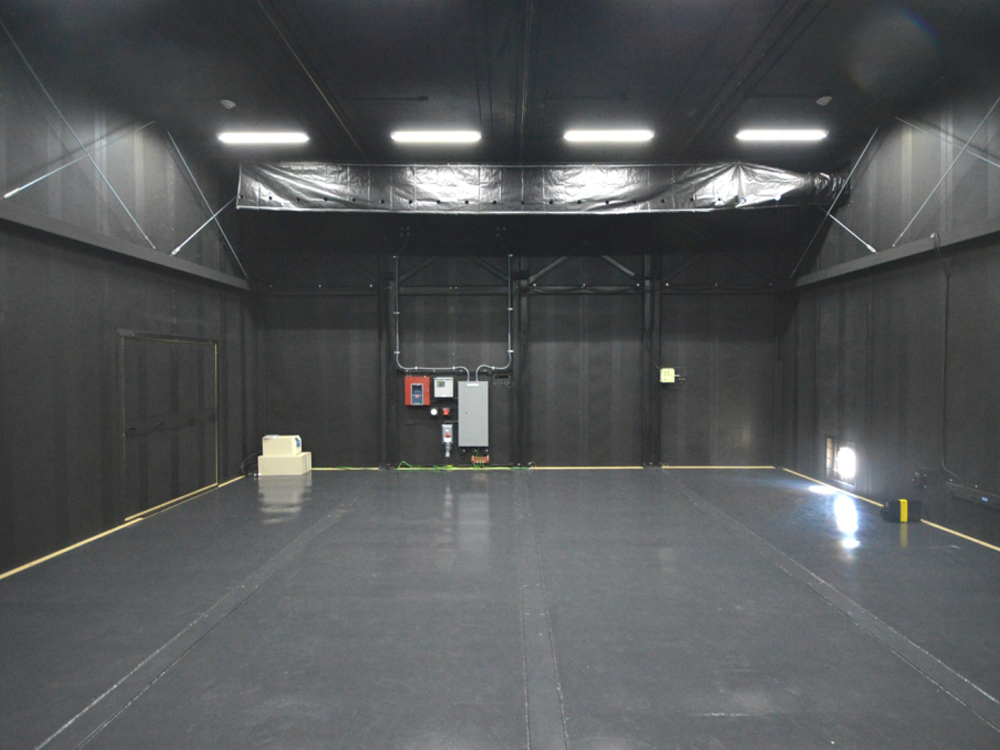

SEA BOX's Relocatable Simulation Shelter (RSS) provides a durable and efficient shelter to support simulator operations. Currently in use at Air National Guard locations around the country, the Sea Box Relocatable Simulation Shelter (RSS) features sturdy steel frames and insulated steel panel walls to create a secure training environment. Priced at a fraction of the cost of permanent structures, the RSS can be erected in a matter of days and is easily disassembled, packed out, and ready for deployment worldwide. This structure can be customized for your needs and is ideal for commercial use as well. U.S. Patent No. 9,108,758
SB3897.RSS.12S Brochure
- Shelter can be set-up and ready for use in three weeks on an approved concrete pad
- Walls and ceiling panels consist of a galvanized steel exterior and perforated steel interior with a core made of non-combustible structural mineral wool for superior insulation and noise absorption.
- Wall panel design is water resistant and durable for relocation, pack up and shipping.
- Insulation R value of 21.
- Shelter comes equipped with two 7.5-10 ton PLC controlled ECUs
- Plug and Play electric. LED interior and exterior lighting.
- Electrical system includes wiring for power monitors, phase sequencing, utility power, and Emergency
- Power-Off (EPO) switches.
- Main power 200A, 3-phase panel, 50/60Hz.
- Dedicated simulator power 200A, 3-phase.
- Fire, smoke, and heat detection system in accordance with NFPA regulations.
- Communications Interface Panel
- Conforms to Security Standards in DoDM 5200.01-V3 (Open Storage)
- Wind load rating 200 mph. Snow load rating 80 psf.
- Anti-static carpet tile, rubber tile or polyurea floor coating throughout
- Custom sizes and configurations available to accommodate equipment
- Security Vestibule
- Set-up Services
- Interior structure to create second floor/mezzanine
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 34' 1" | 33’ 1” | 18’ 7-3/4” | 16' | 91’ 11-7/16” | 90’ 11-7/16” 4 | ||
| Metric | 10,391 | 10,083 | 5,682 | 4,876 | 28,027 | 22,722 | ||
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 48,144.52 Cu. Ft. | |||
| Kgs | 1,363.30 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
