Security Hallway for Connecting Relocatable Simulation Shelters
Part Number: SB3897.RSS.SHALL

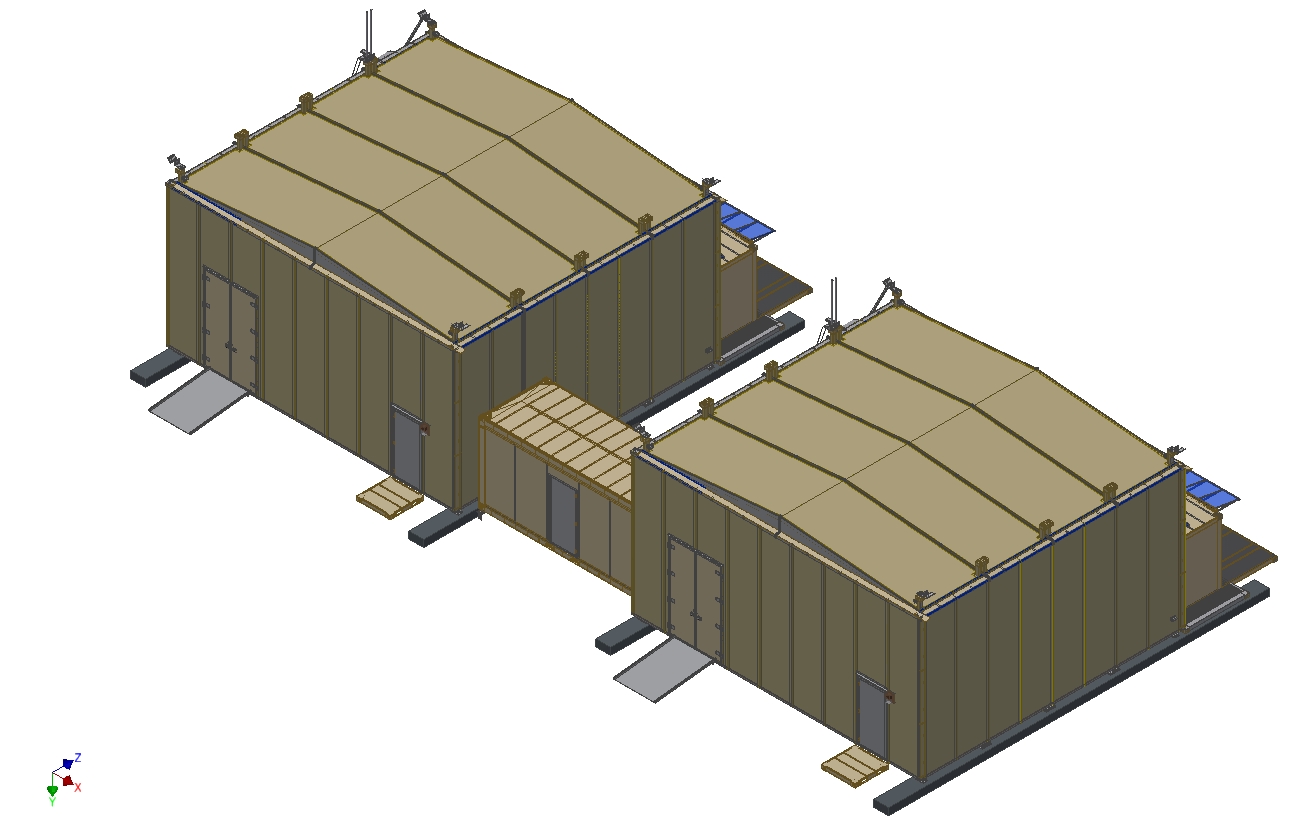

Hallway to connect Relocatable Simulation Shelters. Doorways on each end with locking hardware to allow only secure access between the two shelters. Works in conjunction with Sea Box Part Nos. SB3897.RSS.4S, SB3897.RSS.6S, SB3897.RSS.8S, SB3897.RSS.12S
SB3897.RSS.SHALL Brochure
- Steel Frame and Insulated, Smooth Wall Panels
- 20'x 9.5' x 8' Hallway
- Emergency Egress Door on One Side
- FF-L-2740B approved locks
- Two Butting Kits Connect Hallway to RSS and Create a Weather-tight Seal
- Four 200mph Rated Deck Mount Plates & Anchor Kits
- Two LED Lights with Occupancy Sensor
- Includes two RSS Wall Panels with Doorways to Connect Shelters
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19' 10 1/2" | 19' 10 1/2" | 9' 6" | 8' 1" | 8 | 7' 1 5/8" | ||
| Metric | 6,058 | 6,058 | 2,896 | 2,467 | 2,438 | 2,175 | ||
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 5,700 lbs | |||
| Kgs | 2,586 kgs |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
