Standard Features

  • Corrugated steel sides, roof + swing doors on both sides
  • Heavy duty steel floor
  • (4) way fork lift pockets
  • Vents, (2) each
  • Cord plug in lights
  • Cord plug in outlets
  • Interior fluorescent lights

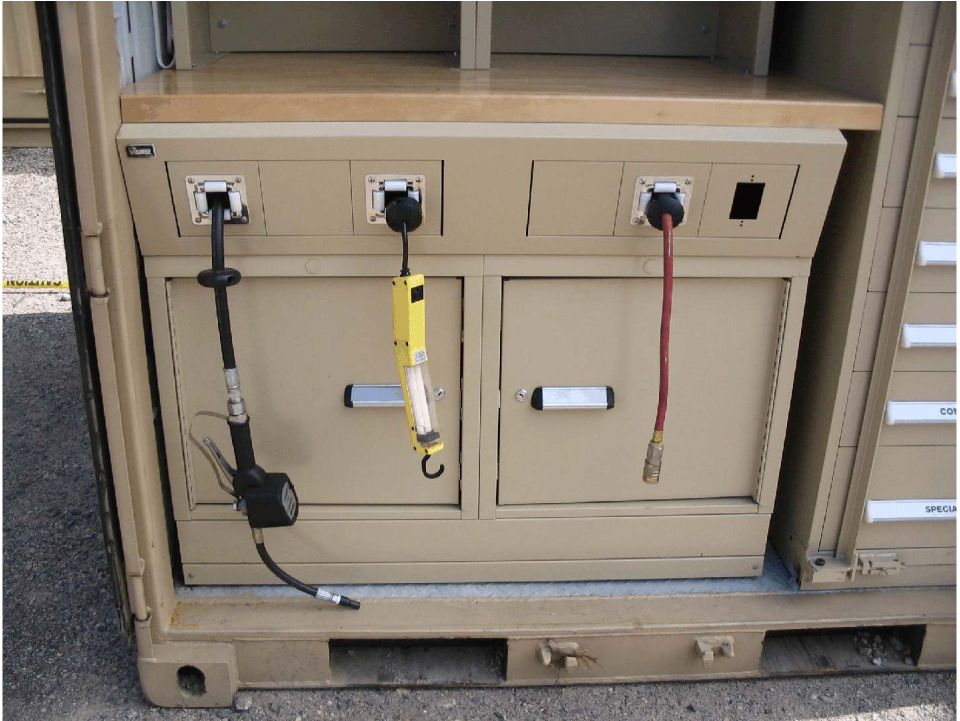

  • Stanley-Vidmar workshop cabinets configured for motor pool support (retractable oil, air, and electrical lines)
  • Additional Stanley-Vidmar cabinets for parts and storage space for oil drum, fluid pumps, generator, etc.
  • Modular cabinet design for maximum flexibility and interchangeability
  • 400lb. capacity drawers

Optional Features

  • Connecting couplers, (3) per Tricon
  • Connecting coupler storage bracket (1) each
  • Ext. Paint Color Choice of OD Green or Desert Tan

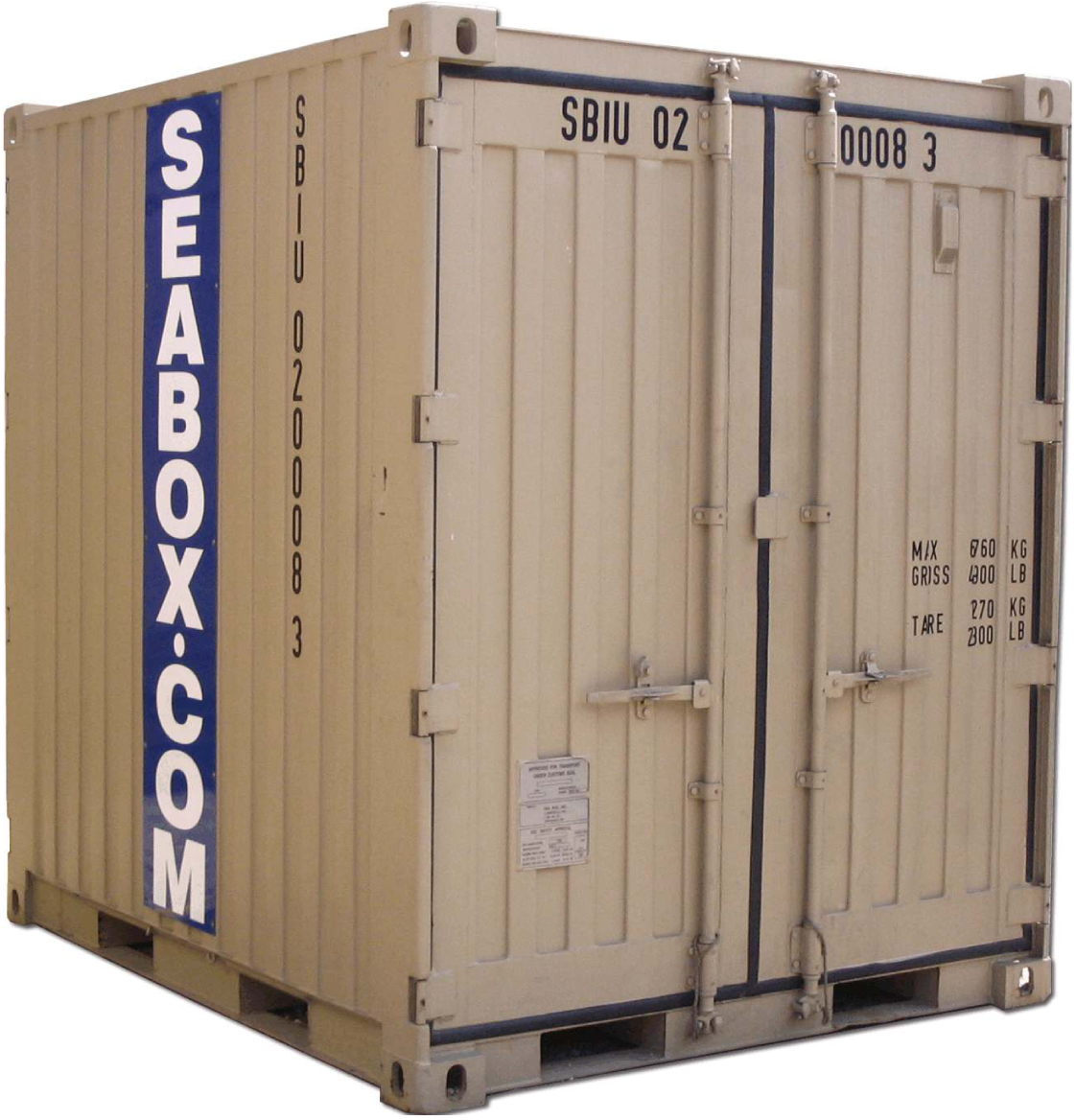

Container Specs

ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD

Length Height Width Door Opening
Exterior Interior Exterior Interior Exterior Interior Height Width
Ft in 6’ 5 9/16” 6’ 3 25/64” 8’ 0” 7’ 5 9/64” 8’ 0” 7’ 5 17/32” 7’ 1 43/64” 6’ 1 25/32”
Metric 1970.09 1914.92 2438.4 2264.17 2438.4 2438.4 2176.07 1874.04
TARE WEIGHT PAYLOAD GROSS WEIGHT CUBIC CAPACITY
Lbs
Kgs

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
